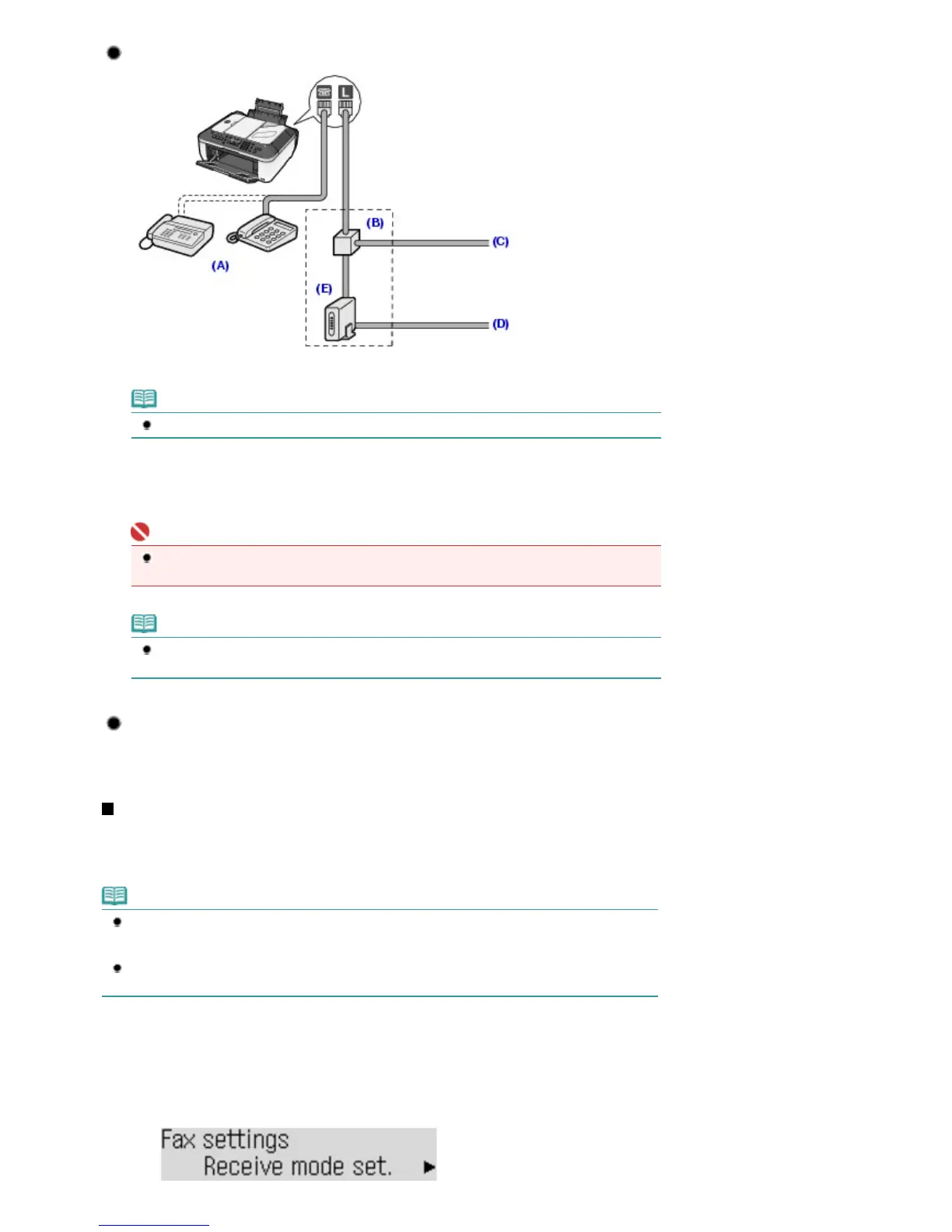

Connecting to an xDSL
(A)
Telephone or answering machine
Note
Before connecting a telephone or answering machine, remove the Telephone connector cap.
(B) Splitter
(C) Digital Subscriber Line
(D) Computer
(E) xDSL modem (splitter may be built-in to the modem)
Important
Do not branch the telephone line before the splitter (wall side). And also, do not connect
splitters in parallel. The machine may not be able to operate properly.
Note
When connecting to the xDSL line, select the same line type as you are subscribing in
Telephone line type.
Connecting to an ISDN Line
For details on ISDN (Integrated Service Digital Network) connection and settings, refer to the
manuals supplied with your terminal adapter or dial-up router.
Setting the Telephone Line Type
Before using your machine, make sure you set the correct telephone line type for your telephone line. If
you are unsure of your telephone line type, contact your telephone company. For xDSL or ISDN
connections, contact the telephone company or service provider to confirm your line type.
Note
Rotary pulse is not supported depending on the selected country in Country select displayed when
you start the machine for the first time after purchase. The Telephone line type menu will not
appear in such country.
You can print the User's data list to check the current setting.
For details, refer to the on-screen manual:
dvanced Guide
.
1.
Display the Telephone line type screen.
(1)
Press the
FAX button, and press the
Menu
button.
The Fax settings menu will appear.
