Overview of the Machine
> Main Components
Main Components

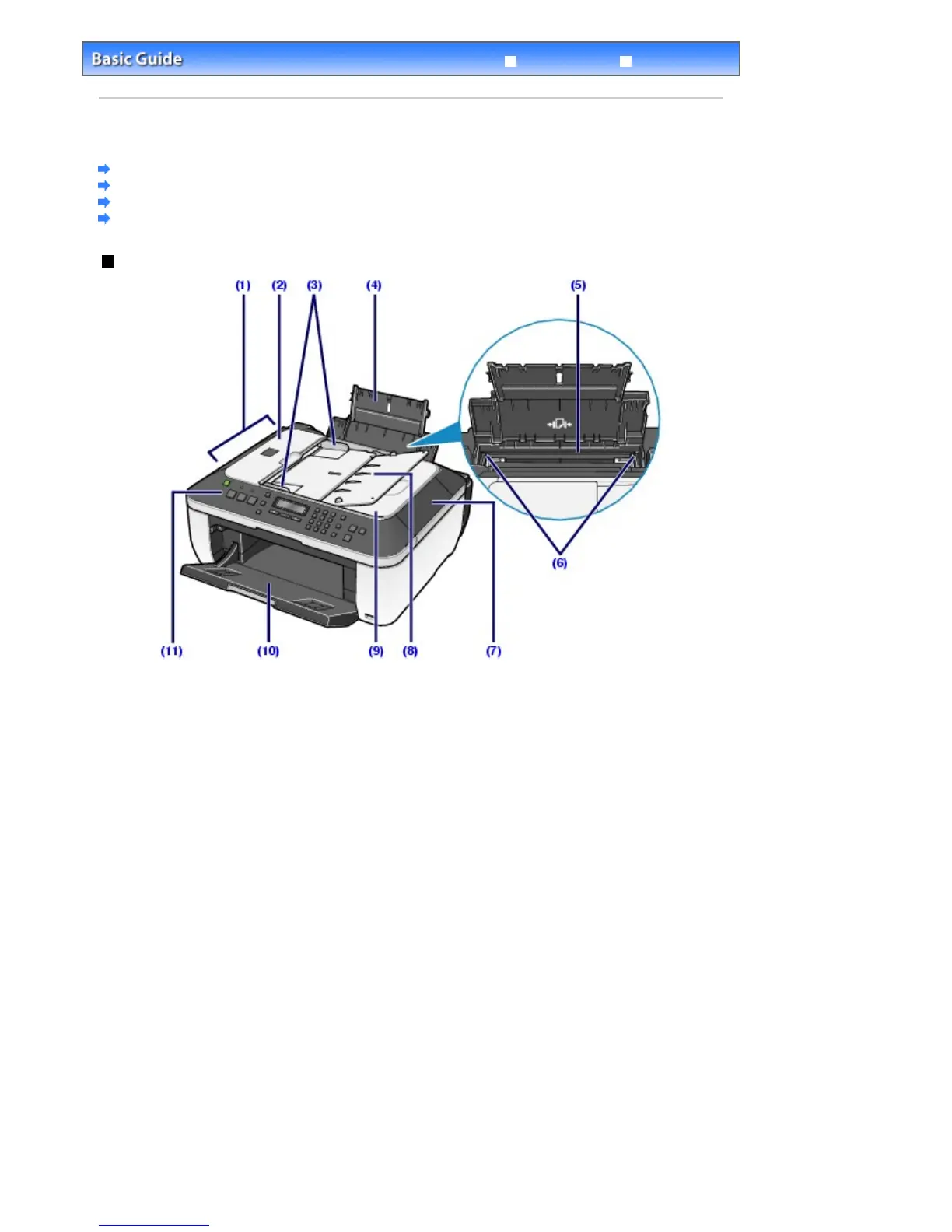

Front View
Rear View
Inside View
Operation Panel
Front View
(1)
ADF (Auto Document Feeder)
Load a document to copy, scan, or fax. The document loaded in the Document Tray are scanned
automatically one sheet at a time.
See
Loading a Document in the ADF
.
(2)
Document Feeder Cover
Open when clearing jammed documents.
(3)
Document Guides
djust these guides to match the width of document in the ADF.
(4)
Paper Support
Supports paper loaded in the Rear Tray. Open it to load paper.
(5)
Rear Tray
Load various sizes or types of paper which you can use on the machine. Two or more sheets of the same
size and type of paper can be loaded at the same time, and fed automatically one sheet at a time.
See
Loading Paper
.
(6)
Paper Guides
Slide to align with both sides of the paper stack.
(7)
Document Cover
Open to load an original on the Platen Glass.
(8)
Document Tray
Open to load a document in the ADF. You can load two or more sheets of document of the same size and
thickness. Load the document with the side you want to scan facing up.
(9)
Document Output Slot
Documents scanned from the Document Tray are delivered here.
(10)
Paper Output Tray
Opens automatically when printing or copying starts and printed papers are ejected.
