136

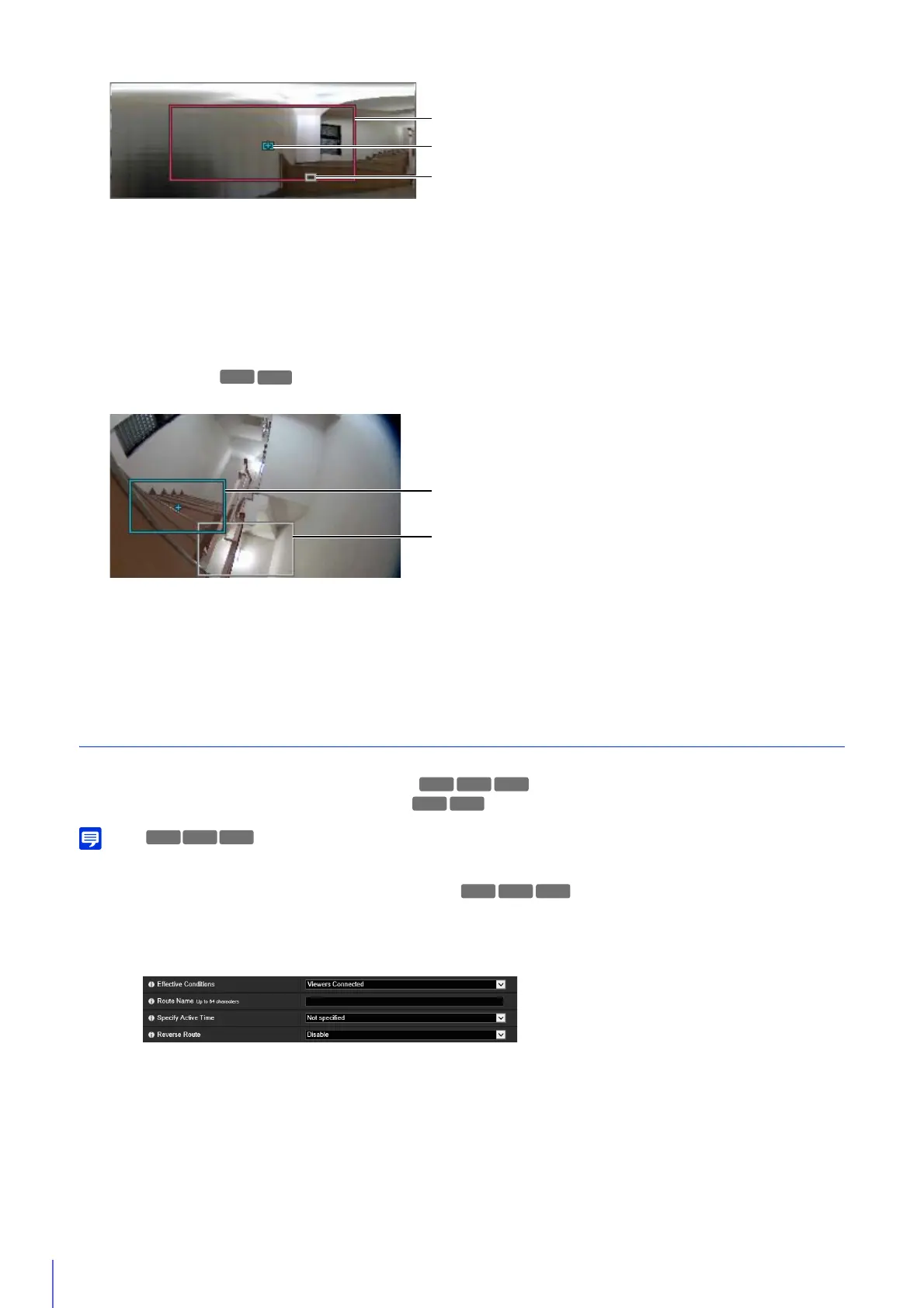

(a) Pan/Tilt Preview Frame (Red Frame)
Displays the vertical and horizontal range the camera can move. Displayed when the restricted view is set
(P. 127).
(b) Preview Frame (Blue Frame)
Indicates the current trim position in the video display area.
(c) Preset Preview Frame (White Frame)
Indicates the preset/home position that is currently selected.
(6) Digital PTZ Panel
Displays the full video obtained by the camera when starting [Preset Tour].
(b) Preview Frame (Blue Frame)
Indicates the current camera angle in the video display area
(c) Preset Preview Frame (White Frame)
Indicates the preset/home position that is currently selected.
Tour Route Settings
The number of tour routes you can register and the number of presets that can be toured per route are as follows.
• Maximum 5 routes, maximum 64 presets per route.
• Maximum 1 route, maximum 20 presets per route.
If the effective conditions or active times of the registered tour routes conflict, the routes listed higher in the [Route List] take precedence.
[Effective Conditions]
Select the conditions to preform a preset tour.
[Not used]
Preset tour is not performed.
[Viewers Connected]
Preset tour is performed when a Viewer is connected to the camera.
H652
H651
R13 R12
M50
H651
M50R12
1
Select the tour route to configure from [Route List].
2
Specify Settings for Tour Route Names and Usage
R13 R12 M50
To Next Page
