7
IMPORTANT: The IDF Maximum Fan Speed (MAXIMUM
IDF S PEED) RPM must not produce a supply CFM that is
lower than the minimum CFM allowed in the product data for
heating and cooling.
Condenser Fans and Motors
Condenser fans and motors are factory set.
Return--Air Filters
Check that correct filters are installed in filter tracks (see Physical
Data table in unit Product Data). Do not operate unit without
return-air filters. Determine the filter change run time (DIRTY
FILTER TIME) to be set in the quick setup configurations menu.
Outdoor--Air Inlet Screens
Outdoor-air inlet screens must be in place before operating unit.
Accessory Installation
Check to make sure that all accessories including space thermostats
and sensors have been installed and wired as required by the
instructions and unit wiring diagrams.
INDOOR
BLOWER
ACCESS
PANEL
CONTROL BOX
AND GAS SECTION
ACCESS PANEL
INDOOR COIL
ACCESS PANEL
FILTER
ACCESS PANEL
UNIT BACKUNIT FRONT
a48---9937

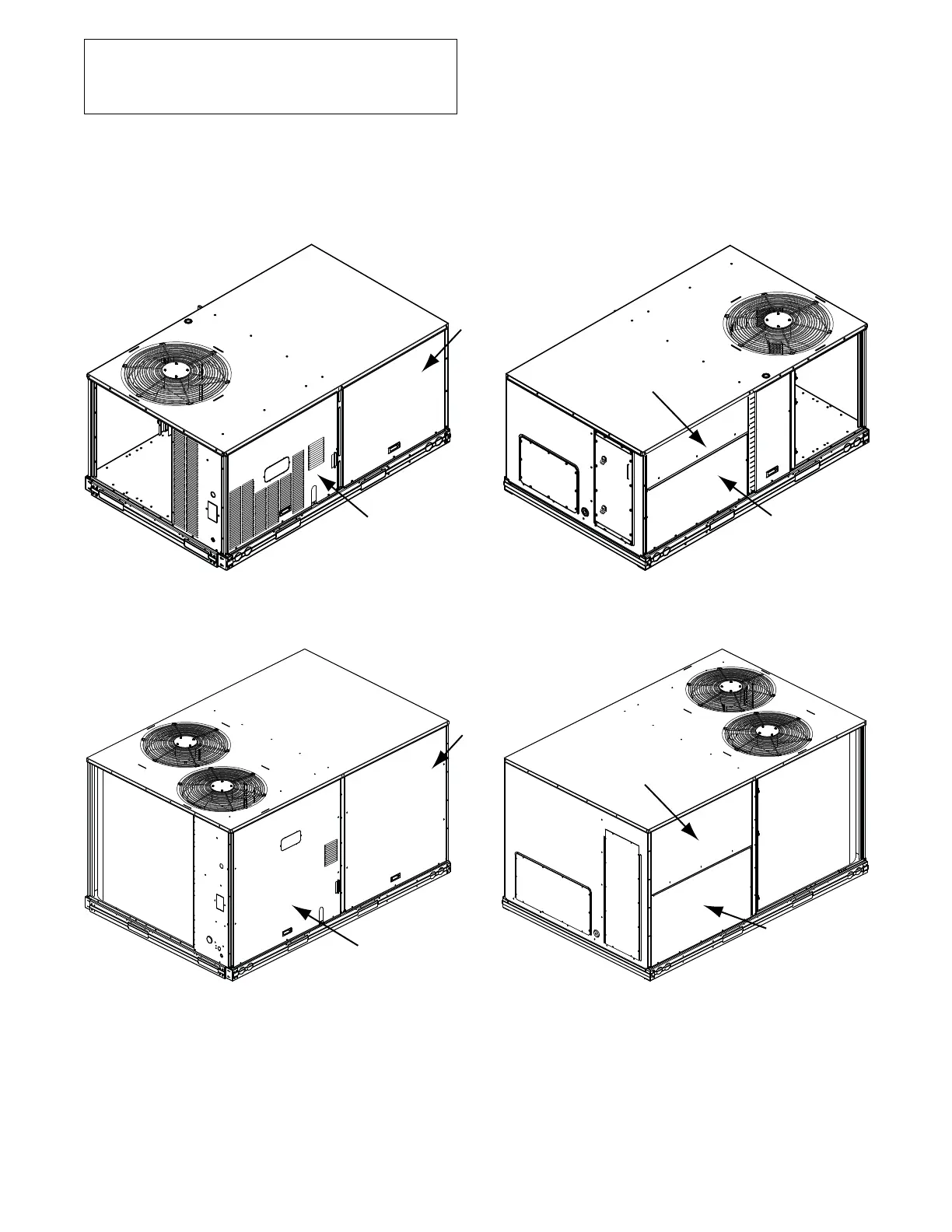

Fig. 5 -- 48/50LC Size 04 -- 06 Units, Panel and Filter Locations (48LC*04 Unit Shown)
INDOOR
BLOWER
ACCESS
PANEL
CONTROL BOX
AND GAS SECTION
ACCESS PANEL
INDOOR COIL
ACCESS PANEL
FILTER
ACCESS PANEL
UNIT BACKUNIT FRONT
C14321
Fig. 6 -- 48/50LC Size 07 Units, Panel and Filter Locations (48LC*07 Unit Shown)
