ε-8
Sampling Screen
13. Depending on what you want to do, perform one of the operations below.
To change the output frequency and try again:
Press 1(Yes) to return to the Output Frequency dialog box. Next, perform the operation
starting from step 9, above.
To change the output range of the waveform graph and try again:
Press 6(No) to return to the graph screen in step 6, above. Next, perform the operation
starting from step 7, above.
To change the function:
Press 6(No)J to return to the function registration screen in step 5, above. Next,
perform the operation starting from step 5, above.
To exit the procedure and return to the sampling mode selection screen:
Press 6(No). Next, press J twice.

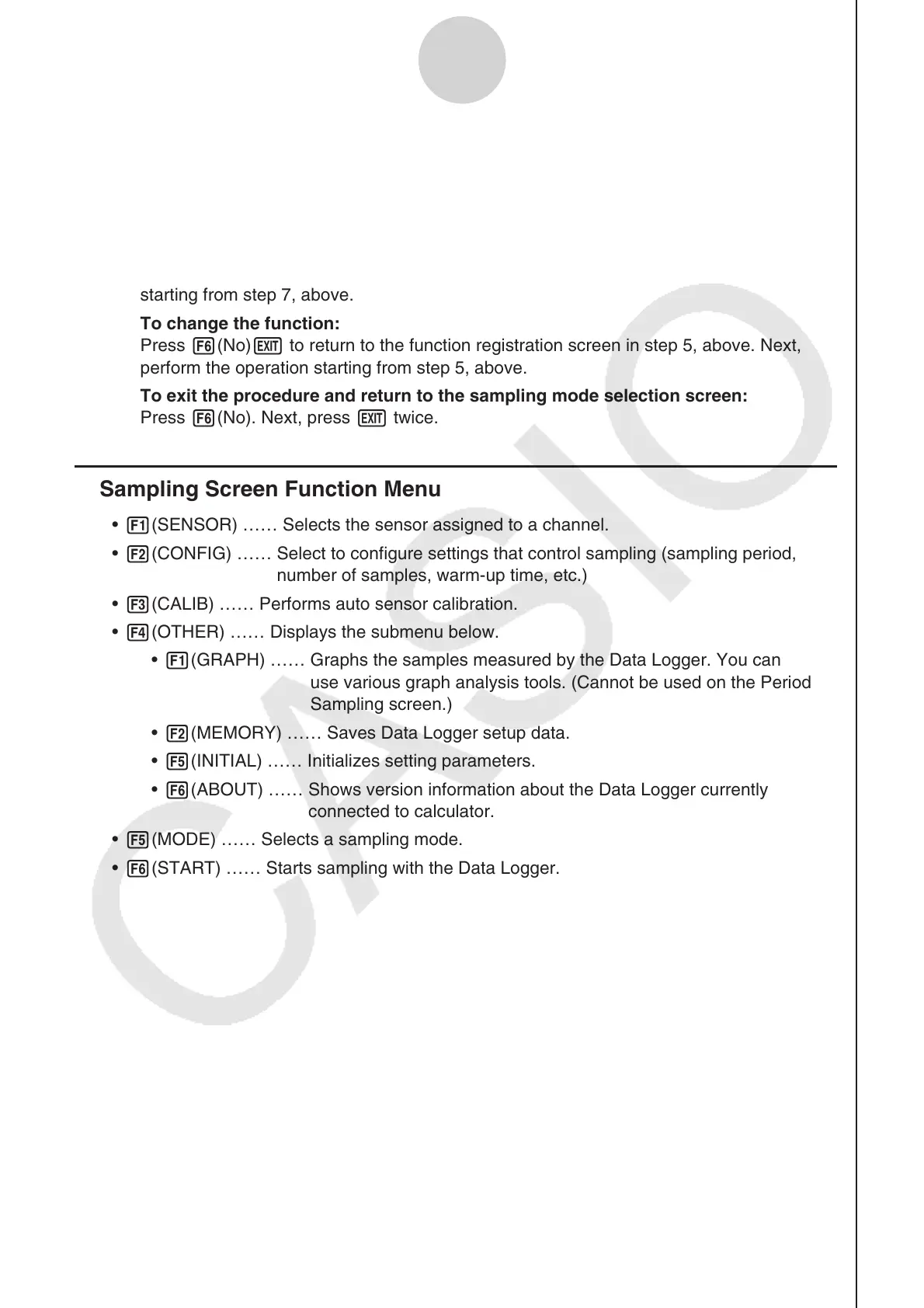

Sampling Screen Function Menu
1(SENSOR) …… Selects the sensor assigned to a channel.
2(CONFIG) …… Select to configure settings that control sampling (sampling period,
number of samples, warm-up time, etc.)
3(CALIB) …… Performs auto sensor calibration.
4(OTHER) …… Displays the submenu below.
1(GRAPH) …… Graphs the samples measured by the Data Logger. You can
use various graph analysis tools. (Cannot be used on the Period
Sampling screen.)
2(MEMORY) …… Saves Data Logger setup data.
5(INITIAL) …… Initializes setting parameters.
6(ABOUT) …… Shows version information about the Data Logger currently
connected to calculator.
5(MODE) …… Selects a sampling mode.
6(START) …… Starts sampling with the Data Logger.
k
•
•
•
•
•
•
•
•
•
•
