Chery A11 2003 User Manual

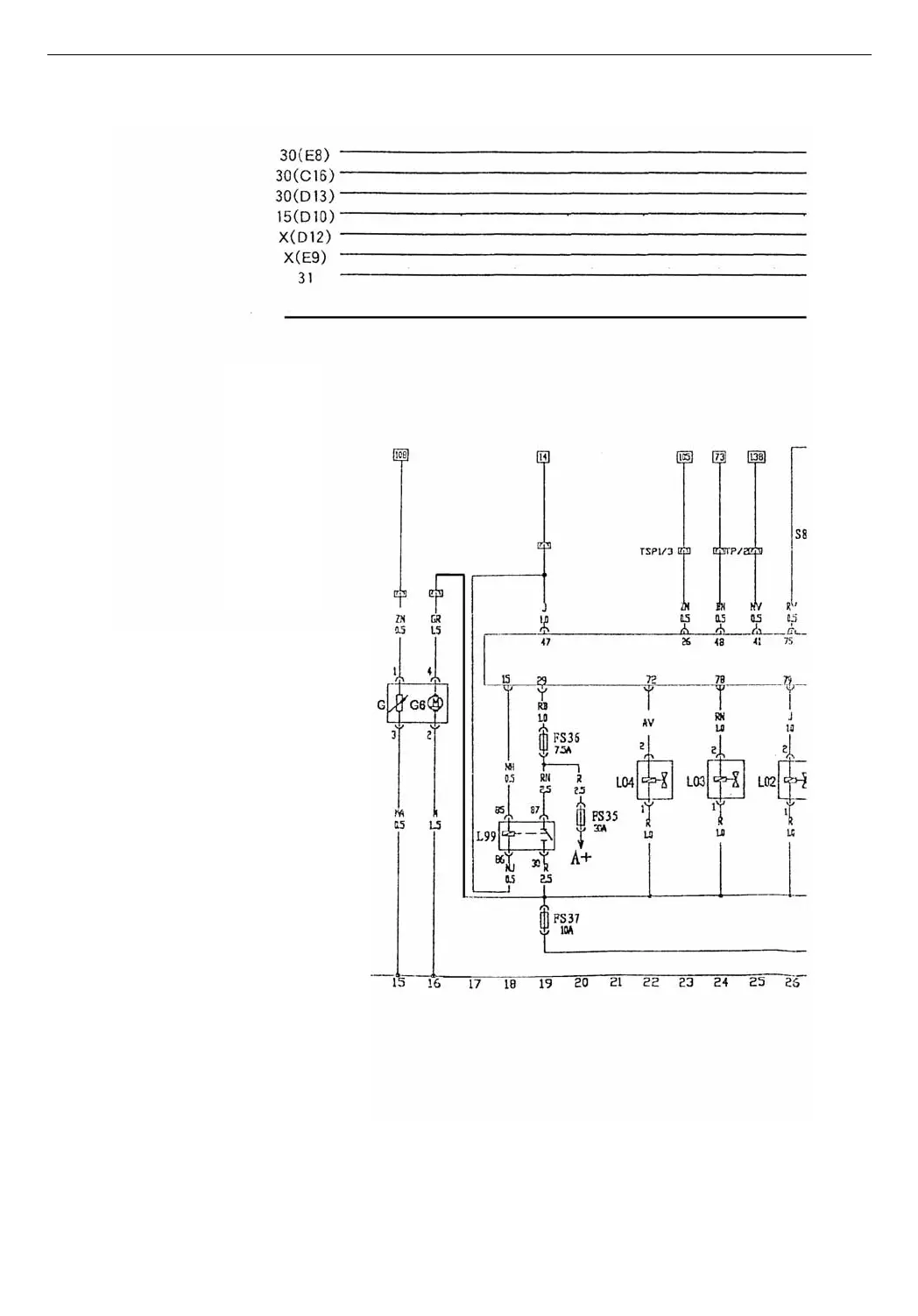

CIRCUIT
MPI Electronic Injection (Marelli)
B=White
N
=Black
R=Red
M=Brown
V=Green
A=Blue
H=Grey
Z=Purple
G=Yellow
J=Orange
F=Pink
J300 MPI Controller Unit
S81 Air Intake Pressure Sensor
G69 Air Intake Temperature Sensor
JS14 Water Temperature Sensor
S42 Knock Sensor
S12 Crankshaft Position Sensor
L99 Power Relay
FS 35 System Fuse
FS 36 ECU Power Fuse
FS 37 Oxygen Sensor Fuse
A+ Battery Positive
L01-04 Fuel Injector
L05 Ignition Coil
Q Spark Plug
S71 Oxygen Sensor
L07 Carbon Canister Solenoid
TK Diagnostic Connector
M27 Idle Step Motor
G Fuel Level Sensor
G6 Fuel Pump
○
4
Ground on Engine
TSPI Connector
TP Connector
TD Connector
N
ote: ECU CONNECTOR 1-(1-52 PIN)
ECU CONNECTOR 2-
(
53-80 PIN)
1
－2b－
