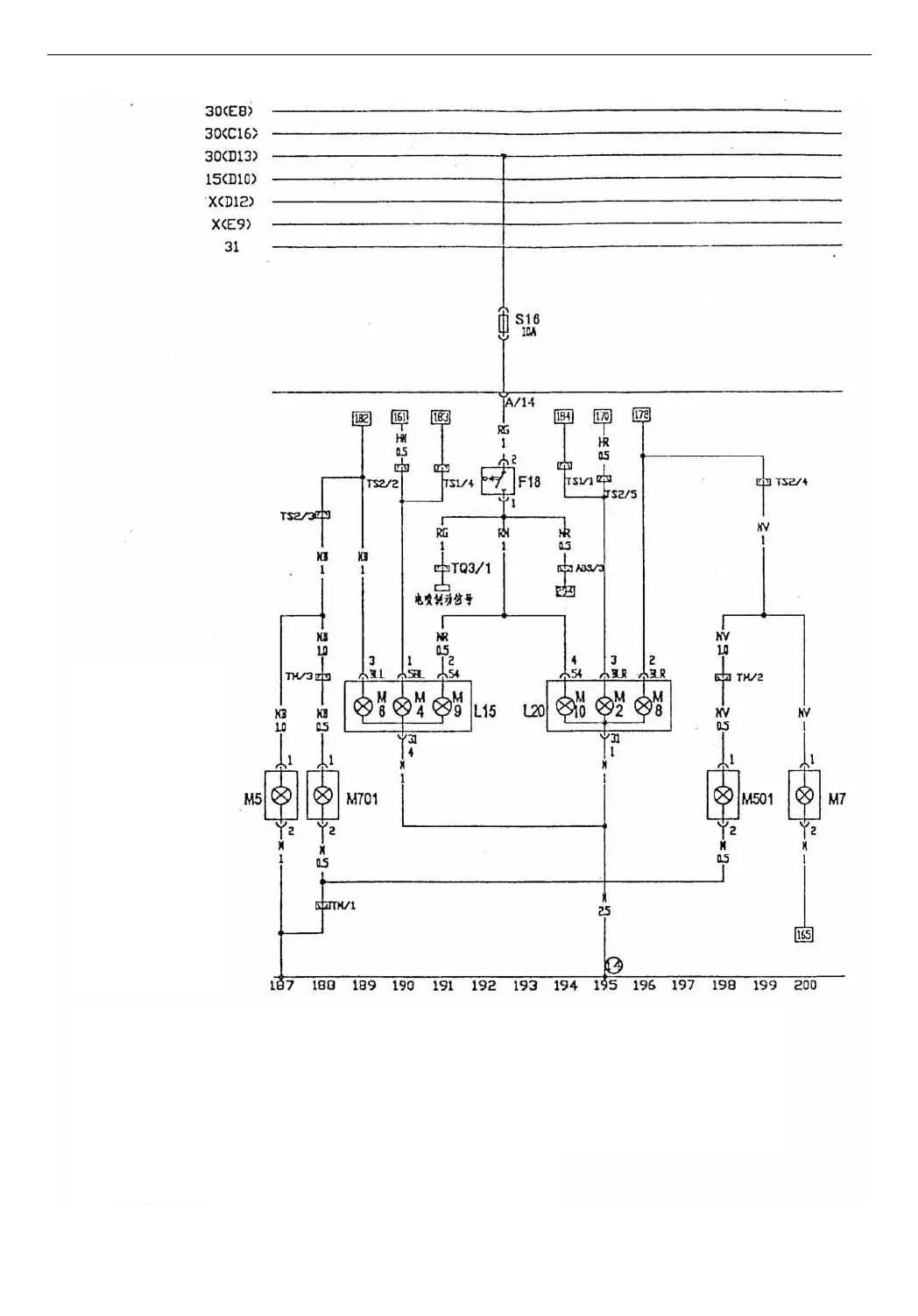

CIRCUIT
TAILLIGHT, SIDELIGHT, BRAKELIGHT
B=WHITE
N
=BLAC
K
R=RED
M=BROWN
V=GREEN
A=BLUE
H=GREY
Z=PURPLE
G=YELLOW
S20 Fuse 10A
S7 Fuse 10A
S8 Fuse 10A
T3 3 holes connector
T1 single hole connector
○
14 ground in rear light
F18 brake light switch M9 left brake light
L15 left taillight M10 right brake light
L20 right taillight M501 right side turn light
M2 rear right position light M701 left side turn light
M4 rear left position ligh
M5 front left turn light
M6 rear left turn light
M7 front right turn light
M
8
r
ea
r ri
g
h
t
tu
rn li
g
h
t
13
