CAC Gasoline Engine Maintenance And Servicing Manual
63
——Remove the studs of same length .
Assembly:
——submerge the push rod into the engine oil or pour engine
oil into the rod’s hole of the cylinder head and install the push
rod into the hole. The gap between push rod and hole is
0.035-0.055mm.
——screw in the studs into the threaded hole and tighten with
the nuts.
——install fuel pump with the manufacturer mark and part
number forward.
——Tighten the lock nuts with hands. tightening torque is
14-18Nm.
1.3 Carburetor.
basic parameters:
Pierburg 2E3 carburetor:
CAC478 CAC480
Larger throat pipe diameter
20/24 22/26
Mixing chamber size
28/30 28/30
Installation:
Use studs, nuts, and washers to connect the transition
flange with intake manifold. Screw the studs into intake
manifold and tighten them with nuts. tightening torque is
8-10Nm.
Adjustment: The carburetor adjustment mentioned in this
introduction only specifies the idle speed adjustment and CO
adjustment . The other adjustment and service should be done
by professionals.

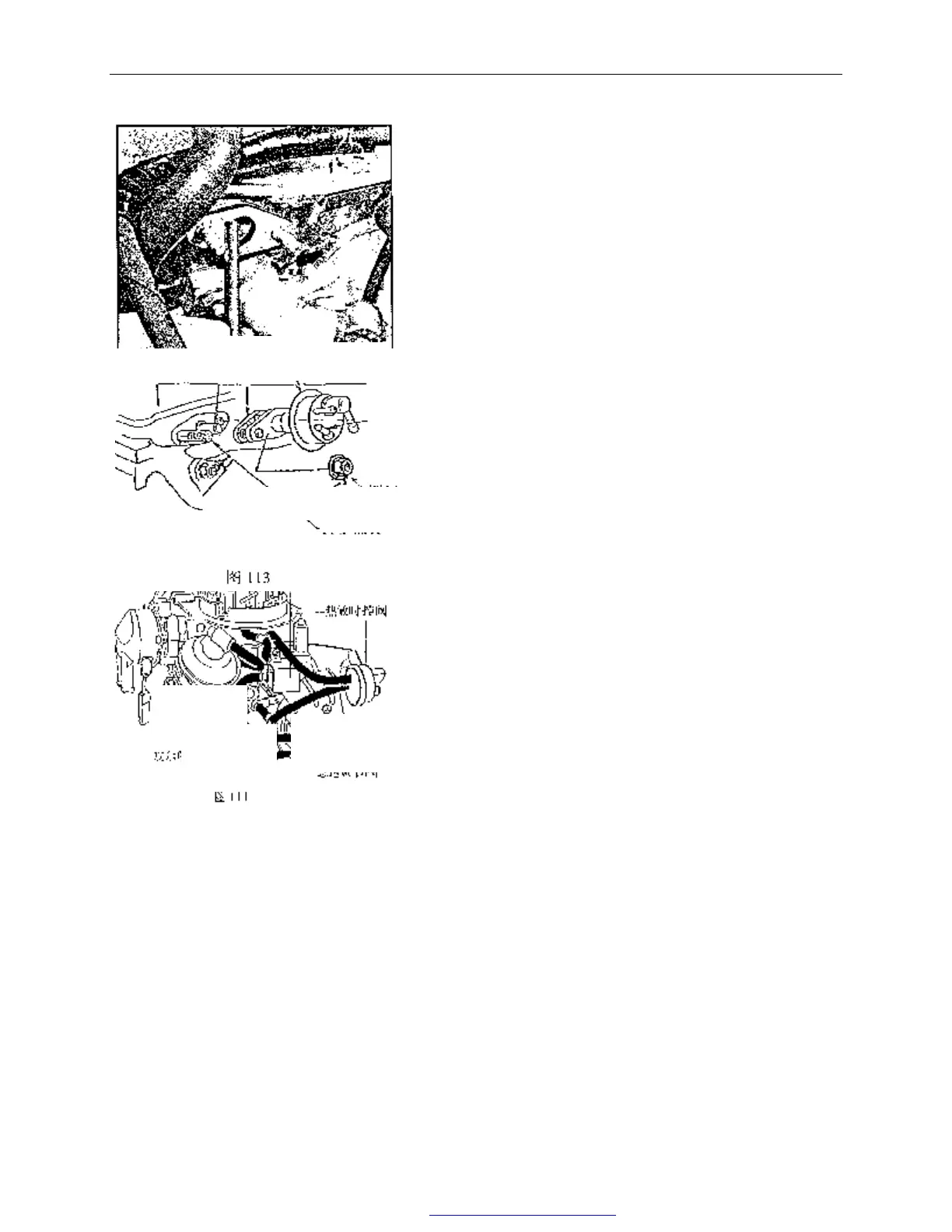

Fig.112
Push rod
sealing
gasket
gasoline pump
nut
2-M8 stud
Fig.113
Idle and overdrive cut-
off valve
Thermo time
control valve
Pierburg 2E3
carburetor
Idle regulator
valve
Fig. 114
