A11-2002 CIRCUIT MANUAL
12

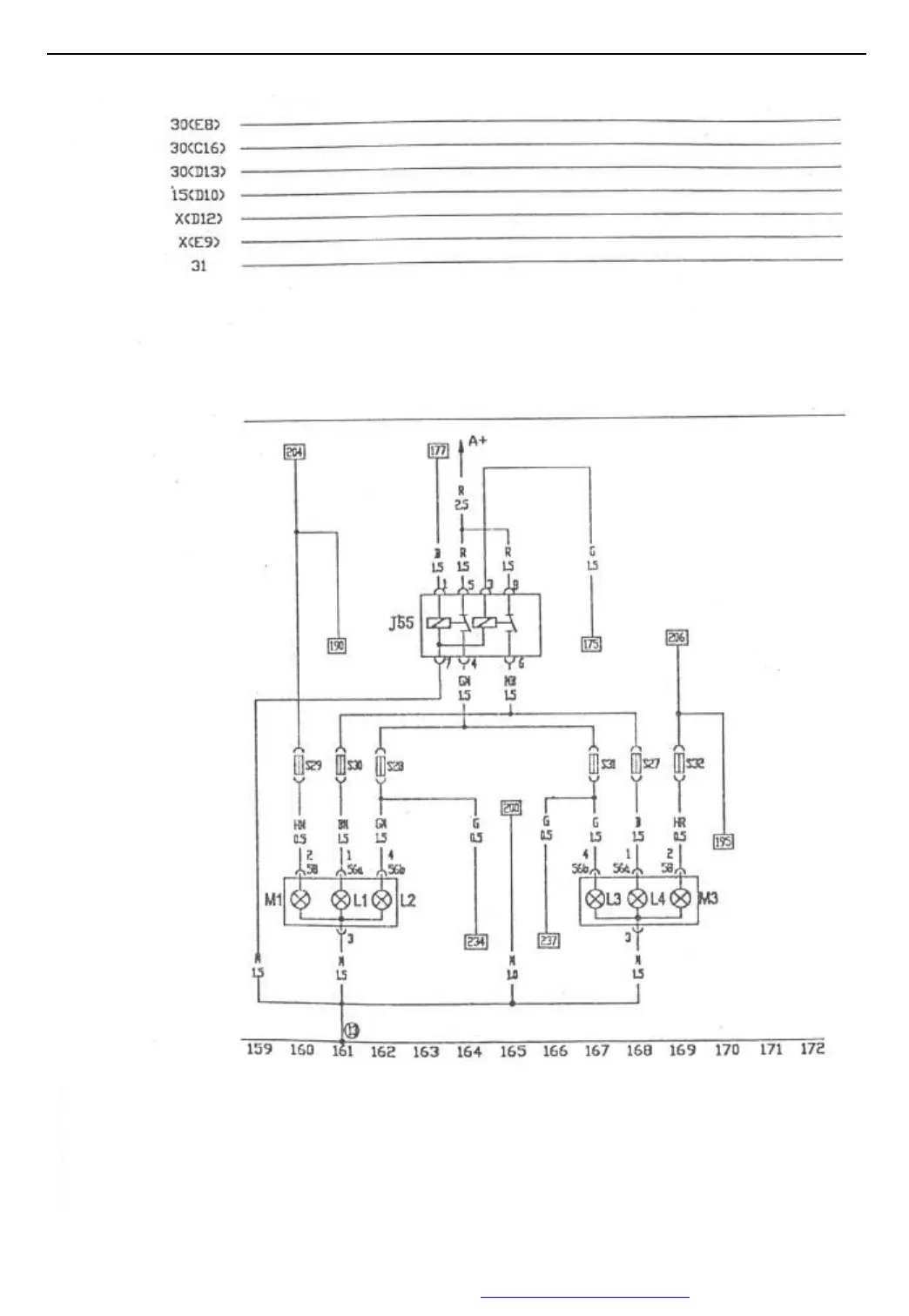

HEADLIGHT, FRONT POSITION LIGHT, LIGHT RELAY
B=WHITE
N=BLACK
R=RED
M=BROWN
V=GREEN
A=BLUE
H=GREY
Z=PURPLE
G=YELLOW
A+ Battery Positive J55 Light Relay
L1 Left High Beam Headlight S27 Right High Beam Headlight Fuse 10A
L2 Left Low Beam Headlight S28 Left Low Beam Headlight Fuse 10A
L3 Right Low Beam Headlight S29 Left Position Light Fuse 10A
L4 Right High Beam Headlight S30 Left High Beam Headlight Fuse 10A
M1 Left Position Light S31 Right Low Beam Headlight Fuse 10A
M3 Right Position Light S32 Right Position Light Fuse 10A
(13) Ground, In headlight wiring harness
