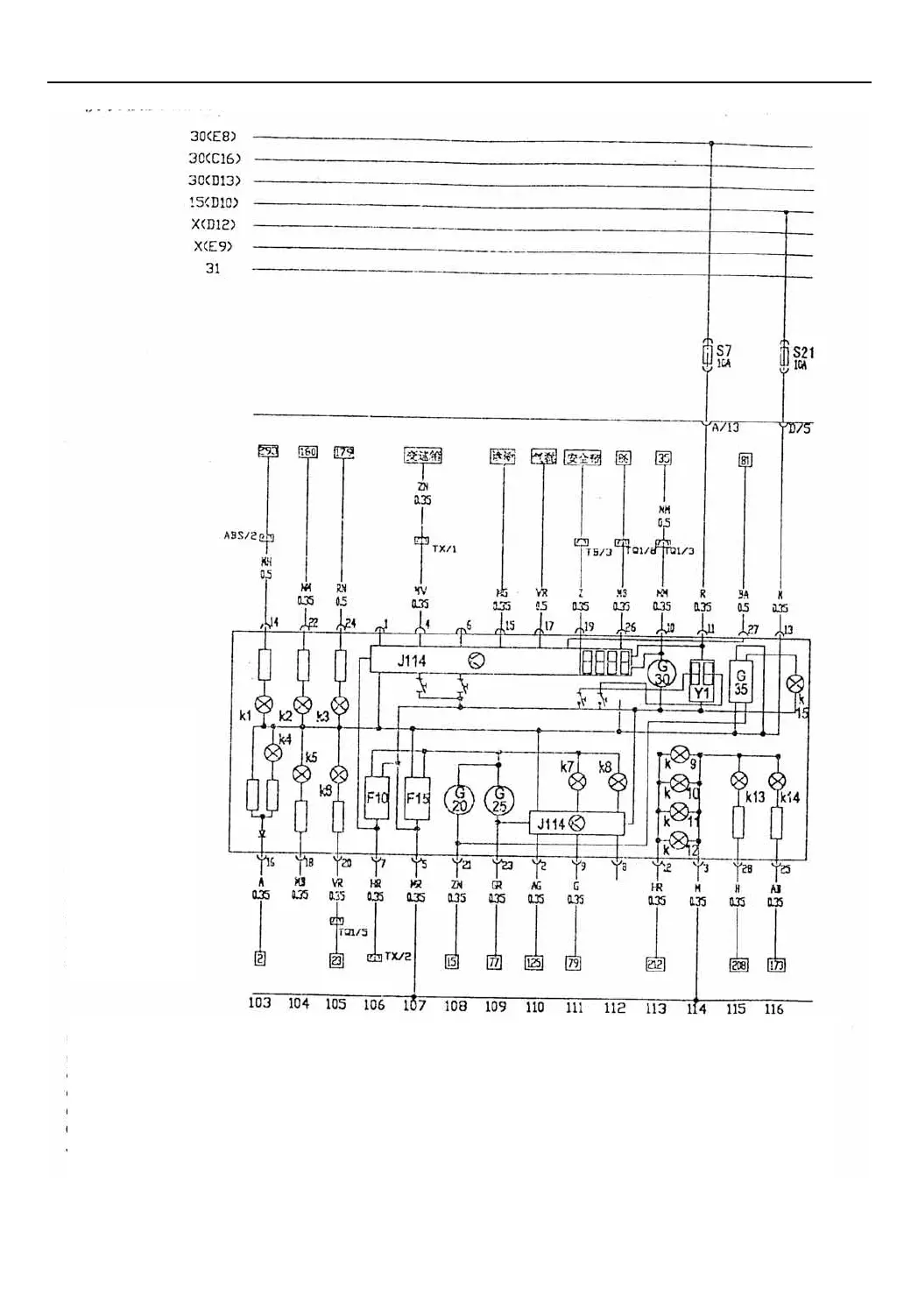

CIRCUIT
INSTRUMENT PANEL AND MFA
B=WHITE
N
=BLAC
K
R=RED
M=BROWN
V=GREEN
A=BLUE
H=GREY
Z=PURPLE
G=YELLOW
F10 multi way converter K3 right turn indicator Y1 digital cloc
k
F15 voltage stabilizer K4 engine charging indicator T1 single hole connector
G20 fuel sensor K5 manual brake warning light
G25 coolant temperature sensor K6 engine self-check indicator
G30 RPM sensor K7 oil pressure warning light
G35 preset fluid level compare meter K8 engine overheat warning light
J114 control unit K9/K10/K11/K12 instrument panel illumination light
J119 multi function display K13 low beam headlight, position warning light
K1 ABS warning indicator K14 high beam warning light
K2 left turn indicator K15 fuel warning light
