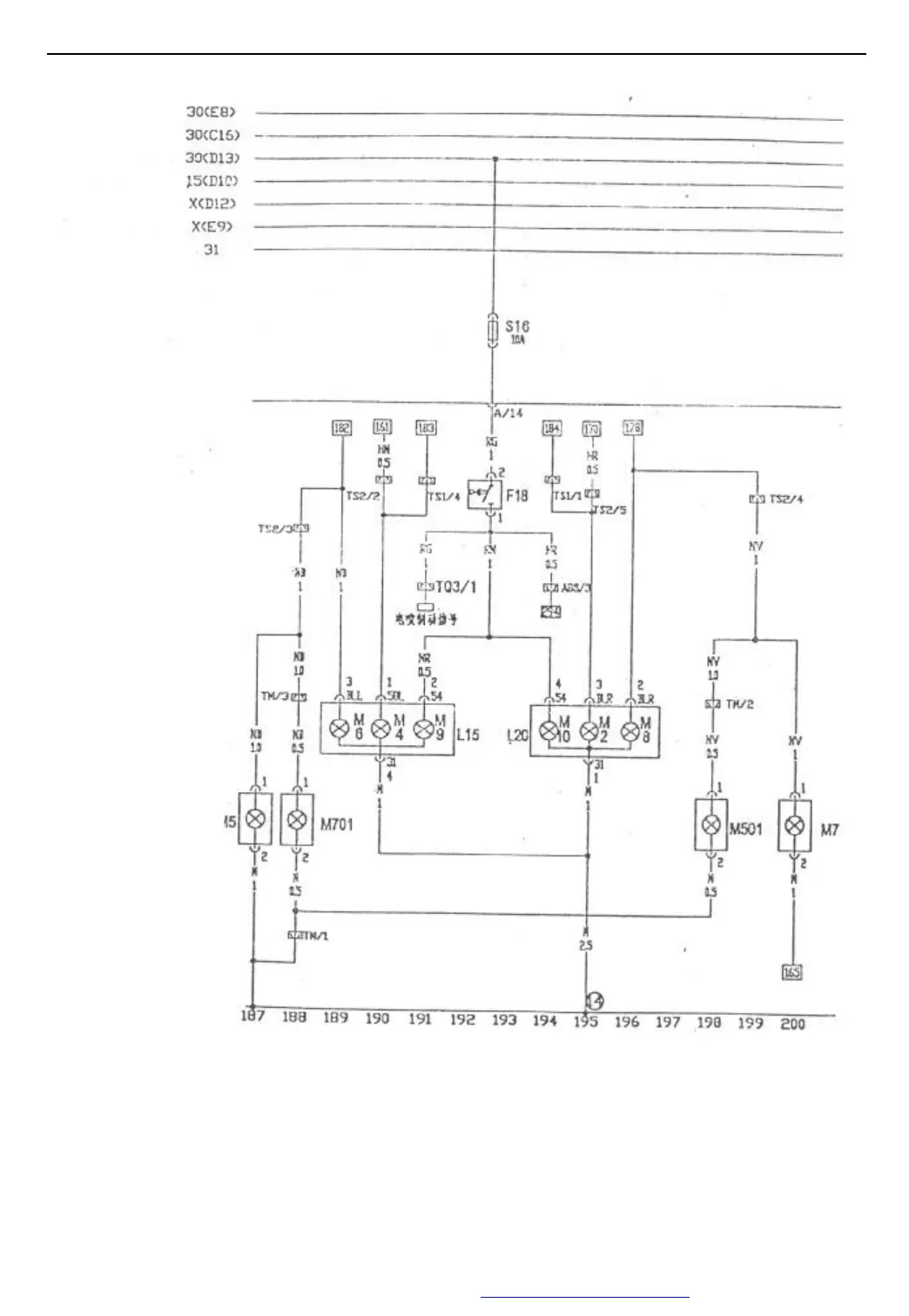

A11-2002 CIRCUIT MANUAL
14
TAILLIGHT, SIDELIGHT, BRAKELIGHT
B=WHITE
N=BLACK
R=RED
M=BROWN
V=GREEN
A=BLUE
H=GREY
Z=PURPLE
G=YELLOW
F18 brake light switch M9 left brake light T3 3 holes connector
L15 left taillight M10 right brake light T1 single hole connector
L20 right taillight M501 right side turn light (14) Ground in rear light
M2 rear right position light M701 left side turn light
M4 rear left position light S20 Fuse 10A
M5 front left turn light S7 Fuse 10A
M6 rear left turn light S8 Fuse 10A
M7 front right turn light
