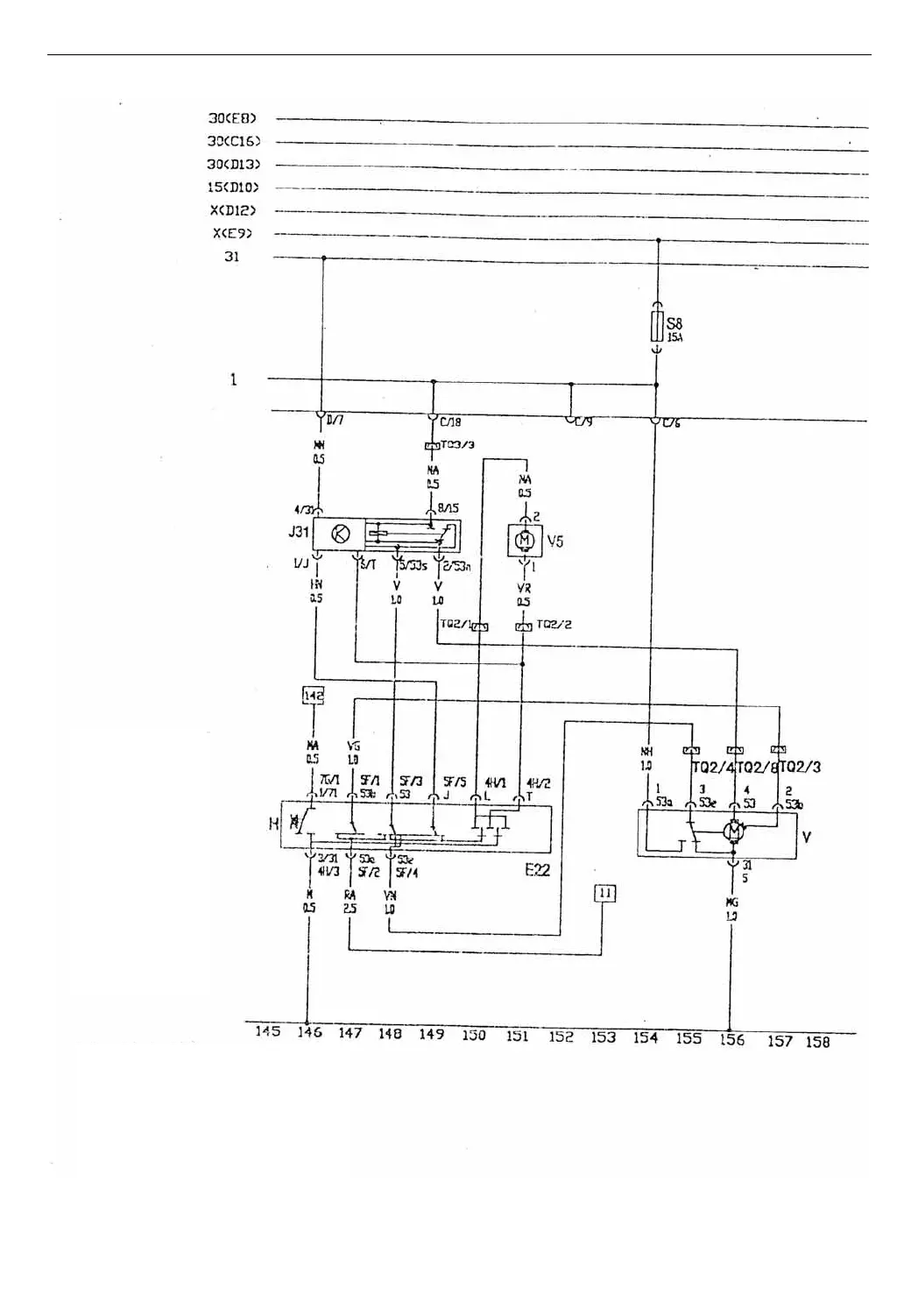

CIRCUIT
WIPER, HORN BUTTON, WASHER
B=WHITE
N
=BLAC
K
R=RED
M=BROWN
V=GREEN
A=BLUE
H=GREY
Z=PURPLE
G=YELLOW
E22 wiper switch
H horn button
J31 intermittent wiper relay
S5 fuse 15A
V wiper motor
V5 washer
10
