Chery A11 2003 User Manual

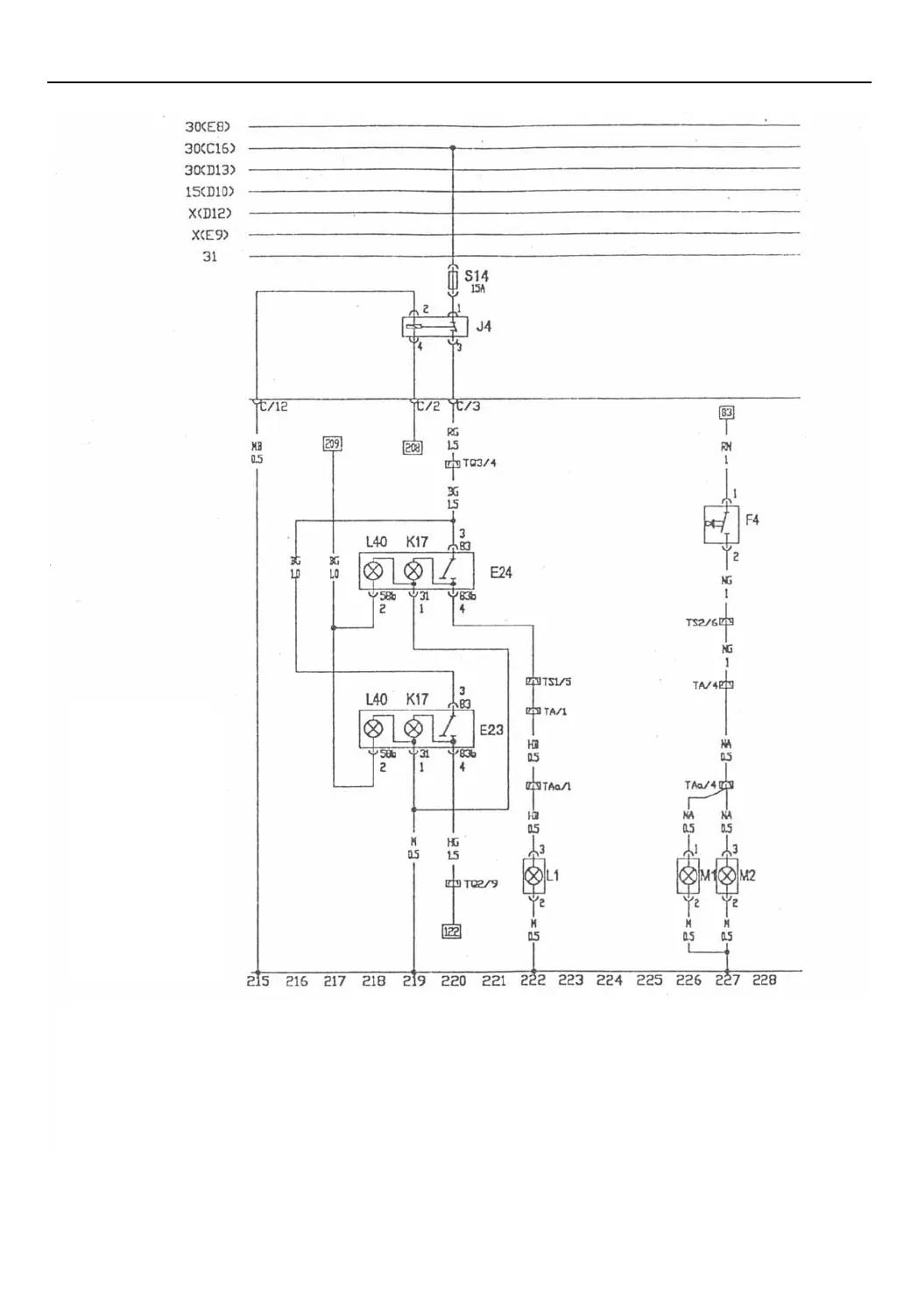

CIRCUIT
BACKLIGHT, REAR FOG LIGHT
B=WHITE
N
=BLAC
K
R=RED
M=BROWN
V=GREEN
A=BLUE
H=GREY
Z=PURPLE
G=YELLOW
E23 Front Fog Lamp Switch
○
8 In Rear Taillight Moving Parts Wiring
F4 Back Light Switch T3 3 Holes Connector
J4 Fog Lamp Relay (in electrical box) T3a 3 Holes Connector
K17 Rear Fog Lamp Indicator T2 2 Holes Connector
L1 Rear Fog Lamp T1 Single Hole Connector
L40 Front & Rear Fog Lamp Switch Illumination Light T1a Single Hole Connector
M1 Left Back Light
M2 Right Back Light
S10 Fuse 15A
S14 Fuse 10A
E24 Rear Fog Lamp Switch
