A11-2002 CIRCUIT MANUAL
19

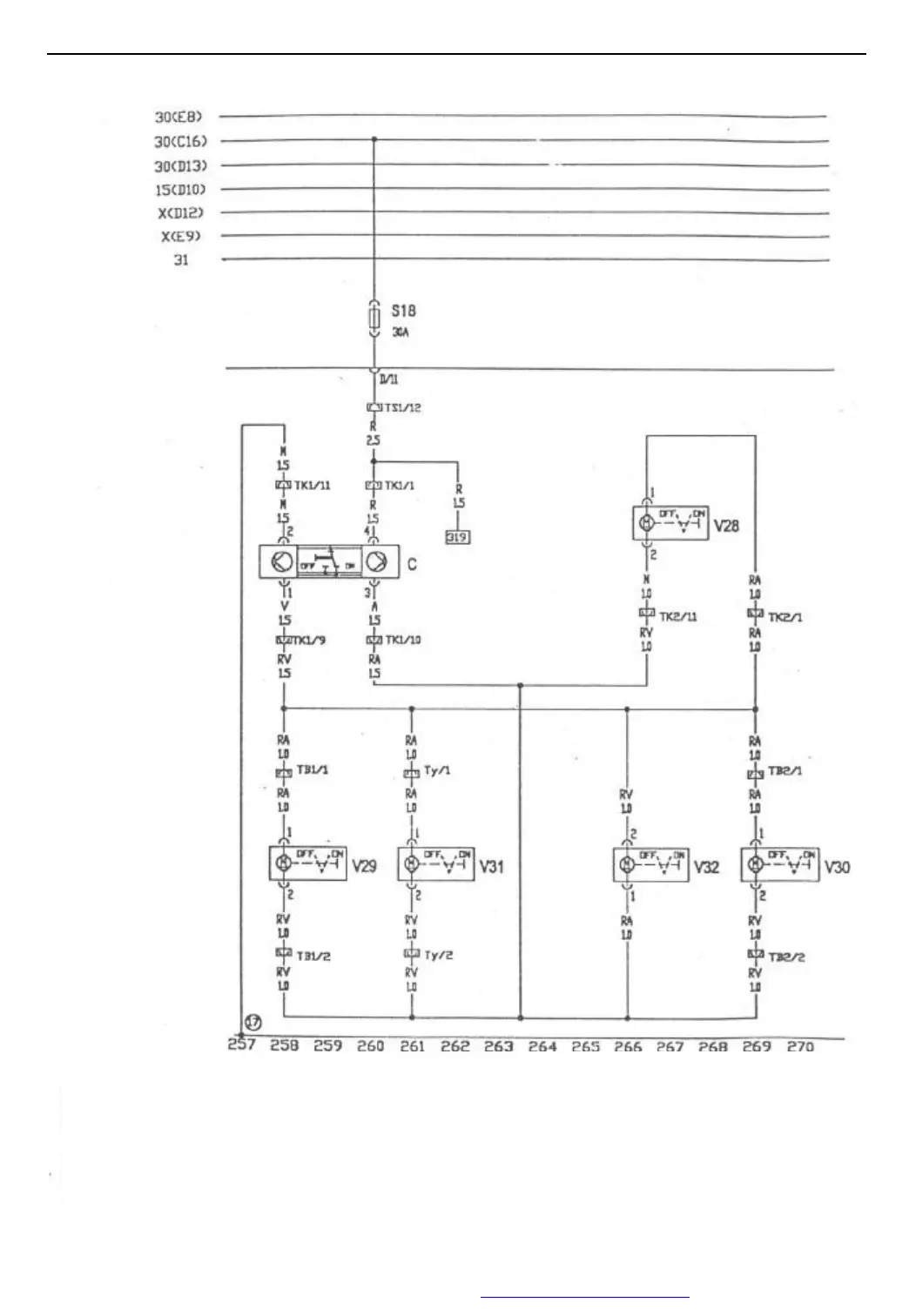

CENTRAL LOCKING
B=WHITE
N=BLACK
R=RED
M=BROWN
V=GREEN
A=BLUE
H=GREY
Z=PURPLE
G=YELLOW
C Central Lockin
g Control Unit ( in left front door) TB2 4 Holes Connector (right B pillar side)
V28 Right Front Door Lock Control Motor TK1 12 Holes Connector (left A pillar Side)
V29 Left Rear Door Lock Control Motor TK2 12 Holes Connector (right A pillar Side)
V30 Right Rear Door Lock Control Motor Ty 2 Holes Connector (Left C pillar side)
V31 Luggage Compartment Lock Control Motor (17) Ground Point Beside Central Electrical Box
V32 Fuel Tank Door Control Motor TB1 4 Holes Connector (left B pillar side)
