Chery A11 2003 User Manual

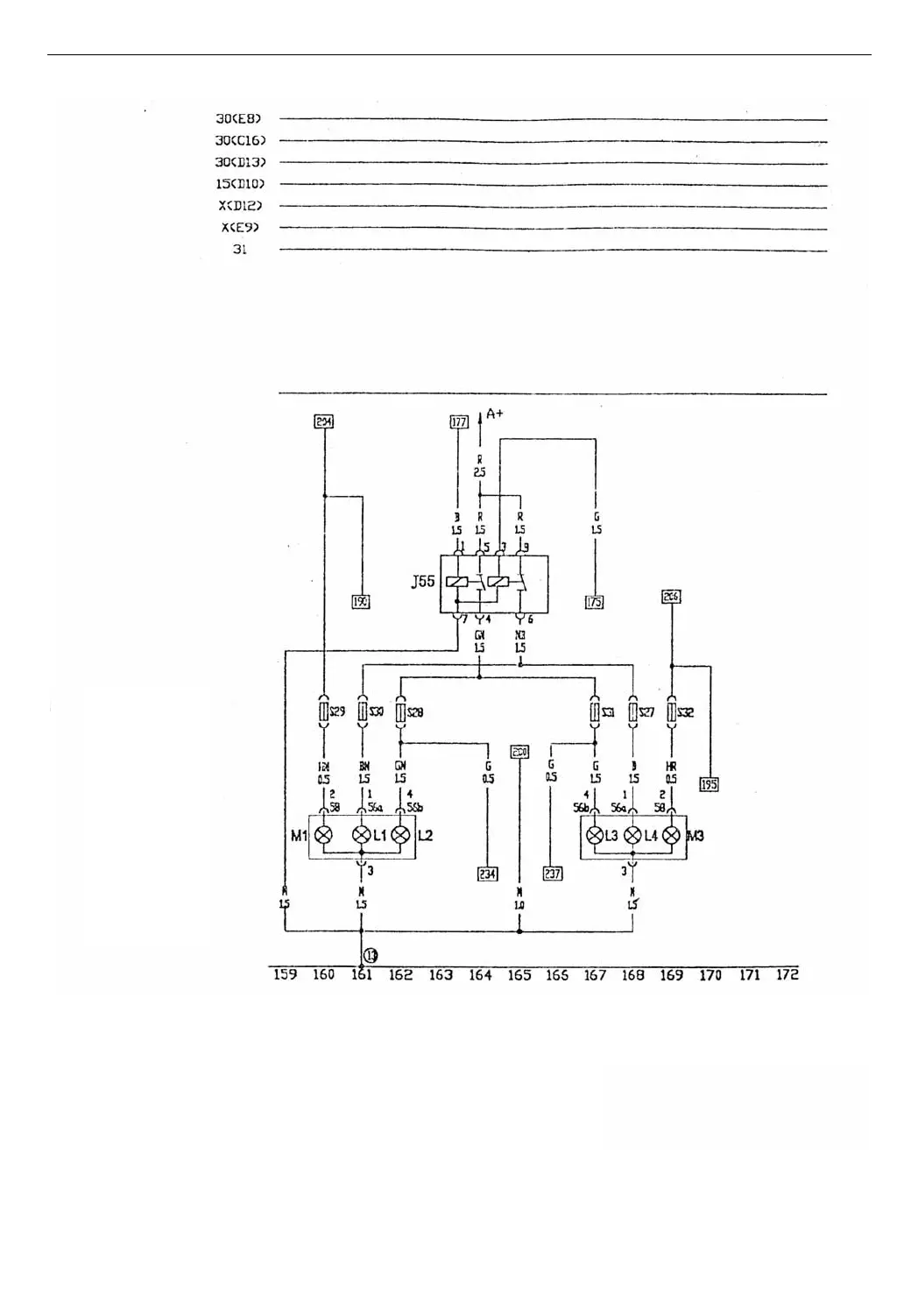

CIRCUIT
HEADLIGHT, FRONT POSITION LIGHT, LIGHT RELAY
B=WHITE
N
=BLAC
K
R=RED
M=BROWN
V=GREEN
A=BLUE
H=GREY
Z=PURPLE
G=YELLOW
○
13 Ground, In headlight wiring harness
J55 Light Relay
S27 Right High Beam Headlight Fuse 10A
S28 Left Low Beam Headlight Fuse 10A
S29 Left Position Light Fuse 10A
S30 Left High Beam Headlight Fuse 10A
S31 Right Low Beam Headlight Fuse 10A
S32 Right Position Light Fuse 10A
A+ Battery Positive
L1 Left High Beam Headlight
L2 Left Low Beam Headlight
L3 Right Low Beam Headlight
L4 Right High Beam Headlight
M1 Left Position Light
M3 Right Position Light
