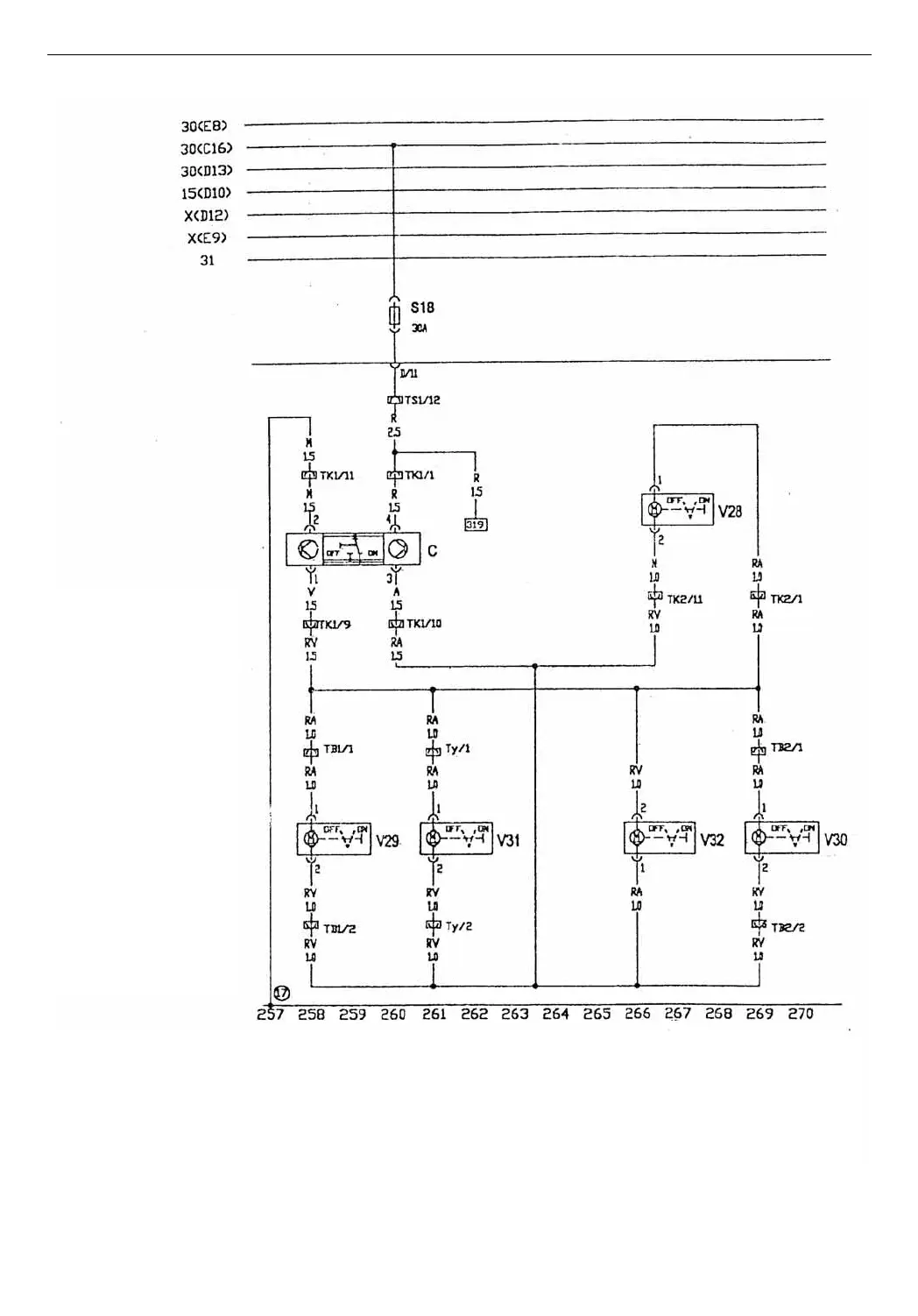

CIRCUIT
CENTRAL LOCKING
B=WHITE
N
=BLAC
K
R=RED
M=BROWN
V=GREEN
A=BLUE
H=GREY
Z=PURPLE
G=YELLOW
TB1 4 Holes Connector (left B pillar side)
TB2 4 Holes Connector (right B pillar side)
TK1 12 Holes Connector (left A pillar Side)
TK2 12 Holes Connector (right A pillar Side)
Ty 2 Holes Connector (Left C pillar side)
○
17 Ground Point Beside Central Electrical
C Central Locking Control Unit ( in left front door)
V28 Right Front Door Lock Control Motor
V29 Left Rear Door Lock Control Motor
V30 Right Rear Door Lock Control Motor
V31 Luggage Compartment Lock Control Motor
V32 Fuel Tank Door Control Motor
18
