A11-2002 CIRCUIT MANUAL
21
ABS
B=WHITE
N=BLACK
R=RED
M=BROWN
V=GREEN
A=BLUE
H=GREY
Z=PURPLE
G=YELLOW

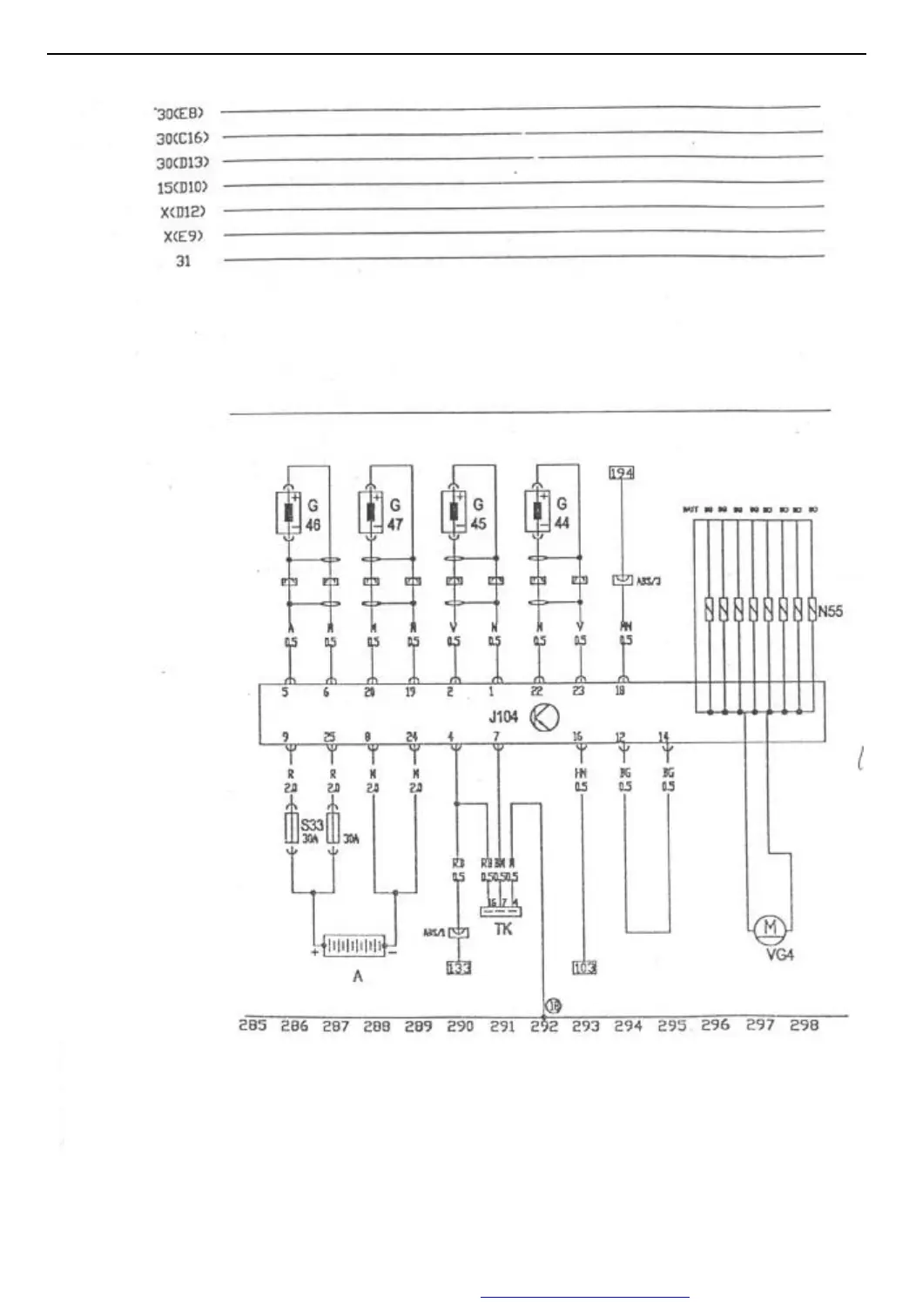

J104 ABS Controller G47 Left Front Wheel RPM Sensor
A Battery S33 ABS Solenoid Valve Power Fuse
N55 ABS Solenoid
S34 ABS Hydraulic Pump Power Fuse
VG4 ABS Hydraulic Pump TK Diagnosis Connector
G44 Right Rear Wheel RPM Sensor (18) Ground point, at ground carrier on central electrical box
G45 Right Front Wheel RPM Sensor
G46 Left Rear Wheel RPM Sensor
