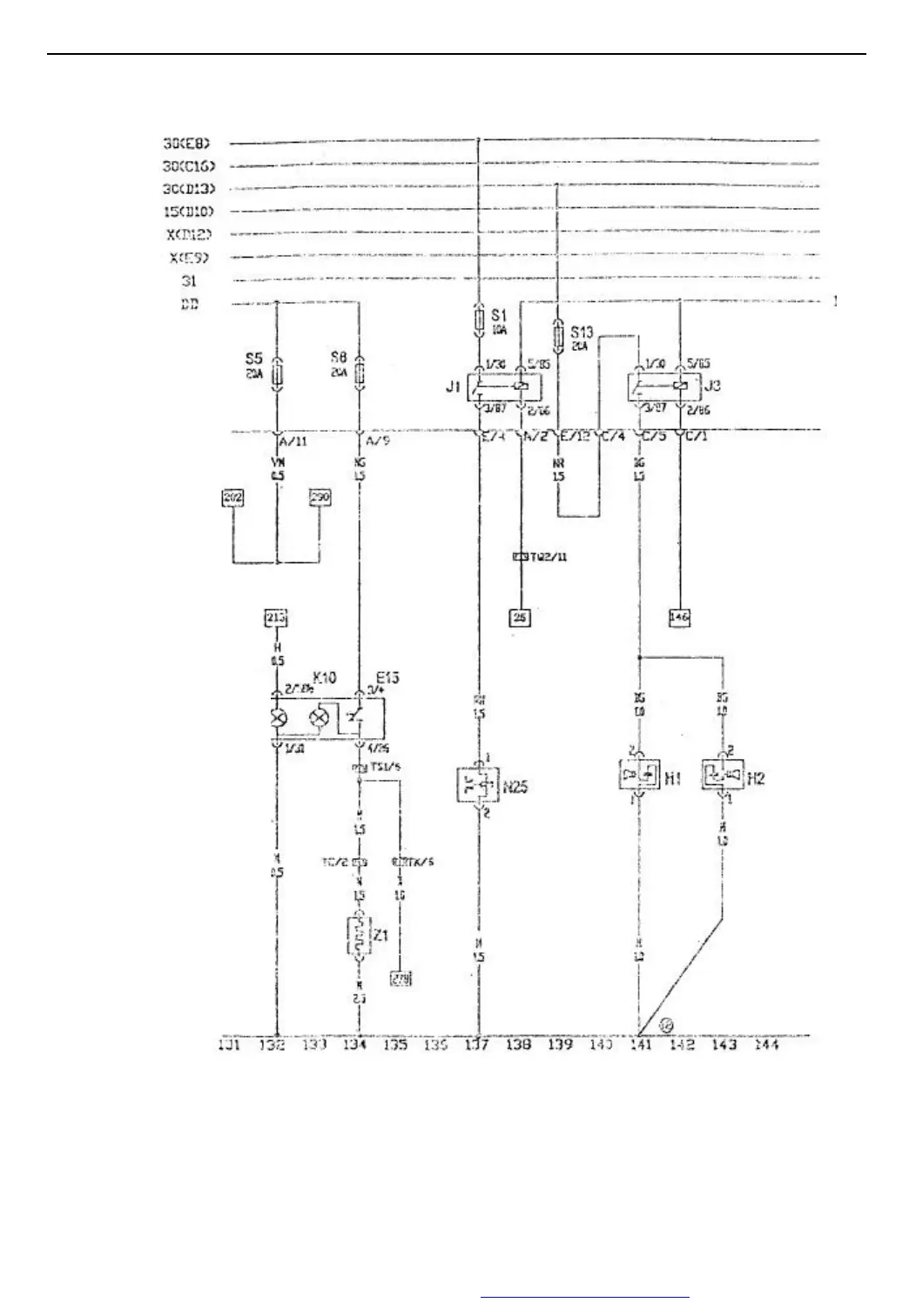

A11-2002 CIRCUIT MANUAL
10
REAR WINDOW HEATING SYSTEM, DUAL TONE HORN, A/C COMPRESSOR MAGENETIC
CLUTCH
B=WHITE
N=BLACK
R=RED
M=BROWN
V=GREEN
A=BLUE
H=GREY
Z=PURPLE
G=YELLOW
J1 Idle Up Relay (in electrical box)
J3 dual tone Horn
J39 Rear Window Heating Switch Illumination Light
K10 Rear Window Heating Indicator
E15 Rear Window Heater Switch
H1(2) dual tone Horn
Z1 Rear Window Heater (12) Ground point, in dual tone horn wiring harness
