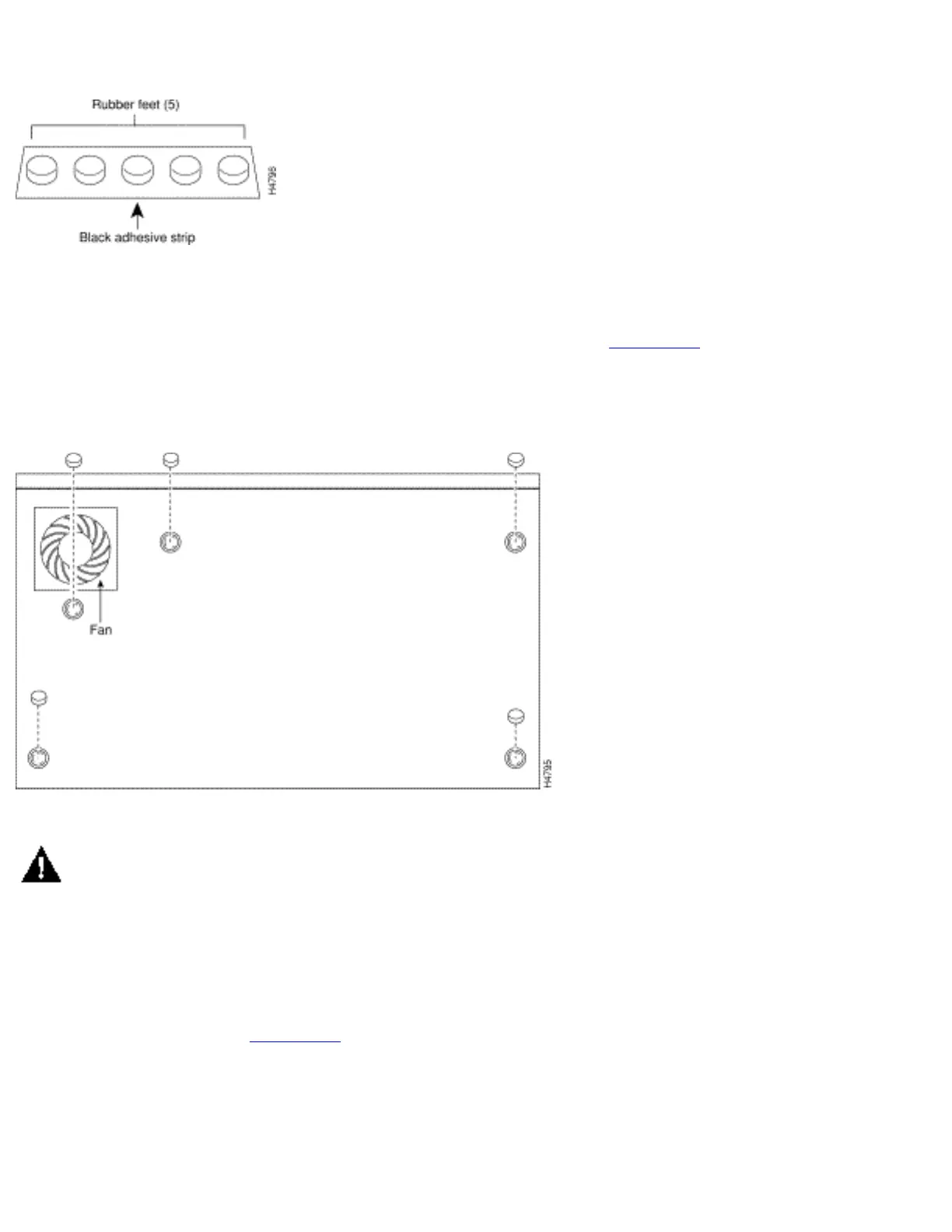

Figure 3-1: Identifying the Rubber Feet
Step 2 Place the chassis upside down on a smooth, flat surface.
Step 3 Peel off the rubber feet from the black adhesive strip and place them adhesive-side down onto the
five round, recessed areas on the bottom of the chassis, as shown in Figure 3-2.
Figure 3-2: Installing the Rubber Feet
Step 4 Place the router right-side up on a flat, smooth, secure surface.
Caution Do not place anything on top of the router that weighs more than 10 pounds (4.5 kg).
Excessive weight on top could damage the chassis.
Rack-Mounting the Chassis
This section describes the procedures for rack-mounting the chassis. The chassis comes with brackets for
use with a 19-inch rack or, if specified in your order, optional larger brackets for use with a 24-inch rack.
The brackets are shown in Figure 3-3.
Figure 3-3: Identifying the Brackets
