CHAPTER 5
Installing and Removing a Shared Port Adapter
This chapter describes how to install or remove SPAs on the Cisco ASR 9000 Series Aggregation Services
Router. This chapter contains the following sections:
• Handling SPAs, on page 93
• Online Insertion and Removal, on page 94
• SPA Installation and Removal, on page 94
• Optical Device Installation and Removal, on page 95
• Checking the Installation, on page 96
Handling SPAs
Each SPA circuit board is mounted to a metal carrier and is sensitive to electrostatic discharge (ESD) damage.
Before you begin installation, read Preparing to Install a Shared Port Adapter or a SPA Interface Processor,
on page 83 for a list of parts and tools required for installation.
Always handle the SPA by the carrier edges and handle; never touch the SPA components or connector pins.
(See the figure below.)
Caution
When a bay is not in use, a blank must fill the empty bay to allow the router or switch to conform to
electromagnetic interference (EMI) emissions requirements and to allow proper airflow across the installed
modules. If you plan to install a SPA in a bay that is not in use, you must first remove the blank.

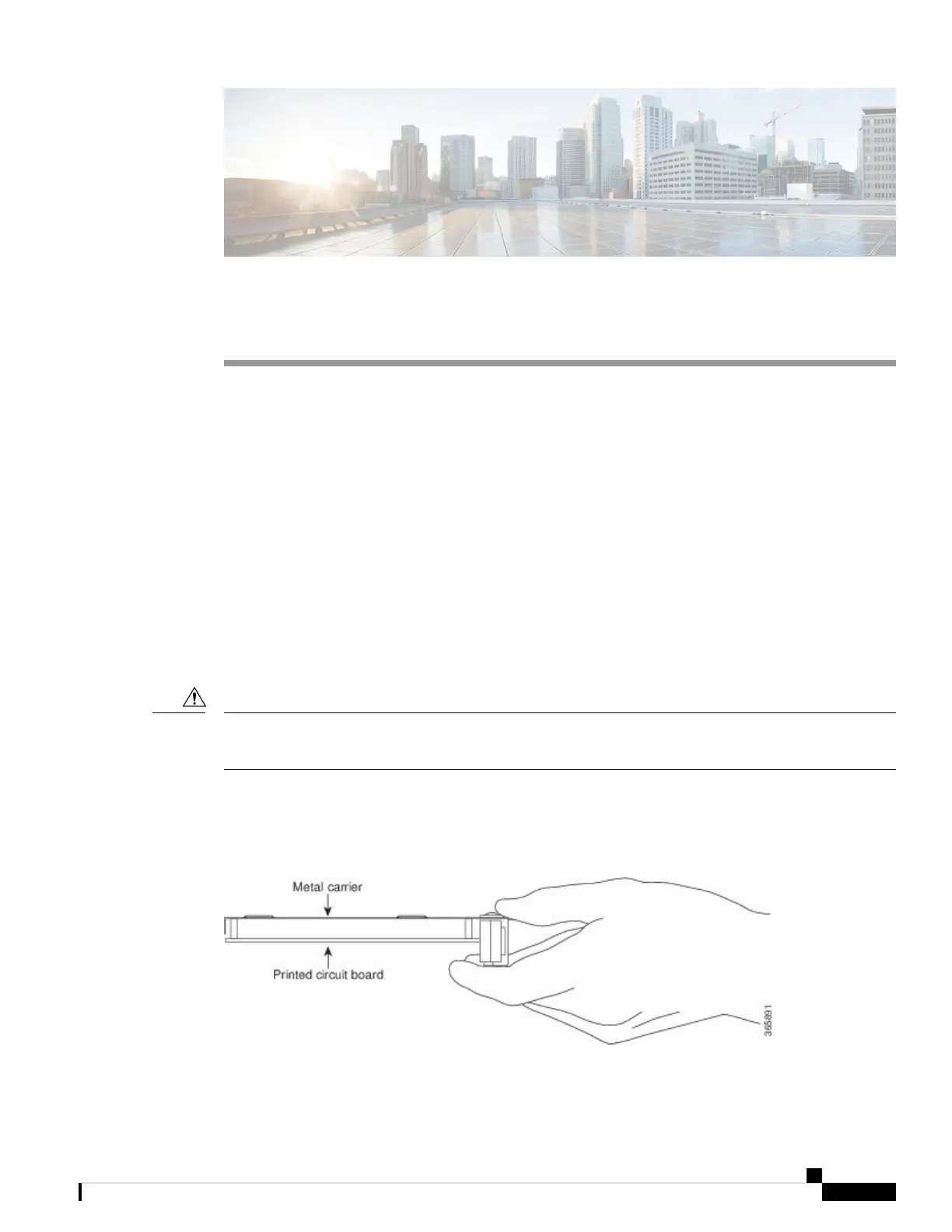

Figure 61: Handling a SPA
Cisco ASR 9000 Series Aggregation Services Router SIP and SPA Hardware Installation Guide
93
