• Single-mode intermediate-reach (IR) SFP module—SFP-OC48-IR1 OC48/STM16c
• Single-mode long-reach (LR) SFP module—SFP-OC48-LR2 OC48/STM16c
Each port on the 4-Port OC-48/STM-16 POS/RPR SPA has one duplex LC-type receptacle. For single-mode
optical fiber connections, you can use either a duplex LC-type cable or two simplex LC-type cables, one for
transmit (TX) and one for receive (RX).

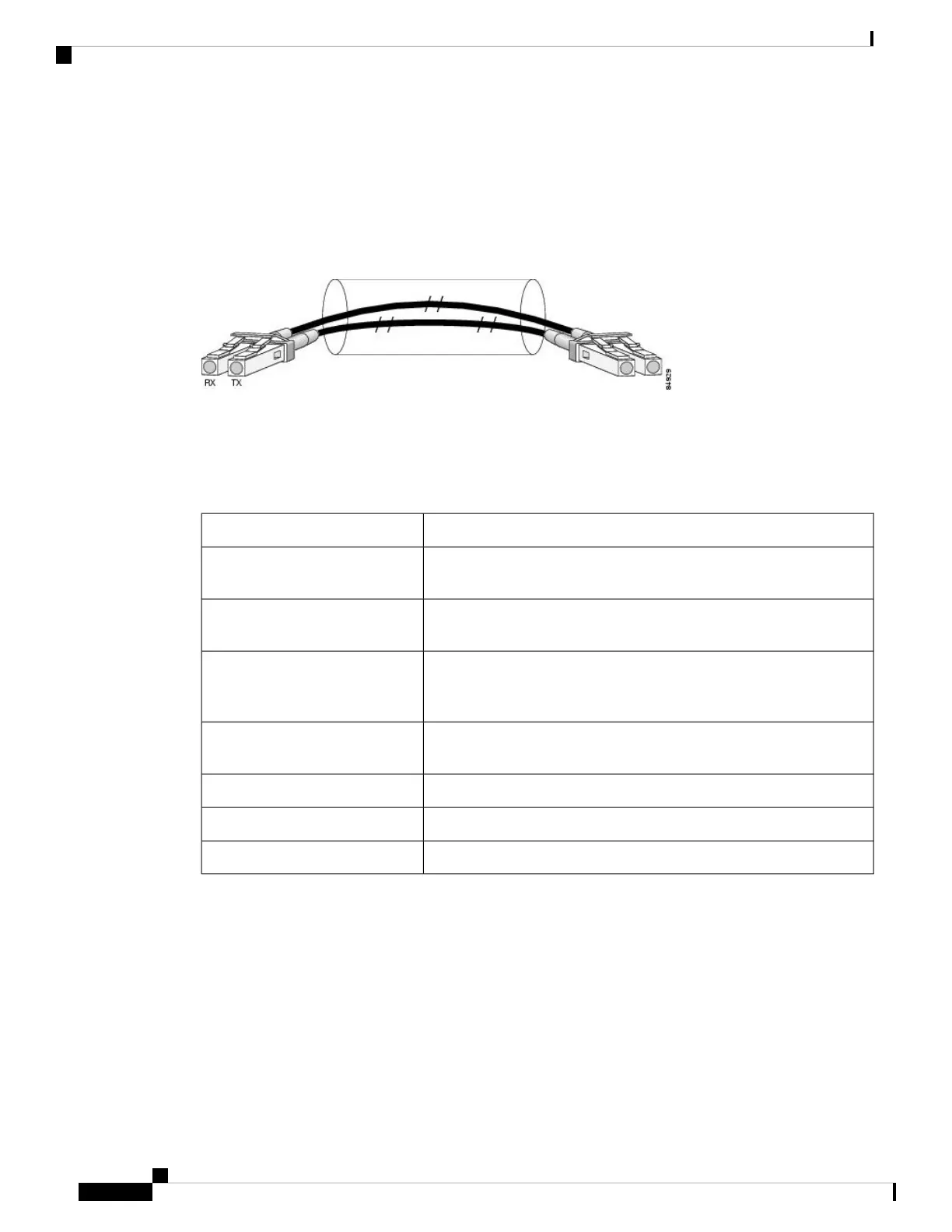

Figure 48: LC-Type Cable
OC-48 Module Connections
The following table shows the OC-48 specifications for use with the 4-Port OC-48/STM-16 POS/RPR SPA.
Table 36: OC-48 Specifications
DescriptionSpecification
OC-48 SR: 1266 nm to 1360 nmOC-48 IR-1: 1260 nm to 1360 nmOC-48
LR-2: 1500 nm to 1580 nm
Wavelength
OC-48 SR: 2 km (1.2 miles)OC-48 IR-1: 15 km (9.3 miles)OC-48 LR-2:
80 km (49.7 miles)
Cabling distance (maximum)
OC-48 SR: 23 to 158 degrees F (–5 to 70 degrees C)OC-48 IR-1: 23 to
158 degrees F (–5 to 70 degrees C)OC-48 LR-2: 23 to 158 degrees F
(–5 to 70 degrees C)
Operating case temperature range
OC-48 SR: –10 to –3 dBmOC-48 IR-1: –5 to 0 dBmOC-48 LR-2: –2 to
+3 dBm
TX power
OC-48 SR: –18 dBmOC-48 IR-1: –18 dBmOC-48 LR-2: –28 dBmReceiver sensitivity (maximum)
OC-48 SR: –3 dBmOC-48 IR-1: 0 dBmOC-48 LR-2: –9 dBmRX overload
OC-48 SR: +5 dBmOC-48 IR-1: +5 dBmOC-48 LR-2: +5 dBmMaximum receiver power damage
Mate Interface Cables
The 4-Port OC-48/STM-16 POS/RPR SPA supports two mate interface configurations:
• Mate between two OC-192c SPAs in the same SIP
• Mate between two OC-192c SPAs in adjacent SIPs
Two SPAs are connected using a 40–pin connector copper mate cable. The length of the cables allow only
two possible connection scenarios, next slot horizontal and same slot vertical. This assumes that the chassis
is mounted vertically. The following figure shows the mate cables used to connect the SPAs.
Cisco ASR 9000 Series Aggregation Services Router SIP and SPA Hardware Installation Guide
58
Overview: Cisco ASR 9000 Series Router Shared Port Adapters
OC-48 Module Connections
