The Cisco cable part numbers are 72-4124-01 (for the male BNC end) and 72-4131-01 (for the female BNC
end). A SPA can receive data over the cable up to a maximum distance of 1350 ft (411.5 meters).
Note
The following table describes the signal descriptions for the 2-Port Channelized T3/E3 ATM CEoP SPA
connectors shown in the previous figure.
Table 38: 2-Port Channelized T3/E3 ATM CEoP SPA Connectors
MeaningConnector Label
Transmitted signals appear on the center contact. The outer shield is ground for the 75-ohm
coaxial cable you attach to the TX DIN 1.0/2.3 connector.
TX
Received signals appear on the center contact. The outer shield is ground for the 75-ohm
coaxial cable you attach to the RX DIN 1.0/2.3 connector.
RX
24-Port Channelized T1/E1/J1 CEoP SPA Overview
The following sections describe the 24-Port Channelized T1/E1/J1 CEoP SPA:
• 24-Port Channelized T1/E1/J1 CEoP SPA LEDs, on page 61
• 24-Port Channelized T1/E1/J1 CEoP SPA Interface Specifications, on page 62
• 24-Port Channelized T1/E1/J1 CEoP SPA Cables and Connectors, on page 62
• 24-Port Channelized T1/E1/J1 CEoP SPA Patch Panel, on page 65
24-Port Channelized T1/E1/J1 CEoP SPA LEDs
The 24-Port Channelized T1/E1/J1 CEoP SPA has two types of LEDs, as shown in the following figure:

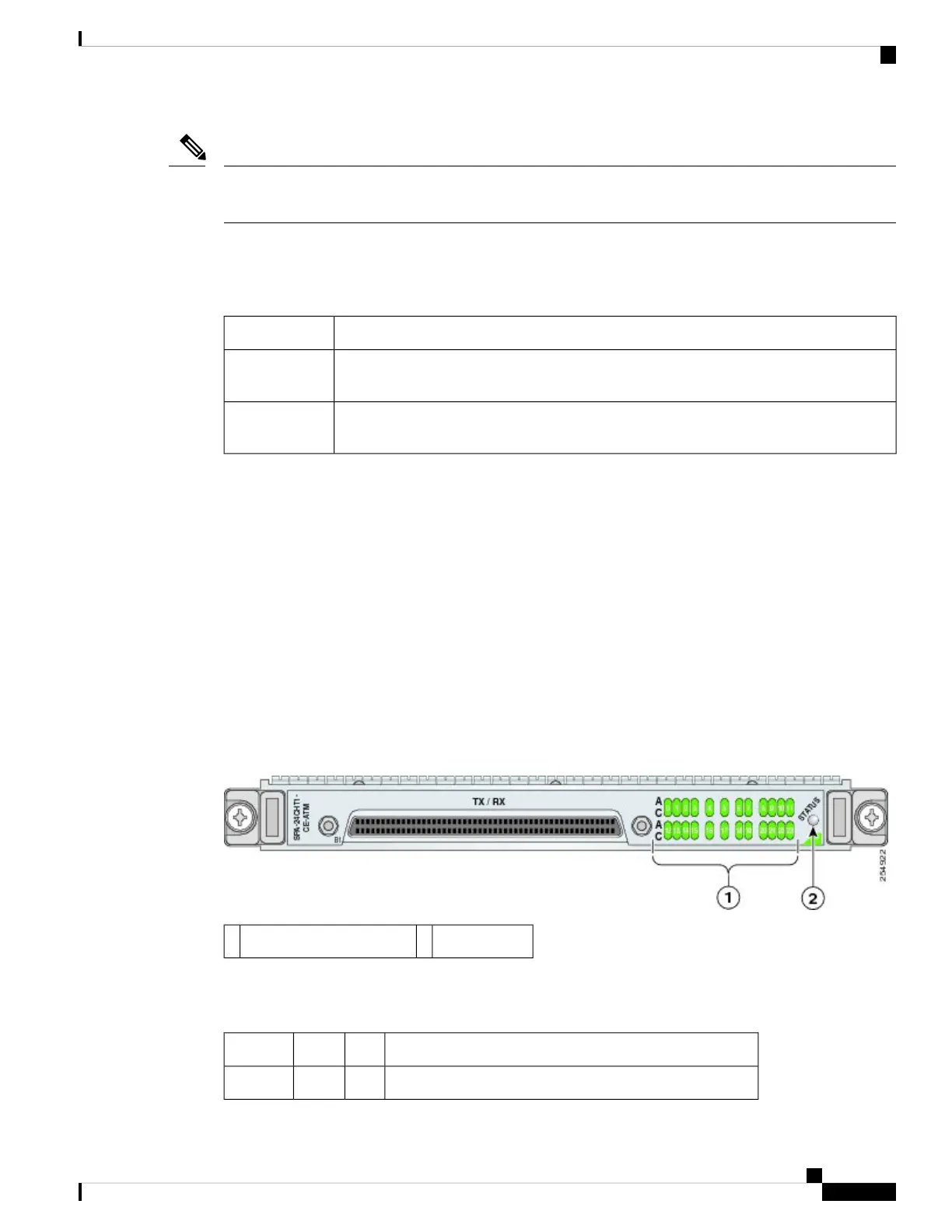

Figure 51: 24-Port Channelized T1/E1/J1 CEoP SPA Faceplate
STATUS LED2A/C (Alarm/Carrier) LEDs1
The following table describes the 24-Port Channelized T1/E1/J1 CEoP SPA LEDs.
Table 39: 24-Port Channelized T1/E1/J1 CEoP SPA LEDs
MeaningStateColorLED Label
SPA power is off.OffOffSTATUS
Cisco ASR 9000 Series Aggregation Services Router SIP and SPA Hardware Installation Guide
61
Overview: Cisco ASR 9000 Series Router Shared Port Adapters
24-Port Channelized T1/E1/J1 CEoP SPA Overview
To Next Page
