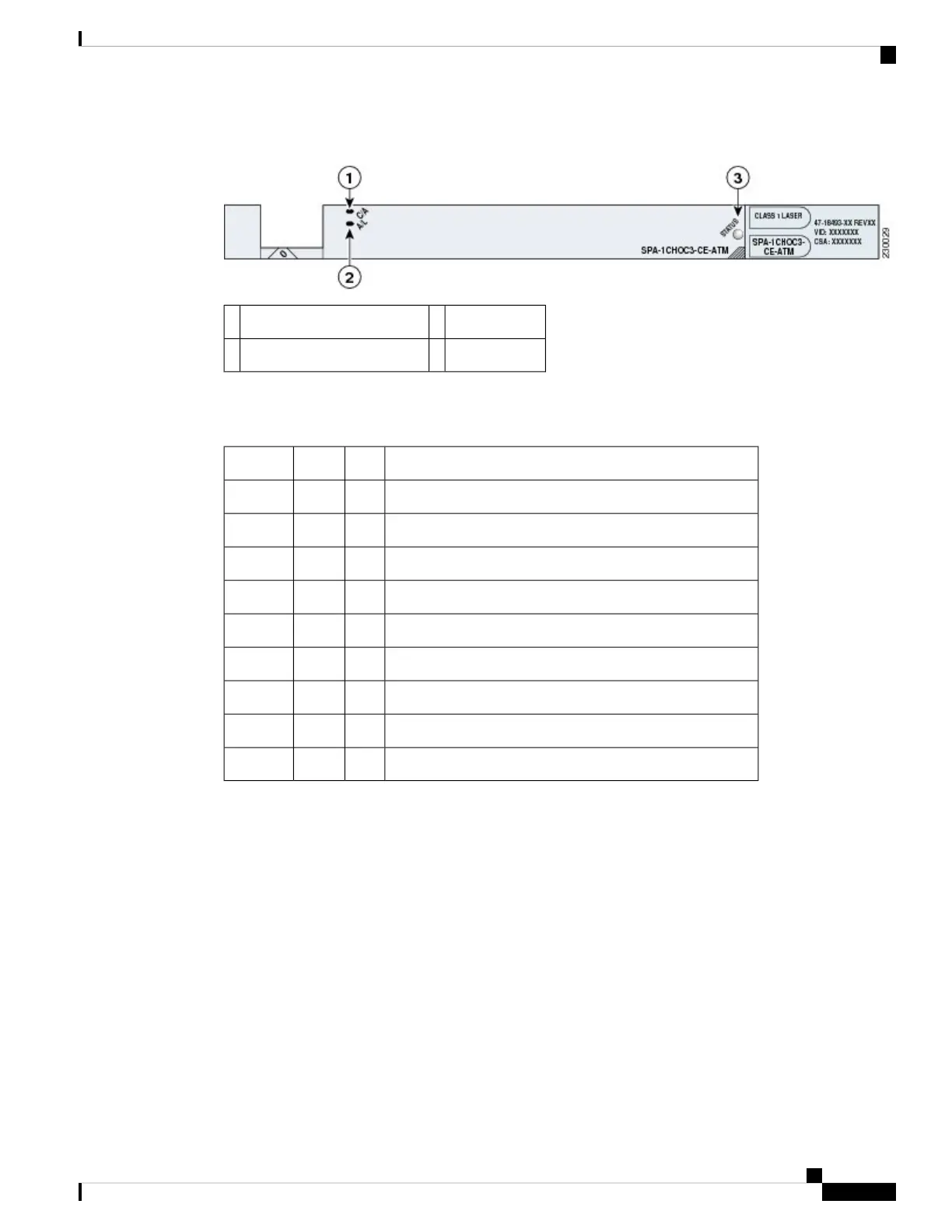

Figure 34: 1-Port Channelized OC-3 ATM CEoP SPA Faceplate
STATUS LED3C/A (Carrier/Alarm) LED1
A/L (Active Loopback) LED2
The 1-Port Channelized OC-3 ATM CEoP SPA LEDs are described in the following table.
Table 30: 1-Port Channelized OC-3 ATM CEoP SPA LEDs
MeaningStateColorLED Label
Port is not enabled by software.OffOffC/A
Port is enabled by software.OnGreen
Port is enabled by software, and there is at least one alarm.OnAmber
Port is not enabled by software.OffOffA/L
Port is enabled by software, loopback is off.OnGreen
Port is enabled by software, loopback is on.OnAmber
SPA power is off.OffOffSTATUS
SPA power is on and good, and SPA is being configured.OnAmber
SPA is ready and operational.OnGreen
1-Port Channelized OC-3 ATM CEoP SPA Interface Specifications
The physical layer interface for the 1-Port Channelized OC-3 ATM CEoP SPA is Optical Carrier-3 (OC-3).
The 1-Port Channelized OC-3 ATM CEoP SPA provides one 155.52-Mbps OC-3 network interface for all
supported platforms.
The single SPA port accepts an SFP module with a duplex LC-type receptacle that allows connection to optical
fiber.
1-Port Channelized OC-3 ATM CEoP SPA Optical Transceiver Modules and
Cables
Cisco Systems qualifies the optics that are approved for use with its SPAs. The 1-Port Channelized OC-3
ATM CEoP SPA supports the following types of optical transceiver modules:
Cisco ASR 9000 Series Aggregation Services Router SIP and SPA Hardware Installation Guide
45
Overview: Cisco ASR 9000 Series Router Shared Port Adapters
1-Port Channelized OC-3 ATM CEoP SPA Interface Specifications
