Cisco A9K-SIP-700 Hardware Installation Guide

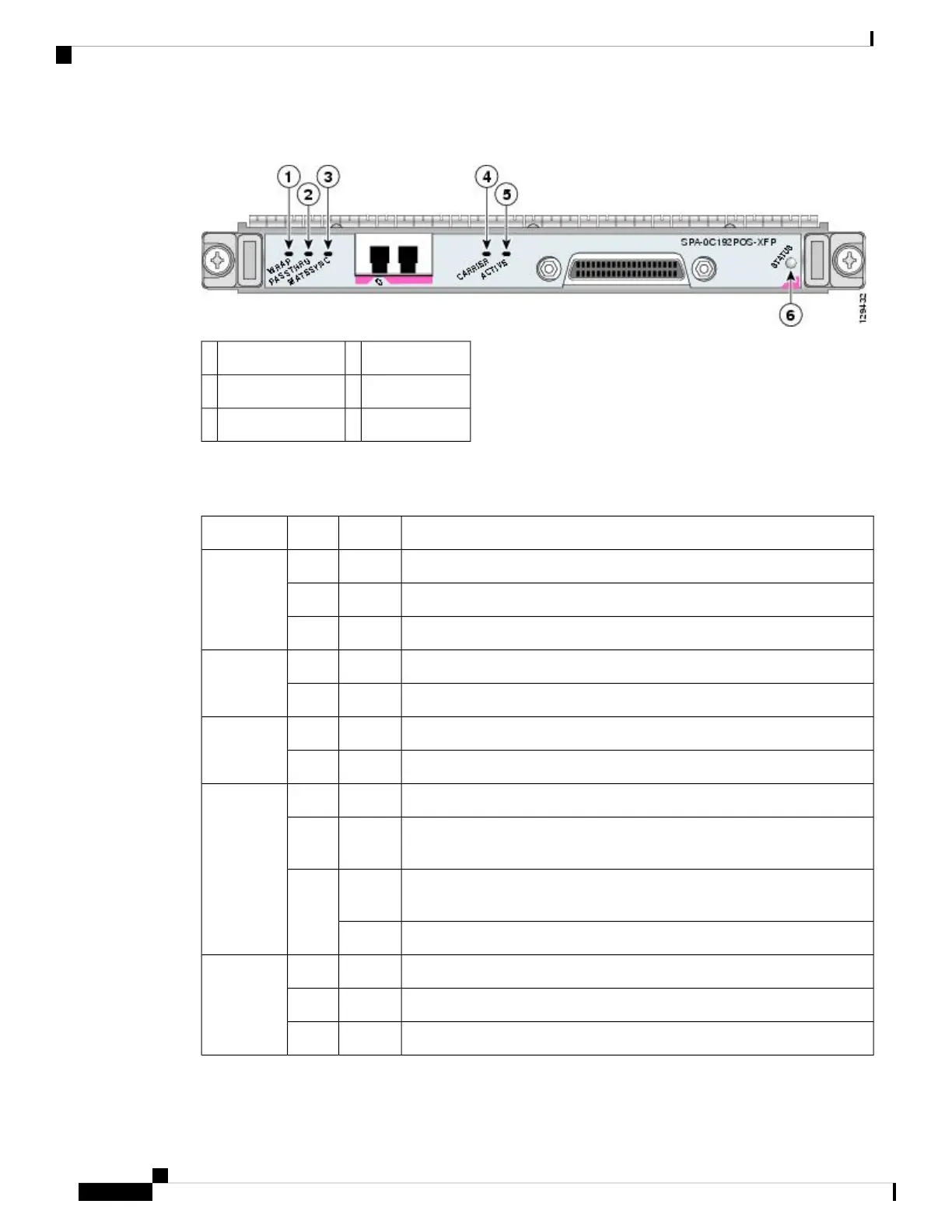

Figure 18: 1-Port OC-192/STM-64 POS/RPR XFP SPA Faceplate
CARRIER LED4WRAP LED1
ACTIVE LED5PASSTHRU LED2
STATUS LED6MATESYNC LED3
The following table describes the 1-Port OC-192/STM-64 POS/RPR XFP SPA LEDs.
Table 17: 1-Port OC-192/STM-64 POS/RPR XFP SPA LEDs
MeaningStateColorLED Label
Port is not in wrap mode.OffOffWRAP
Port is in wrap mode somewhere on the ring.OnGreen
Port is in wrap mode locally.OnAmber
Port is not in pass-through mode.
OffOffPASSTHRU
Port is in pass-through mode.OnAmber
Mate port is not synchronized.
OffOffMATESYNC
Mate port is synchronized.OnGreen
Port is not enabled by software.
OffOffCARRIER
Port is enabled by software, and there is a valid SONET signal without
alarms.
OnGreen
Port is enabled by software, and there is at least one alarm (LOS, LOF, RDI,
and so on).
OnAmber
SRP mode mismatch alarm is indicated.Blinking
Port is not enabled by software.Off
OffACTIVE
Port is enabled by software, and loopback is off.OnGreen
Port is enabled by software, and loopback is on.OnAmber
Cisco ASR 9000 Series Aggregation Services Router SIP and SPA Hardware Installation Guide
26
Overview: Cisco ASR 9000 Series Router Shared Port Adapters
1-Port OC-192/STM-64 POS/RPR XFP SPA LEDs
