Cisco ASR 1001-X Installation Guide

7-7
Cisco ASR 1001-X Router Hardware Installation Guide
OL-32376-02
Chapter 7 Removing and Replacing FRUs from the Cisco ASR 1001-X Router
Removing and Replacing the Cisco ASR 1001-X Router Power Supplies

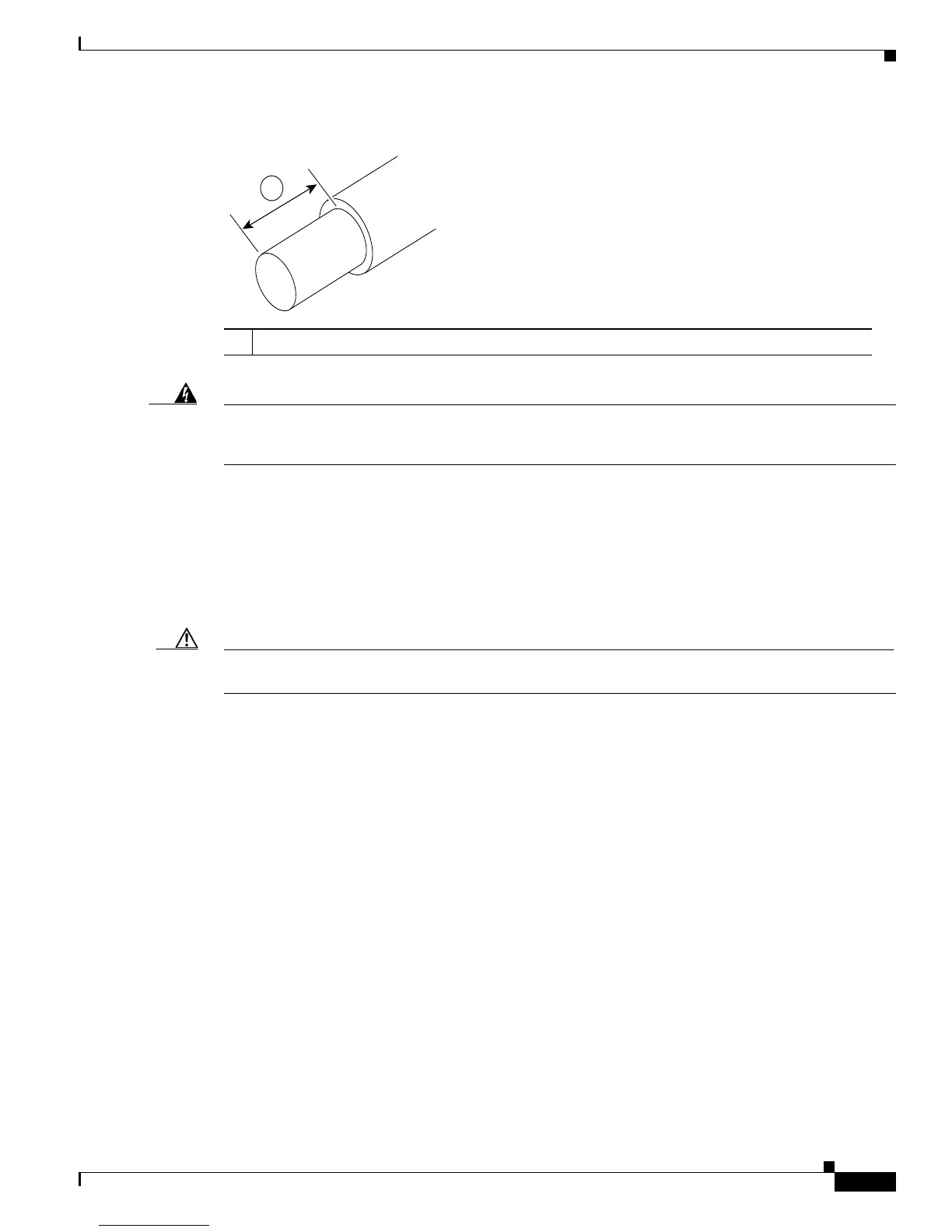

Figure 7-6 Stripped DC Input Power Source Wire
Warning An exposed wire lead from a DC input power source can conduct harmful levels of electricity. Be sure
that no exposed portion of the DC input power source wire extends from the terminal block.
Statement
122
Step 4 Identify the positive and negative feed positions for the terminal block connection. The wiring sequence
is:
1. Positive (+) lead wire (right)
2. Negative (–) lead wire (left)
Step 5 Insert the exposed wire into the terminal block. Ensure that you cannot see any wire lead outside the
plastic cover. Only wires with insulation should extend from the terminal block.
Caution Do not overtorque the terminal block captive screws. Ensure that the connection is snug, but the wire is
not crushed. Verify by tugging lightly on each wire to ensure that they do not move.
Step 6 Use a screwdriver to tighten the terminal block captive screws, as shown in Figure 7-7.
1 0.39 inch (10 mm) is the recommended wire-strip length for the terminal block.
57019
1

Cisco ASR 1001-X Specifications

General

Product color	Gray
Rack capacity	1U
Rack mounting	Yes
Networking standards	-
Ethernet LAN (RJ-45) ports	6
Installed SFP modules quantity	2
Flash memory	1024 MB
Internal memory	8192 MB
Processor cores	4
AC input voltage	85 - 264 V
Power source type	AC
Power consumption (typical)	250 W
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 50 °C
Storage relative humidity (H-H)	5 - 95 %
Operating relative humidity (H-H)	5 - 90 %
Security algorithms	AES

Weight and Dimensions

Depth	461.5 mm
Width	439.42 mm
Height	43.43 mm
Weight	10590 g
