Cisco ASR 1001-X Installation Guide

1-2
Cisco ASR 1001-X Router Hardware Installation Guide
OL-32376-02
Chapter 1 Cisco ASR 1001-X Router Overview
Hardware Features of the Cisco ASR 1001-X Router
• Environmental chassis management.
• 10 MB ternary content-addressable memory (TCAM).
• Up to 20 Gbps sustained forwarding data traffic through the chassis.
• One Network Interface Module (NIM) bay.
Note The NIM bay supports the T1/E1 NIMs and the Solid State Device (SSD) NIM assembly and
drive.
• Field-replaceable units (FRU) with online insertion and removal (OIR).
Cisco ASR 1001-X Overall Chassis Front View

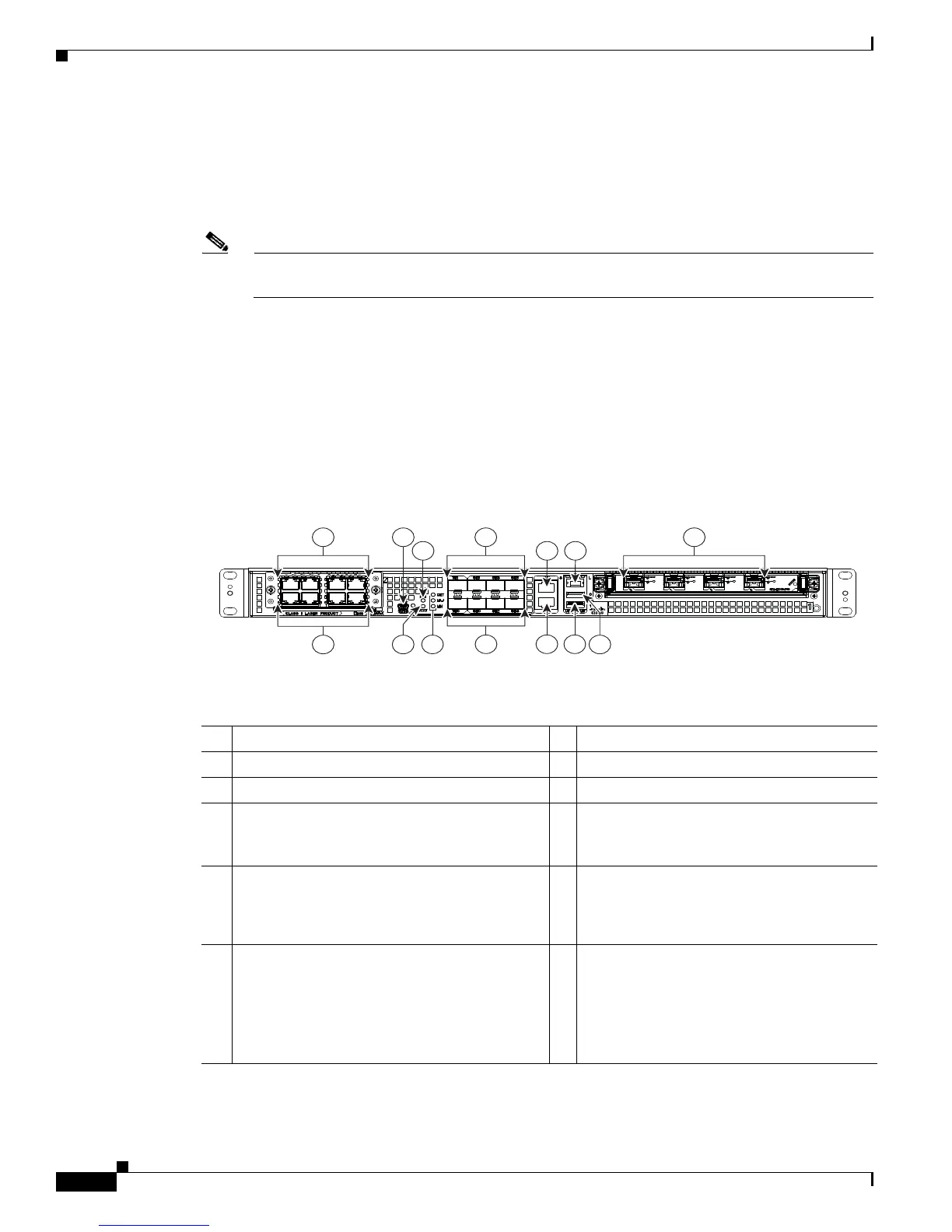

Figure 1-1 shows the front of the Cisco ASR 1001-X Router.
Figure 1-1 Cisco ASR 1001-X Router Front View
1 4
7
2
3 5 6
4
1
11
12 8
10 9
371075
1 NIM slots 7 Shared port adapter slot
2 CON—One mini eUSB por 8 USB port 0
3 PWR—Power LED 9 USB port 1
4 Six built-in 1 GE SFP-only interfaces (do not
support SFP+), and two built-in 10 GE SFP+
interfaces (support only 10-GE rate)
10 CON—One RJ-45/RS-232 compatible
console port
5 AUX—One RJ-45/RS-232 compatible
auxiliary port
11 CRIT LED—Critical alarm indicator
MAJ LED—Major alarm indicator
MIN LED—Minor alarm indicator
6 MGMT—One RJ-45 10/100/1000 management
Ethernet port. The management port has two
LEDs, L and S. L green indicates Link
operations. S blinks the negotiated Ethernet
speed (1 blink equals 10 Mbps, 2 blinks equals
100 Mbps, 3 blinks equals 1 000 Mbps).
12 STAT—Status LED

Cisco ASR 1001-X Specifications

General

Product color	Gray
Rack capacity	1U
Rack mounting	Yes
Networking standards	-
Ethernet LAN (RJ-45) ports	6
Installed SFP modules quantity	2
Flash memory	1024 MB
Internal memory	8192 MB
Processor cores	4
AC input voltage	85 - 264 V
Power source type	AC
Power consumption (typical)	250 W
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 50 °C
Storage relative humidity (H-H)	5 - 95 %
Operating relative humidity (H-H)	5 - 90 %
Security algorithms	AES

Weight and Dimensions

Depth	461.5 mm
Width	439.42 mm
Height	43.43 mm
Weight	10590 g
