Cisco ASR 9001 Hardware Installation Guide

Ethernet Ports and Status LEDs
The RP has two 8-pin media-dependent interface (MDI) RJ-45 Management LAN ports for 10 Mbps, 100
Mbps, and 1000Mbps Ethernet connections. These ports are labeled MGT LAN 0 and MGT LAN 1.
The transmission speed of the Ethernet port is not user-configurable. You set the speed through an auto-sensing
scheme on the RP, the speed is determined by the network to which the Ethernet port is connected. However,
even at an auto-sensed data transmission rate of 100 Mbps, the Ethernet port can only provide a usable
bandwidth of substantially less than 100 Mbps. You can expect a maximum usable bandwidth of approximately
12 Mbps when using an Ethernet connection.
These LEDs on the front panel indicate traffic status and port selection (see the following figure):
• LINK—Indicates link activity.
• ACT—Indicates which Ethernet port is selected (ETH 0 or ETH 1).
Because both ports are supported on the RP card, MGT LAN 0 is always on. MGT LAN 0 lights when it
is selected.
Note

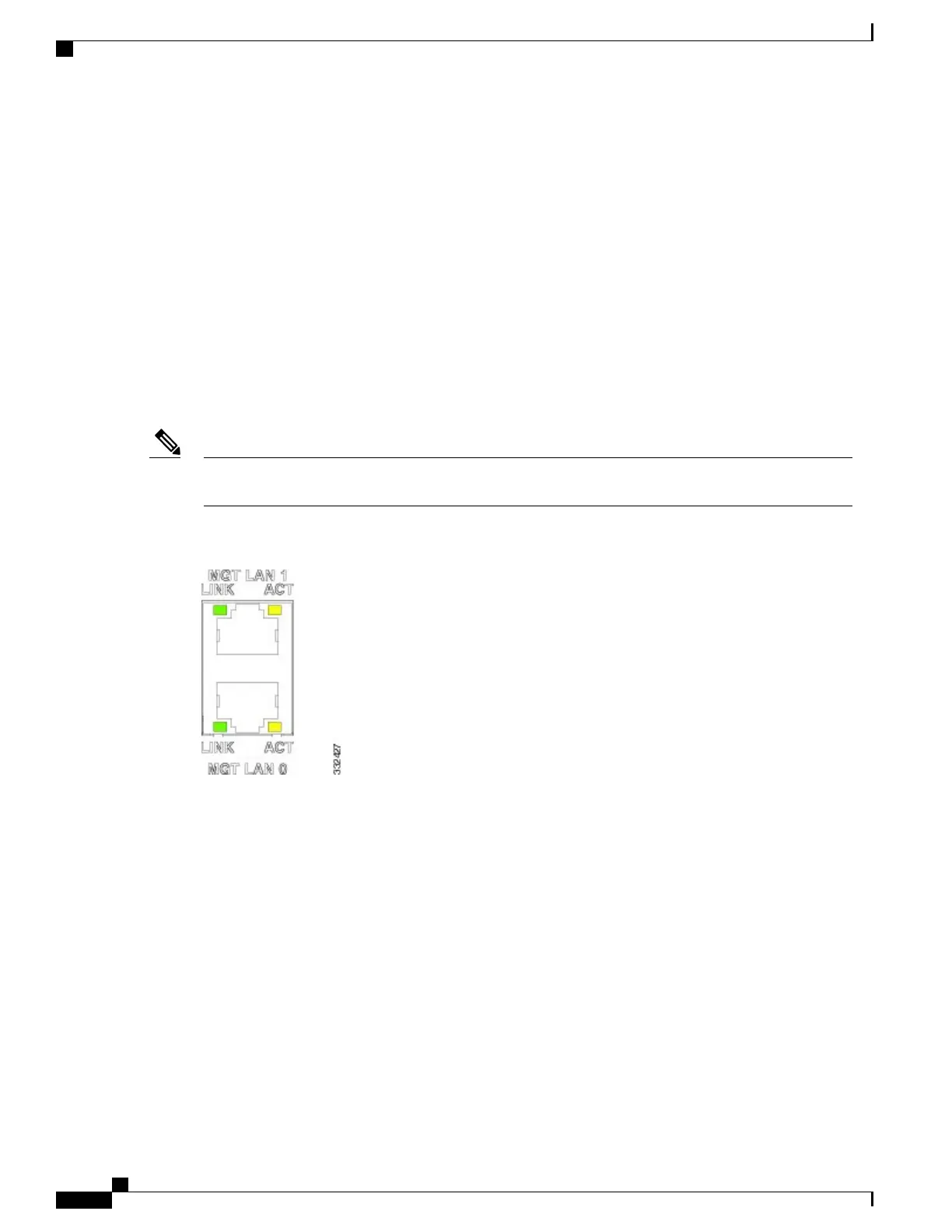

Figure 59: Management LAN Port Activity LEDs
Auxiliary and Console Ports
The auxiliary and console ports on the RP are EIA/TIA-232 (also known as RS-232) asynchronous serial
ports connect external devices to monitor and manage the system:
• Auxiliary port—RJ45 interface that supports flow control and is often used to connect a modem, a
channel service unit (CSU), or other optional equipment for Telnet management.
• Console port—Receptacle (female) that provides a RJ45 interface for connecting a console terminal.
Monitoring Critical, Major, and Minor Alarm Status
Alarms warn of:
•
Overtemperature condition on a component in the card
Cisco ASR 9001 and Cisco ASR 9001-S Routers Hardware Installation Guide
98
Troubleshooting the Installation
Monitoring Critical, Major, and Minor Alarm Status
