Verifying Rack Dimensions
Before you install the chassis, measure the space between the vertical mounting flanges (rails) on your
equipment rack to verify that the rack conforms to the measurements shown in the figure below.
Procedure
Step 1
Mark and measure the distance between two holes on the left and right mounting rails.
The distance should measure 18.31 inches ± 0.06 inches (46.5 cm ± 0.15 cm).
Measure the distance for pairs of holes near the bottom, middle and top of the equipment rack to
ensure that the rack posts are parallel.
Note
Step 2
Measure the space between the inner edges of the left front and right front mounting flanges on the equipment
rack.
The space must be at least 17.7 inches (45 cm) to accommodate the chassis, which is approximately 17.45 in.
(44.32 cm) wide, and fits between the mounting posts on the rack.

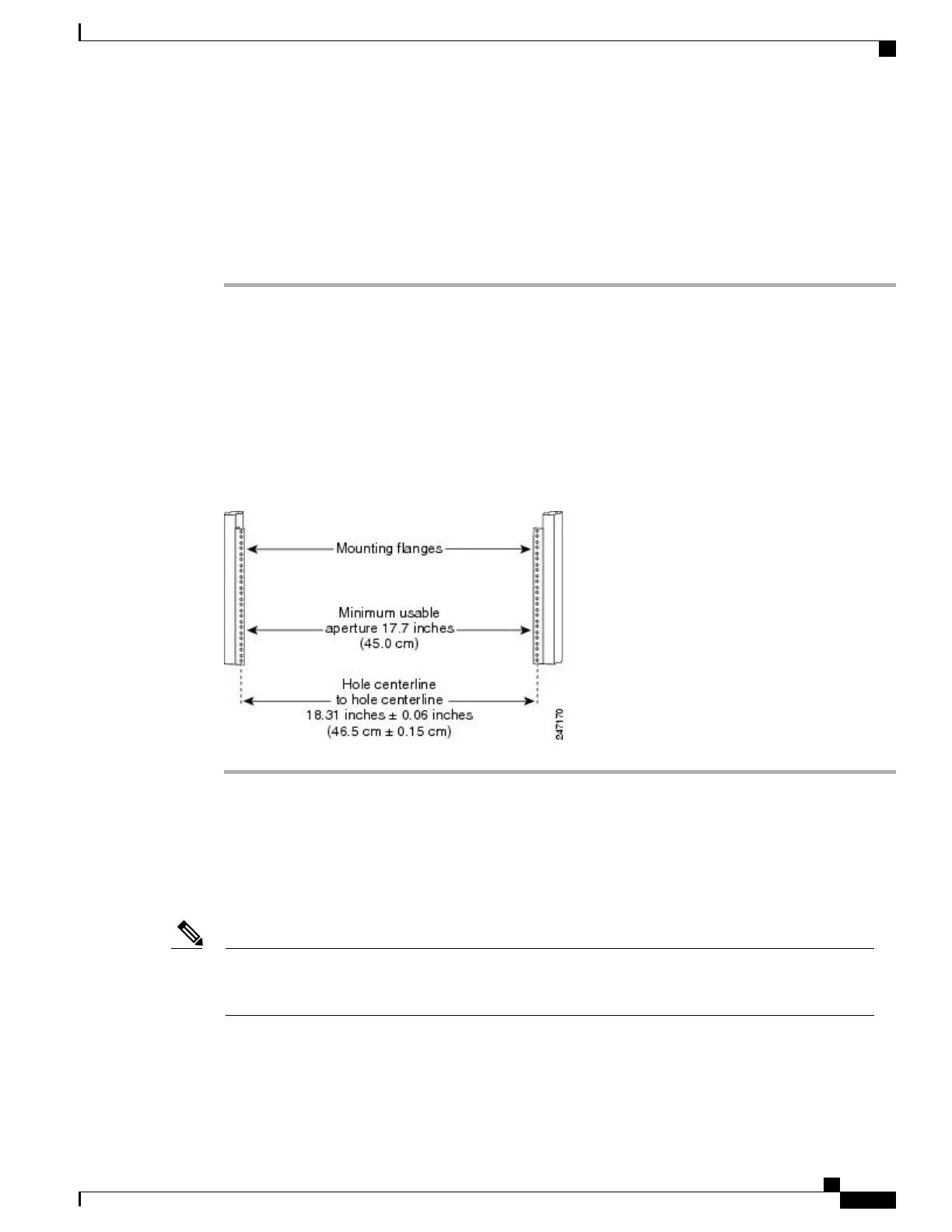

Figure 29: Verifying Equipment Rack Dimensions
Installing the Chassis in a Two-Post Rack
Before you install the chassis in the rack, make sure that you have the necessary tools and equipment (see
Before you Begin, on page 36).
Six mounting bracket screws (three per side) are provided to attach the chassis to the rack. If the bracket
holes do not line up with the rack rails, make sure that you attach a minimum of four screws (two screws
per bracket) on each side.
Note
To install the chassis in a two-post rack, follow these steps:
Cisco ASR 9001 and Cisco ASR 9001-S Routers Hardware Installation Guide
37
Unpacking and Installing the Chassis
Installing the Chassis in a Two-Post Rack
