Cisco ASR 9001 Hardware Installation Guide

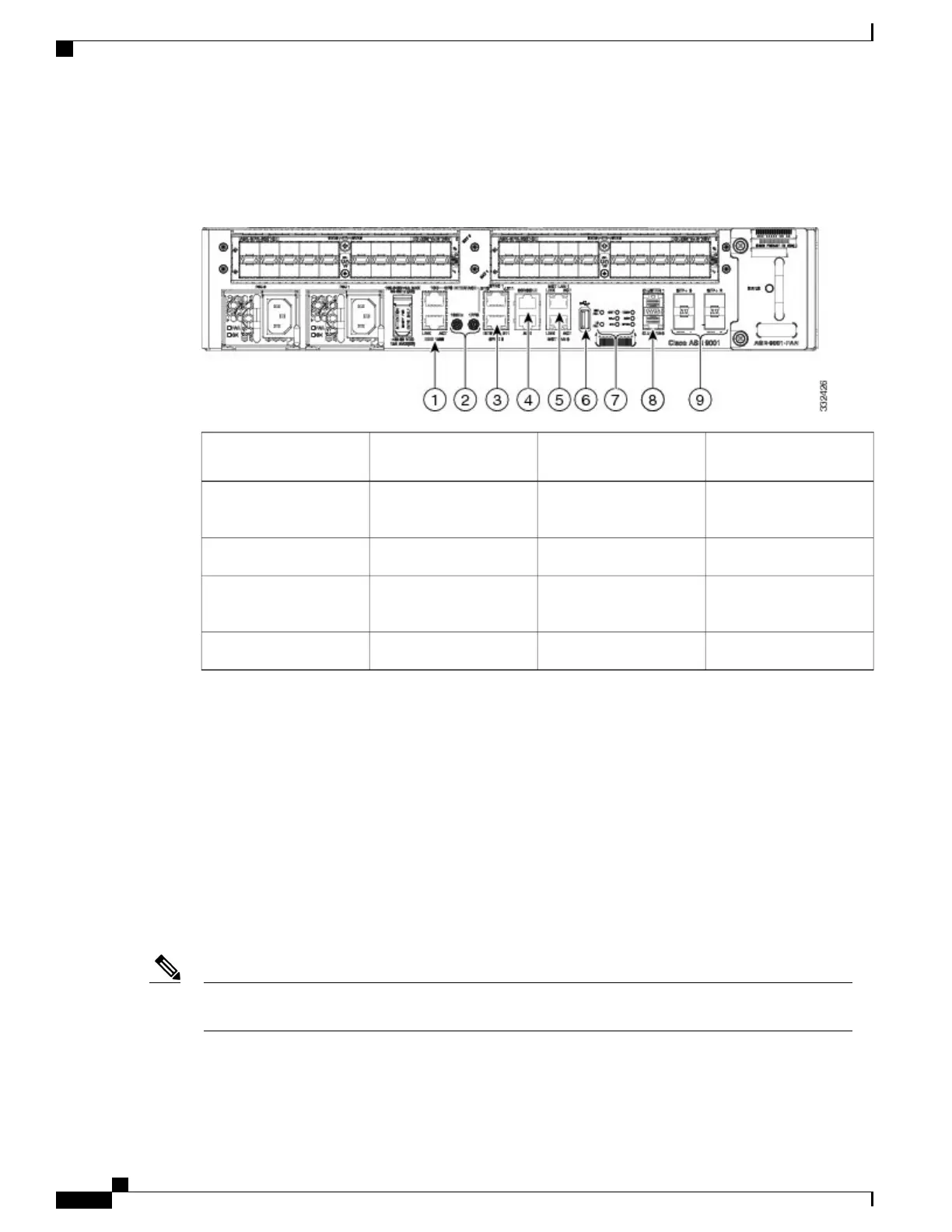

The following figure shows the front panel of the chassis and connectors of the fixed 4x10-Gigabit Ethernet
ports.
Figure 43: .4x10-Gigabit Ethernet SFP+ Ports
External USB port6Service LAN and ToD
ports
1
Eight discrete LED
indicators
710MHz and 1PPS
indicators
2
CLUSTER ports8SYNC (BITS/J.211) ports3
Fixed SFP+ ports9CONSOLE and AUX
ports
4
Management LAN ports5
Modular Port Adapters
The Cisco ASR 9001 Router has two bays that support the following Modular Port Adapters (MPAs):
•
20-Port Gigabit Ethernet Modular Port Adapter, on page 59
•
4-Port 10 Gigabit Ethernet Modular Port Adapter, on page 60
•
2-Port 10 Gigabit Ethernet Modular Port Adapter, on page 61
•
2-Port 40 Gigabit Ethernet Modular Port Adapter, on page 63
•
1-Port 40 Gigabit Ethernet Modular Port Adapter, on page 65
In the Cisco ASR 9001-S Router, one bay (MPA1) is disabled by default, and can be enabled by a license
upgrade.
Note
Cisco ASR 9001 and Cisco ASR 9001-S Routers Hardware Installation Guide
58
Installing Modules and Cables in the Chassis
Modular Port Adapters
