Cisco ASR 9001 Hardware Installation Guide

•
Adapter plates (three types, depending on the rack-type)
•
One cable management tray and cable guide
•
One grounding bracket
•
Two grounding lugs with four M4 screws (two screws per grounding lug)
•
Two 10-32 UNC screws and two M4 screws (for attaching the grounding bracket the Cisco ASR 9001
chassis)
Supported Rack Types and Adapter Plates
The following table lists the racks that support the optional air plenum kit and adapter plates.

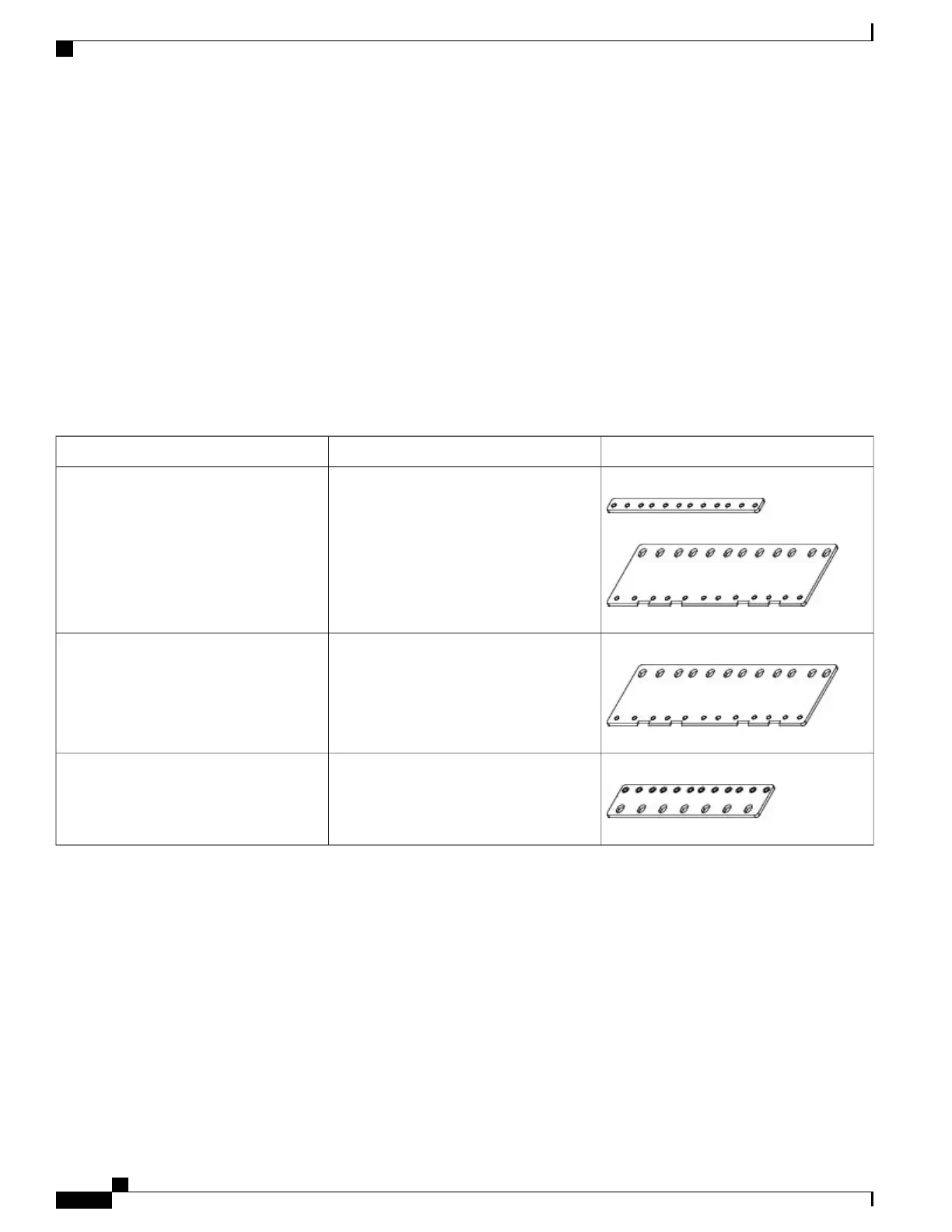

Table 8: Supported Rack Types and Adapter Plates
Adapter PlatesRack StandardRack Type
EIA standardFlat profile post19-inch and 23-inch rack, two-post or
four-post, 600 mm depth
EIA Standard23-inch cabinet, adjustable two-post or
four-post, 600 mm depth
ETSI21-inch cabinet
Installing the Air Plenum Kit
The air plenum kit is mounted in the rack before the Cisco ASR 9001 Router is installed. The steps for mounting
the air plenum kit in the rack are different, depending on the whether the kit is pre-assembled before mounting
it in the rack or assembled after the plenum base is mounted in the rack.
•
If the air plenum kit is pre-assembled before mounting it in the rack:
Cisco ASR 9001 and Cisco ASR 9001-S Routers Hardware Installation Guide
44
Unpacking and Installing the Chassis
Supported Rack Types and Adapter Plates
