For more information, see Connecting Serial Cables and Serial Cable Pinouts.
4-Port C37.94 Interface Module
The Cisco (A900-IMA4C3794) is a 4-port interface module that provides IEEE C37.94-2002 compliant Nx64
kbps optical interface ports to the router. The interfaces support 50/62.5 multimode fiber at 850nm. The
physical interfaces use 2.5mm ST connectors.
The front panel of the module consists of four ports of IEEE C37.94 interfaces.

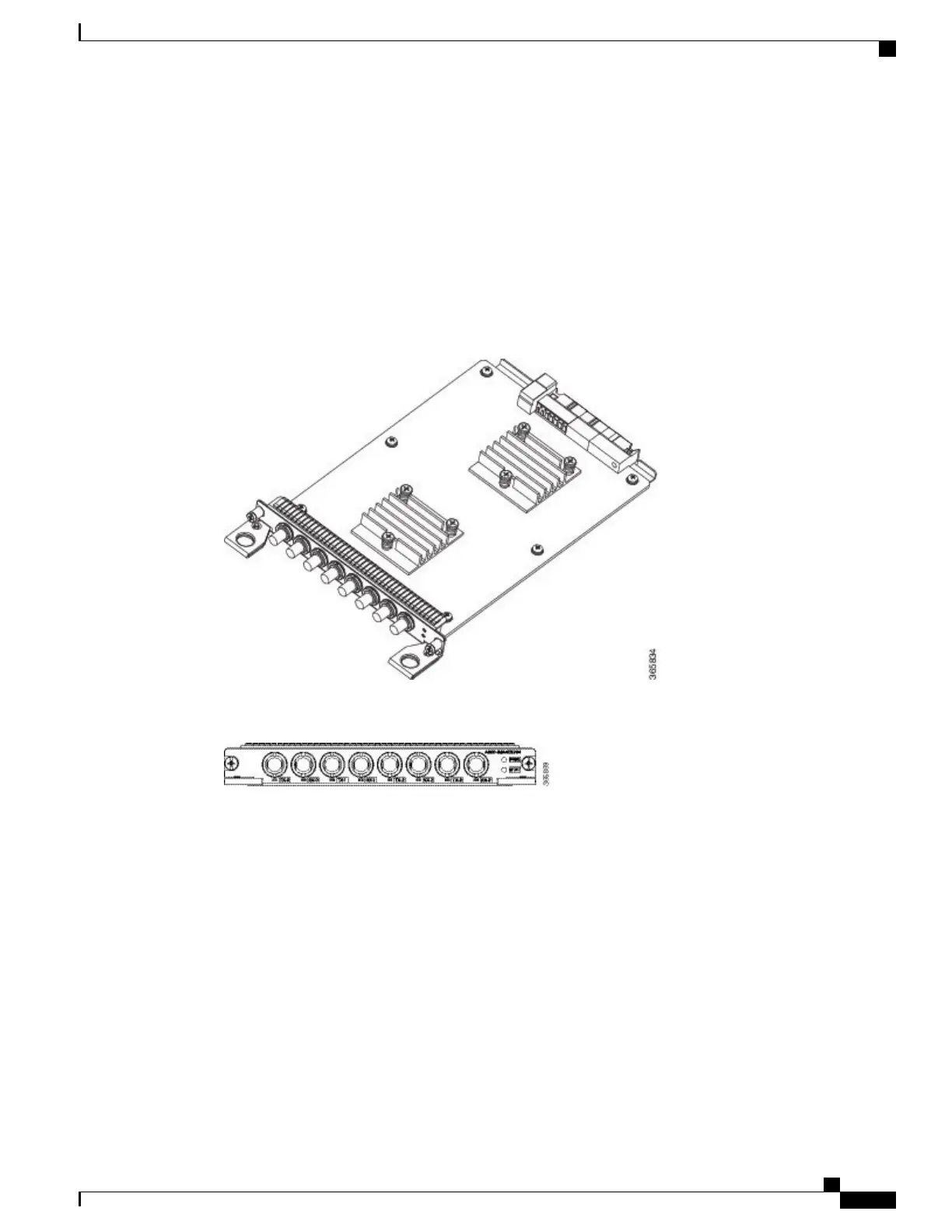

Figure 35: C37.94 Interface Module
Figure 36: C37.94 Interface Module Front Panel
For information on LEDs, see 4-Port C37.94 Interface Module LEDs.
For more information about installing the module, see Interface Module Installation.
Cisco ASR 903 Aggregation Services Router Hardware Installation Guide
43
Cisco ASR 903 Router Overview
Interface Modules
