Cisco ASR 903 Hardware Installation Guide

Do not use interface module and power supply ejector handles to lift the chassis; using the handles to lift the
chassis can deform or damage the handles.
Caution

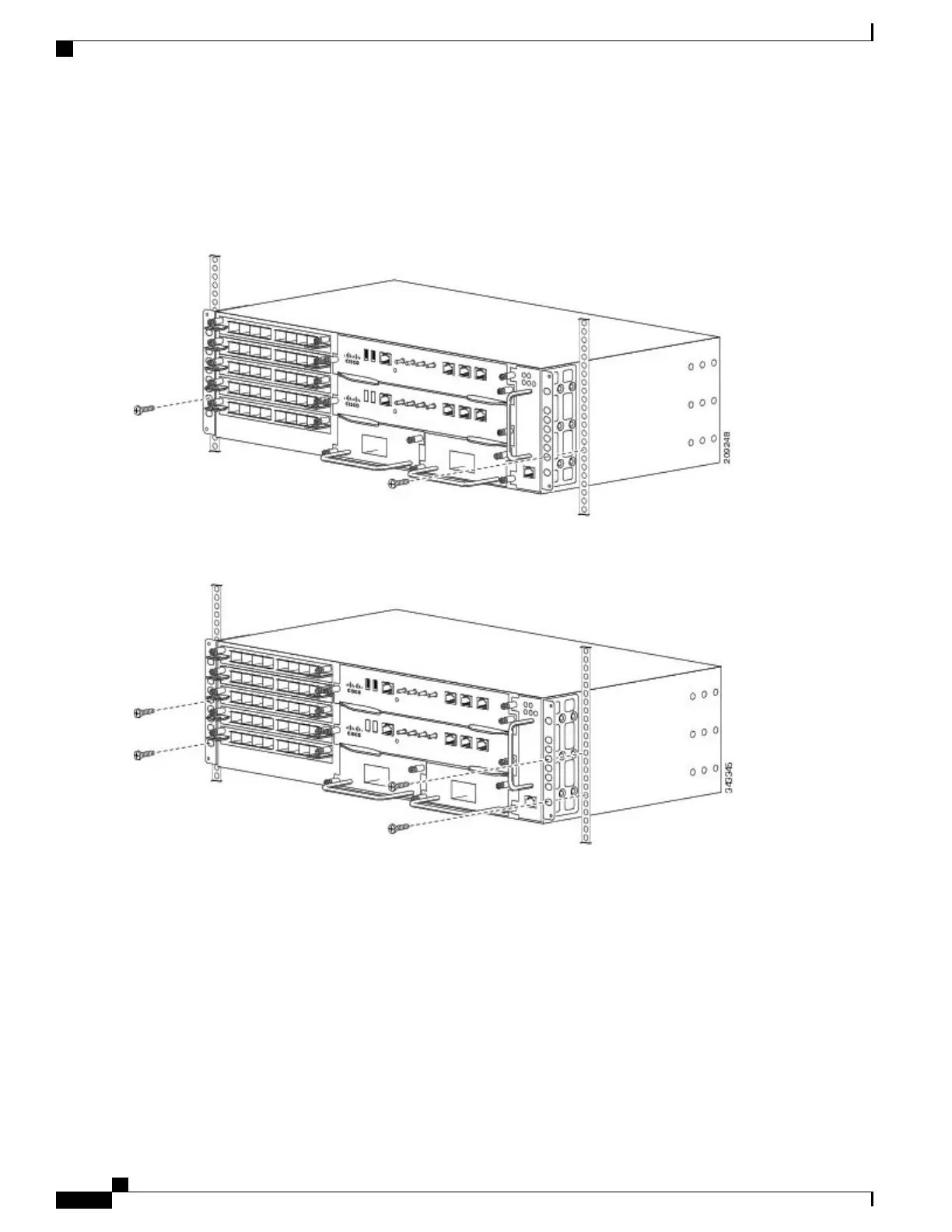

Figure 46: Installing the Chassis in a 19-inch EIA Rack
Figure 47: Installing the Chassis to support the Japanese JIS Rack Standard
Figure 48: Installing the Chassis in a 300 mm ETSI Cabinet
Cisco ASR 903 Aggregation Services Router Hardware Installation Guide
82
Installing the Cisco ASR 903 Router
Installing the Router Chassis in the Rack

Cisco ASR 903 Specifications

General

Form Factor	Modular
Storage Temperature	-40°C to 70°C (-40°F to 158°F)
Humidity	5% to 95% non-condensing
Redundancy	Yes, redundant power supplies and route processors
Operating System	Cisco IOS XE
Power Supply	AC or DC
Switching Capacity	240 Gbps
Operating Temperature	-40°C to 65°C (-40°F to 149°F)
MTBF	200, 000 hours
Supported Protocols	IPv4, IPv6, MPLS, L2VPN, L3VPN
Interfaces	Gigabit Ethernet, 10 Gigabit Ethernet, T1/E1
