e) Replace the top cover to the server.
f) Replace the server in the rack, replace cables, and then fully power on the server by pressing the Power button.

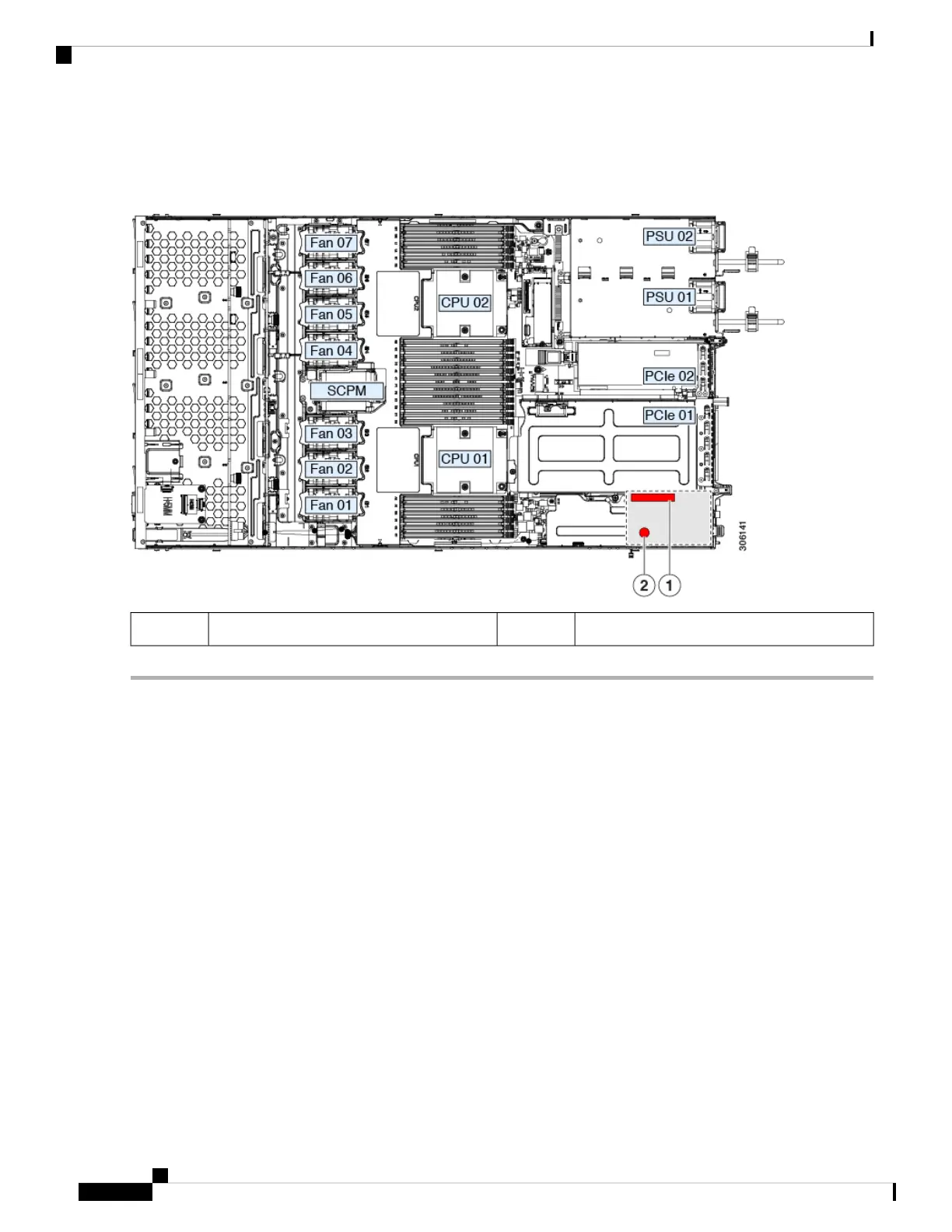

Figure 37: Location of the mLOM Card Socket Below the mRAID Riser
Position of mLOM card thumbscrew2Position of horizontal mLOM card socket1
Replacing an mRAID Riser (Riser 3)
The server has a dedicated internal riser that is used for either a Cisco modular storage controller card (RAID
or HBA) or the SATA interposer card for embedded software RAID. This riser plugs into a dedicated
motherboard socket and provides a horizontal socket for the installed card.
This riser can be ordered as the following options:
• UCSC-XRAIDR-220M5—Replacement unit for this mRAID riser.
• UCSC-MRAID1GB-KIT—Kit for first-time addition of this riser (includes RAID controller, supercap,
and supercap cable).
See also Replacing a SAS Storage Controller Card (RAID or HBA), on page 69.
See also Replacing the Supercap (RAID Backup), on page 73.
• UCSC-SATA-KIT-M5—Kit for first-time addition of this riser (includes SATA interposer for embedded
software RAID and SATA cables).
See also Replacing a SATA Interposer Card , on page 75.
Cisco Application Services Engine Hardware Installation Guide
66
Maintaining the Server
Replacing an mRAID Riser (Riser 3)
