D-Link DSL-G225 User Manual

6D-Link DSL-G225 Wireless N300 ADSL2+/VDSL2 Modem Router User Manual
Section 1 - Product Overview
Hardware Overview

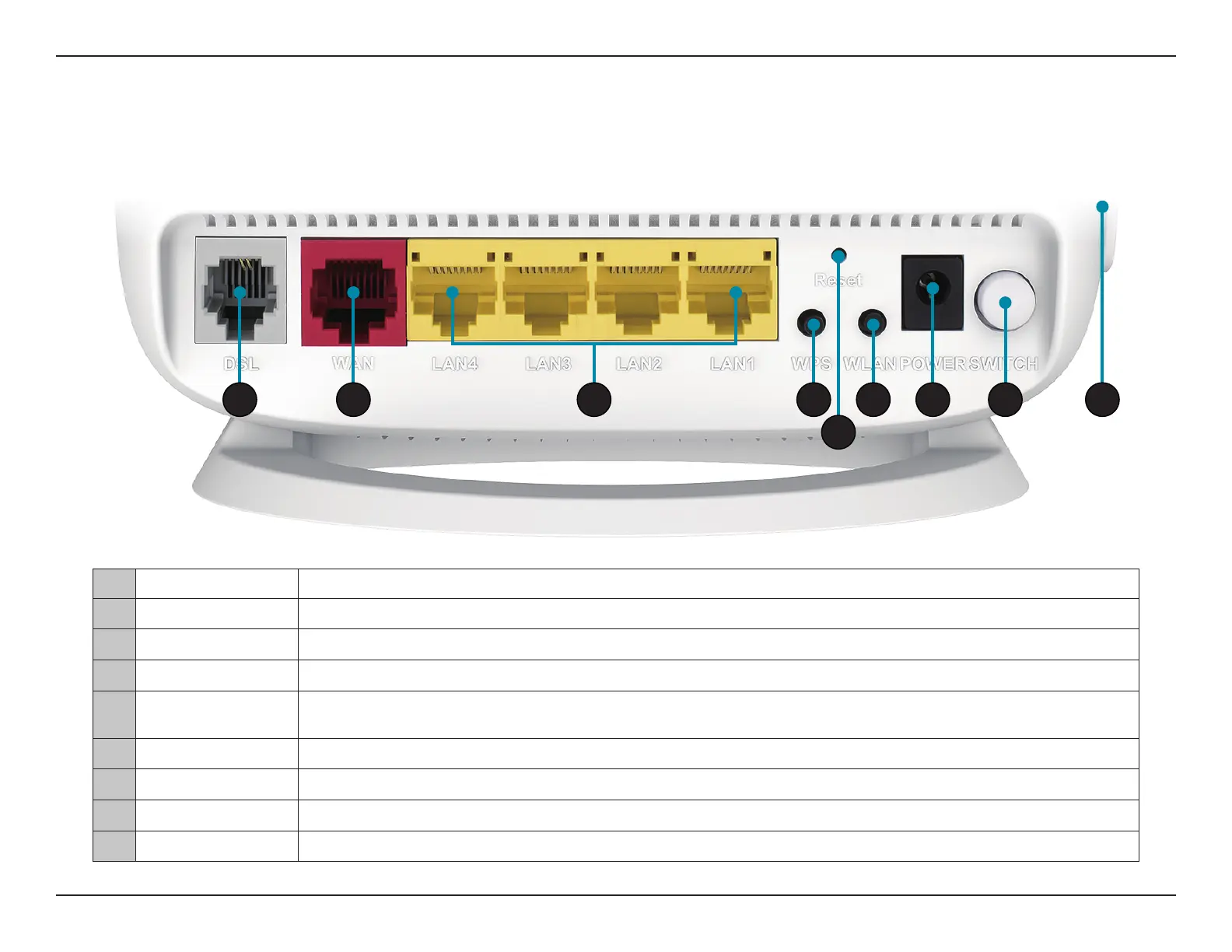

Back
1 DSL Port Connect to an DSL-enabled telephone line and with the supplied microlter/splitter.
2 WAN Port If using an external modem, connect your broadband modem to this port.
3 LAN Ports (1-4) Connect Ethernet devices such as computers, switches, storage (NAS) devices and game consoles.
4 WPS Button Press to start the WPS process and automatically create a secure connection to a WPS client.
5 Reset Button
Insert a paperclip in the hole on the bottom of the device located the serial number sticker and wait for
several seconds to reset the router to default settings.
6 Wireless On/O Press and hold this button for about 10 seconds to enable or disable the Wi-Fi network.
7 Power Connector Connector for the supplied power adapter.
8 Power Button Press to power the router on or o.
9 USB Port Connect a USB storage device to this port to share media to your network.
43 6 7
5
8 921

D-Link DSL-G225 Specifications

Power

input voltage	100~240 V
input frequency	50~60 Hz
output voltage	DC 12 V

Operating Environment

operating temperature	0 to 40 °C
non-operating temperature	-20 to 65 °C
operating humidity	0% - 90% non-condensing

Weight and Dimensions

dimensions	131.5 x 74.3 x 185.4 mm
weight	285 grams
