D-Link DSL-G225 User Manual

29D-Link DSL-G225 Wireless N300 ADSL2+/VDSL2 Modem Router User Manual
Section 4 - Conguration

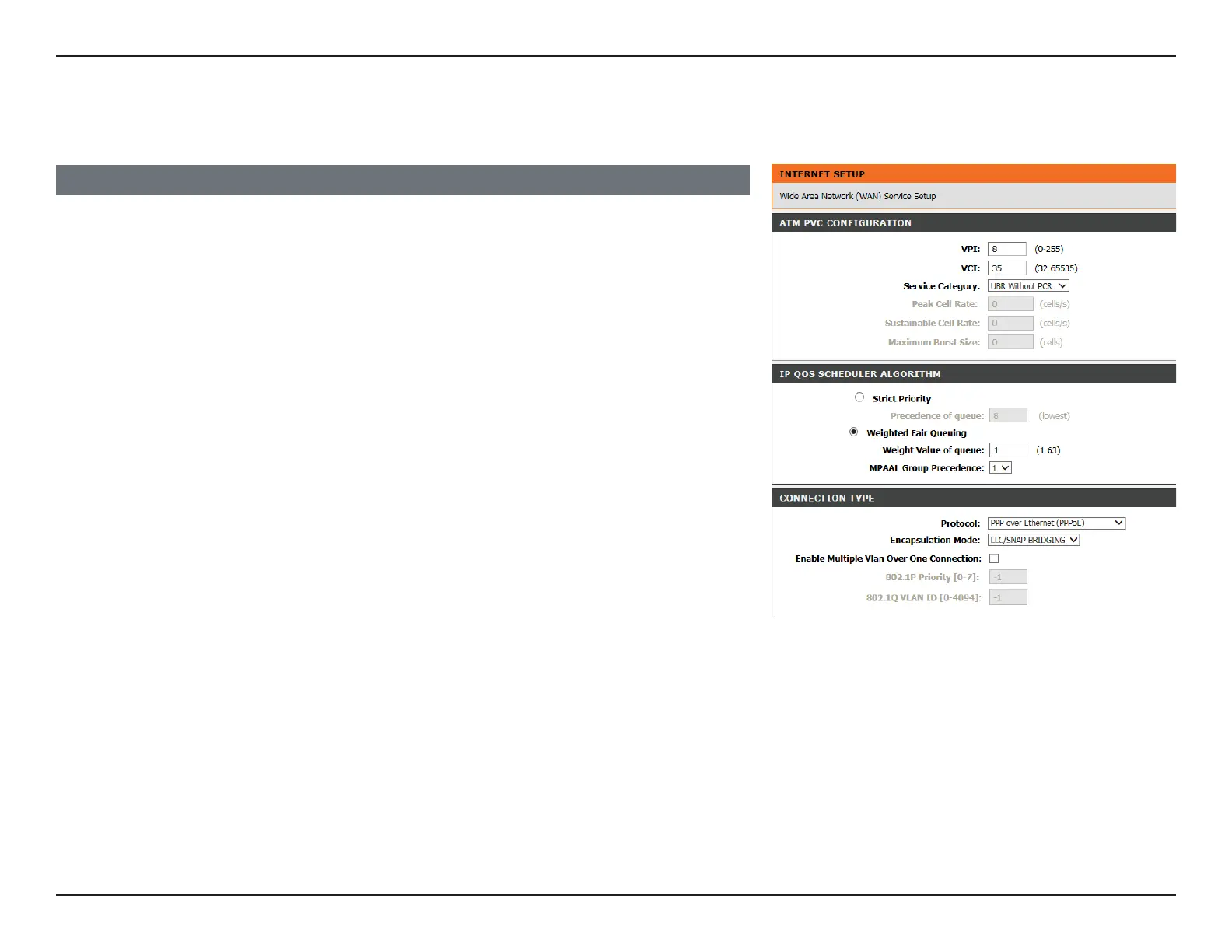

Add an ADSL WAN Connection
If you are adding an ADSL WAN connection you will be presented with the following conguration options.
VPI: Virtual path identifier (VPI) is the virtual path between two points
in an ATM network. Its valid value is between 0 and 255. Enter the
correct VPI provided by your ISP. By default, VPI is set to 8.
VCI: Virtual channel identifier (VCI) is the virtual channel between two
points in an ATM network. Its valid value is between 1 and 65535.
Enter the correct VCI provided by your ISP. By default, VCI is set to 8.
Service Category: Select the Quality of Service types for this Virtual Circuit. The ATM
QoS types include CBR (Constant Bit Rate), VBR (Variable Bit Rate)
and UBR (Unspecified Bit Rate). These QoS types are all controlled
by the parameters specified below, including PCR, SCR and MBS.
Peak Cell Rate: Peak cell rate (PCR) is the maximum rate at which cells can be
transmitted along a connection in the ATM network.
Sustainable Cell
Rate:
Sustainable cell rate (SCR) is the maximum rate that traffic can pass
over PVC without the risk of cell loss.
Maximum Burst
Size:
Maximum burst size (MBS) is the maximum number of cells that
can be transmitted at the PCR.
ATM PVC CONFIGURATION

D-Link DSL-G225 Specifications

Power

input voltage	100~240 V
input frequency	50~60 Hz
output voltage	DC 12 V

Operating Environment

operating temperature	0 to 40 °C
non-operating temperature	-20 to 65 °C
operating humidity	0% - 90% non-condensing

Weight and Dimensions

dimensions	131.5 x 74.3 x 185.4 mm
weight	285 grams
