ENGLISH
GB
80
The MODE key allows you to move on to the next items in the same
menu. Holding it down for at least 1 sec allows you to skip to previous
menu item.
The SET key allows you to leave the current menu.
Decreases the current parameter (if it is an editable parameter).
Increases the current parameter (if it is an editable parameter).
Holding down the “+” key or the “-” key allows the automatic increase/
decrease of the parameter selected. After the “+” key or the “-” key has
been held down for 3 seconds, the automatic increase/decrease speed
increases.
When the + key or the - key is pressed the selected value is
PRGL¿HGDQGVDYHGLPPHGLDWHO\LQWKHSHUPDQHQWPHPRU\
(EEprom). If the machine is switched off, even accidentally, in
this phase it does not cause the loss of the parameter that has
just been set.
The SET key is only for leaving the current menu and is not
necessary for saving the changes made. Only in particular
cases described in chapter 0 are some values updated by
pressing “SET” or “MODE”.

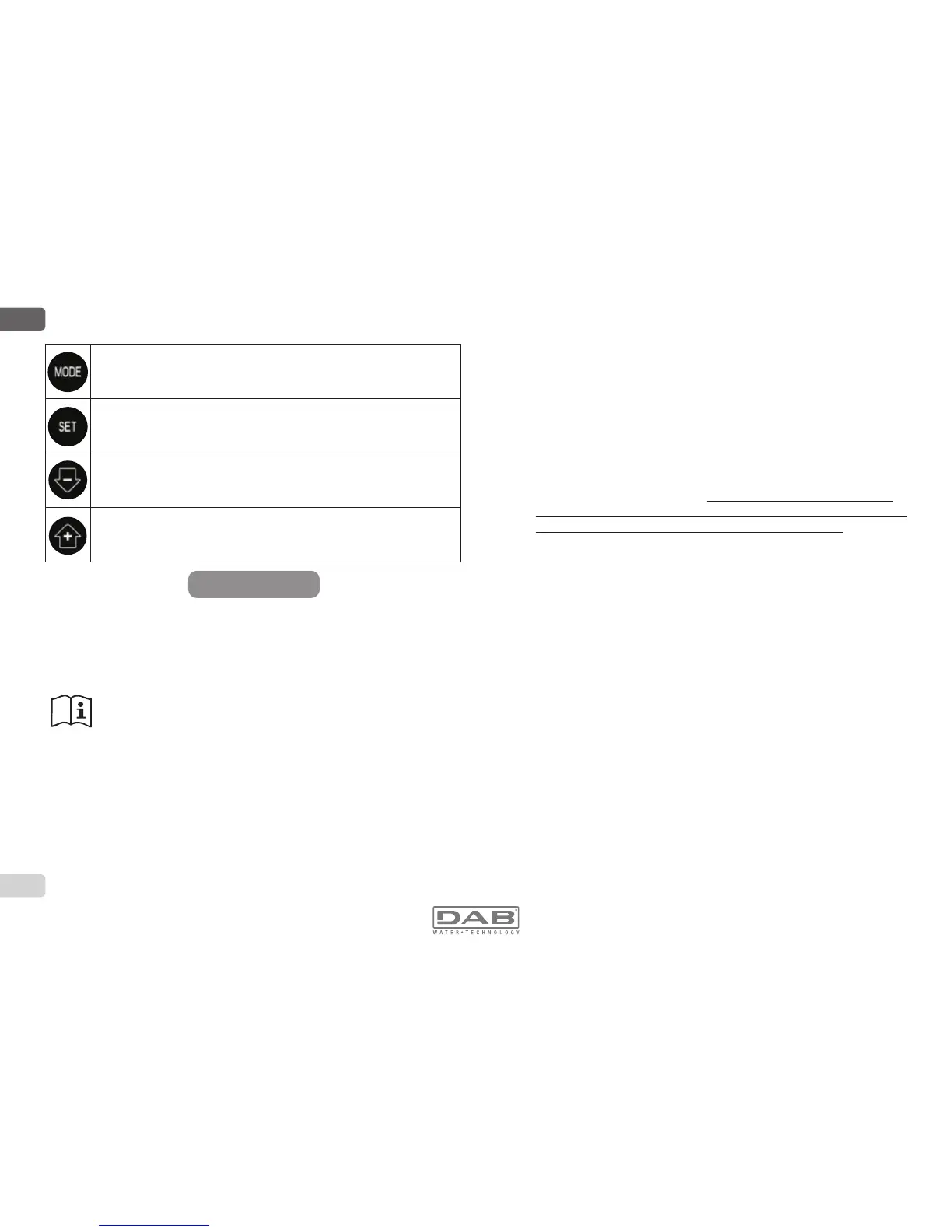

Table 4: Key functions
Warning leds
3RZHU
:KLWHOHG/LWZLWKD¿[HGOLJKWZKHQWKHPDFKLQHLVSRZHUHG
Blinking when the machine is disabled (see par. 5.5).
$ODUP
5HGOHG/LWZLWKD¿[HGOLJKWZKHQWKHPDFKLQHLVEORFNHGE\DQ
error.
&RPPXQLFDWLRQ
%OXHOHG/LWZLWKD¿[HGOLJKWZKHQFRPPXQLFDWLRQZLUHOHVVLV
used and is working correctly. It blinks with a slow frequency if,
ZKHQFRQ¿JXUHGWRZRUNLQFRPPXQLFDWLRQPRGHFRPPXQLFDWLRQ
is not available, is not detected, or there are problems. It blinks
with a high frequency during association with other wireless
devices. Off if communication is not used.
Menus
The complete structure of all the menus and of all the items of which they
are composed is shown in Table 6.
Access to the menus
The various menus can be accessed from the main menu in two ways:
1 - Direct access with a combination of keys
2 - Access by name with a drop-down menu
6.1 Direct Access with a Combination of Keys
The desired menu can be accessed directly by pressing simultaneously
the appropriate combination of keys for the required time (for example
MODE SET to enter the Setpoint menu) and the various items in the
menu are scrolled with the MODE key.
Table 5 shows the menus that can be reached with the combinations of
keys.
