Dahua NVR6000 Series User Manual

SN Icon Name Function
6
Power button
Press it once to turn on the device.
Press it for a long time to turn off the device (Usually
we do not recommend).
Press power button for a long time or pull out the power
cable may result in device auto restart.

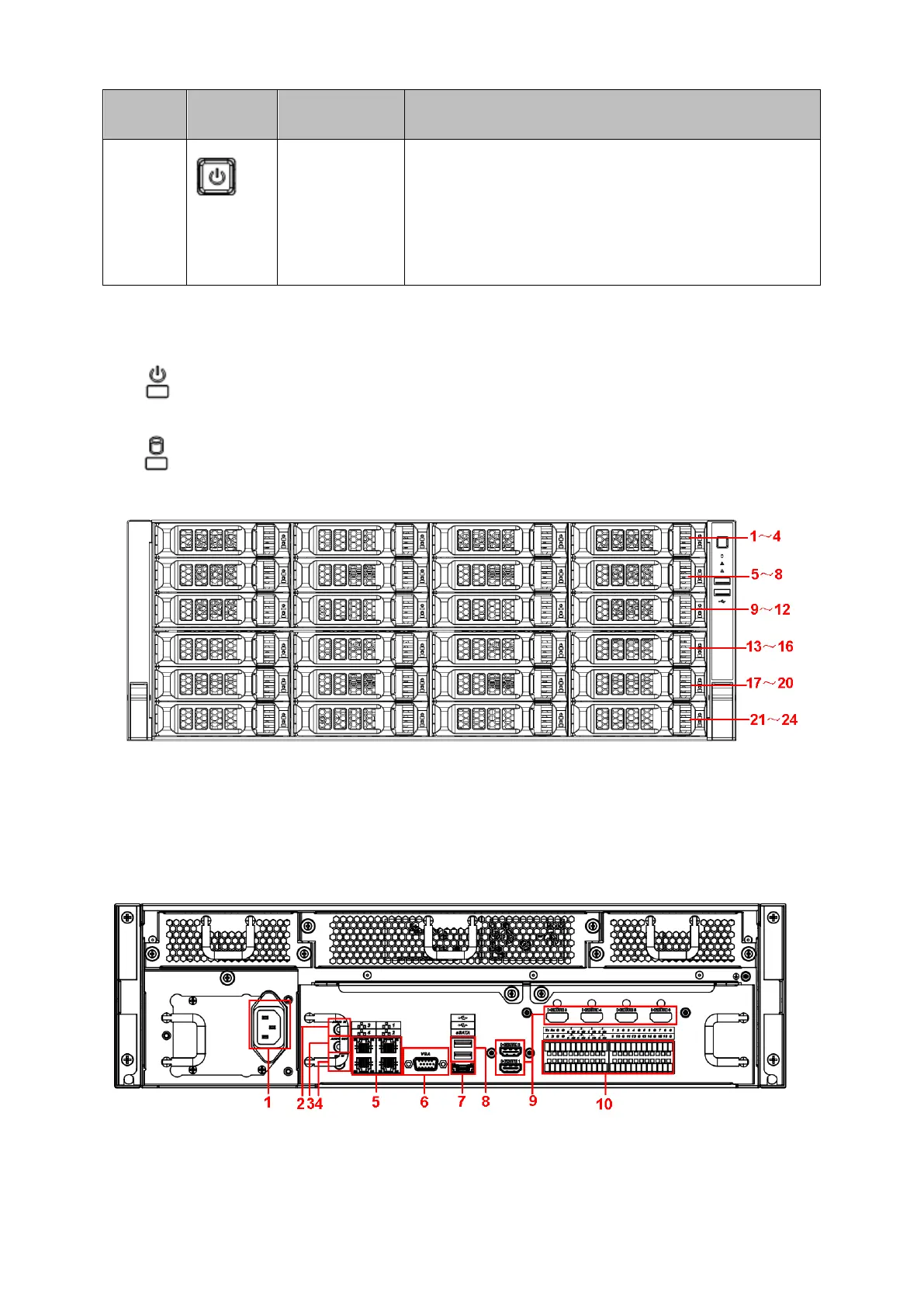

After you remove the front panel, you can see there are 24 HDDs. From the left to the right and from the
top to the bottom, it ranges from 1~4, 5~8, 9~12, 13~16, 17～20, 21～24. See Figure 2-7.
You can see there are two indicator lights on the HDD bracket.

: The power indicator light is at the top. The light is yellow after you connected the device to the
power.

: The read-write indicator light is at the bottom. The blue light flashes when system is reading or
writing the data.
Figure 2-7
2.2 Rear Panel
2.2.1 NVR6000 Series
The general series rear panel of NVR6000/NVR6064 is shown as in Figure 2-8.
Figure 2-8
The redundant power series rear panel of NVR6000/NVR6064 is shown as in Figure 2-9.
18
