Dahua NVR6000 Series User Manual

In Figure 3-34, input tour value and then click to call a tour. Click again to stop call.
Call Scan
In Figure 3-34, input Scan value and then click
to call a tour. Click again to stop call.
Rotate
In Figure 3-34, click
to enable the camera to rotate.
System supports preset, tour, pattern, scan, rotate, light and etc function.
Note:
 Preset, tour and pattern all need the value to be the control parameters. You can define it as you
require.
 You need to refer to your camera user’s manual for Aux definition. In some cases, it can be used for
special process.

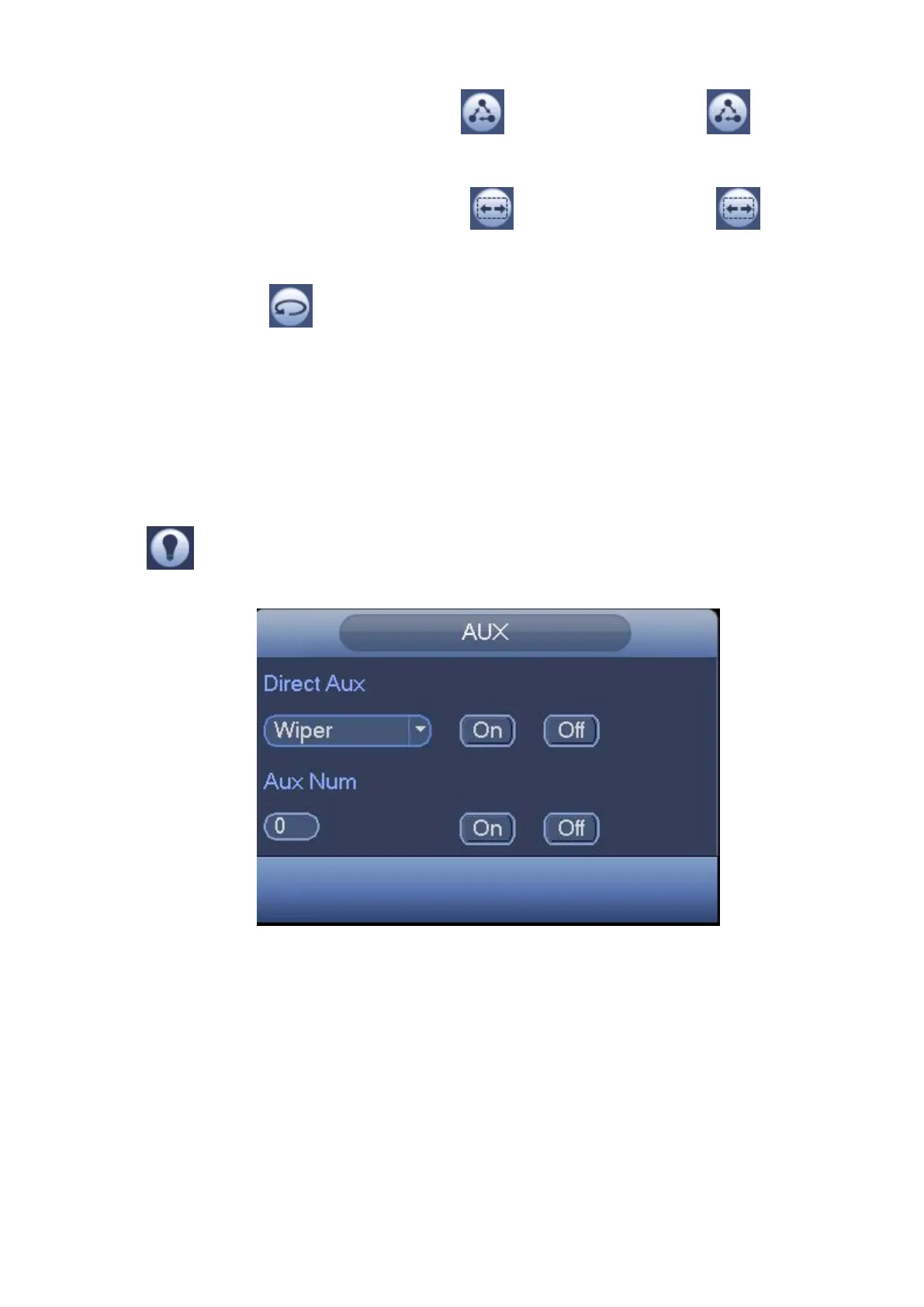

Aux
Click
, system goes to the following interface. The options here are defined by the protocol. The aux
number is corresponding to the aux on-off button of the decoder. See Figure 3-40.
Figure 3-40
3.7 Record and Snapshot
The record/snapshot priority is: Alarm->Motion detect->Schedule.
3.7.1 Encode
3.7.1.1 Encode
Encode setting is to set IPC encode mode, resolution, bit stream type and etc.
From Main menu->Setting->System->Encode, you can see the following interface. See Figure 3-41.
56
