4. ARC480A8
Refer to the following pages for details.

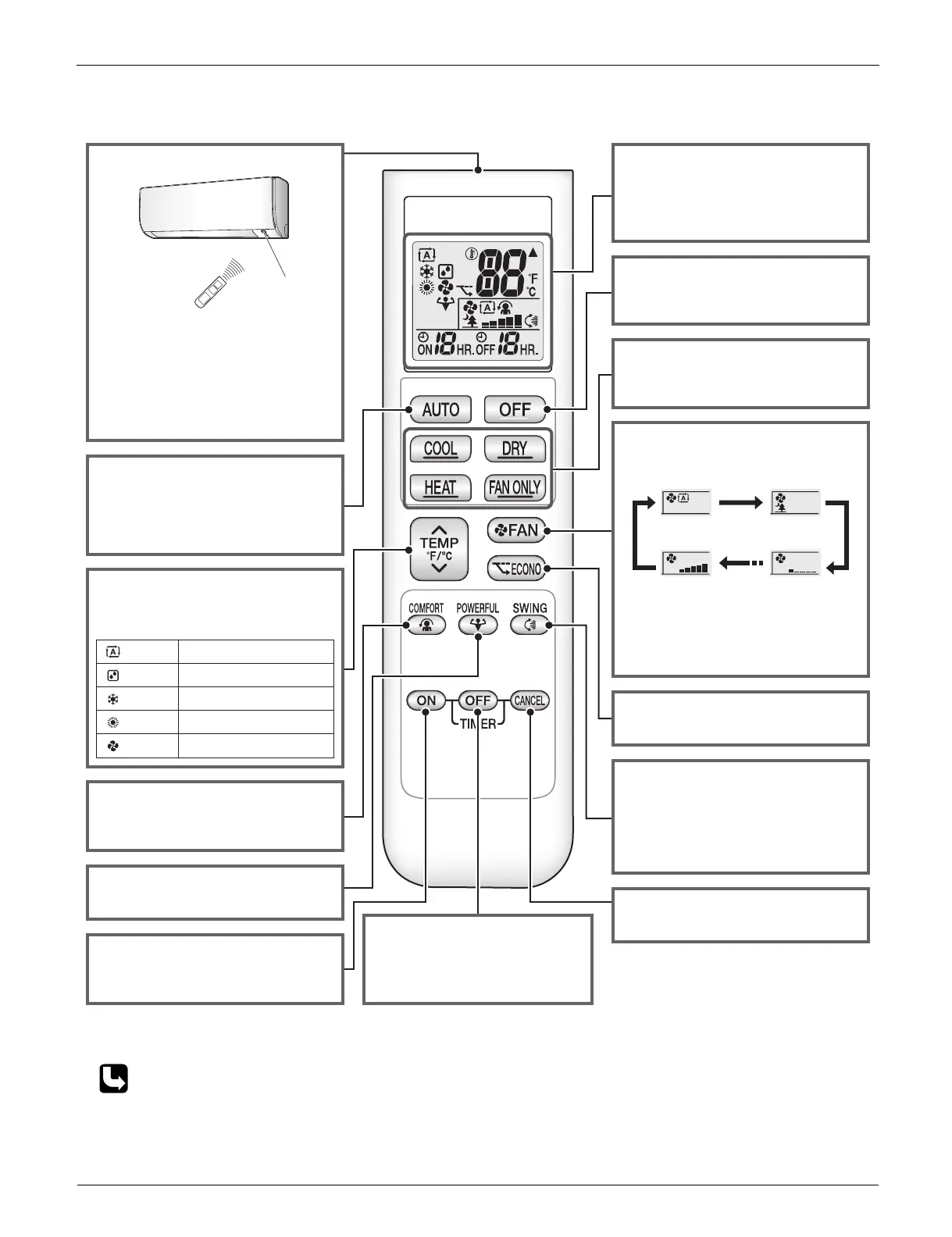

< ARC480A8 >
Signal transmitter
Receiver
• To use the remote controller, aim the
transmitter at the indoor unit. If there
is anything blocking the signals
between the unit and the remote
controller, such as a curtain, the unit
may not operate.
• The maximum transmission distance
is about 23 ft (7 m).
TEMPERATURE
adjustment button
: AUTO
: DRY
: COOL
: HEAT
: FAN
64 ~ 86˚F (18 ~ 30˚C)
Not available
64 ~ 90˚F (18 ~ 32 ˚C)
50 ~ 86˚F (10 ~ 30 ˚C)
Not available
• Changes the temperature setting.
• Automatically selects an appropriate
operation mode (COOL or HEAT)
based on the indoor temperature and
starts the operation.
AUTO
1
button
• Starts COMFORT AIRFLOW
operation.
COMFORT
2
button
• Starts ECONO operation.
ECONO
4
button
TIMER CANCEL button
• Cancels the timer setting.
• Adjusts the airflow direction.
• When you press the SWING button,
the flap moves up and down. The flap
stops when you press the SWING
button again.
SWING
5
button
POWERFUL
3
button
• Starts POWERFUL operation.
ON TIMER button
• Adjusts the ON TIMER setting.
• The timer can be set 1 ~ 12 hours.
Direct operation buttons
• Starts the COOL, DRY, HEAT or FAN
ONLY operation.
FAN setting button
AUTO Indoor unit quiet
Airflow rate 1-5 (Low to High)
• Selects the airflow rate setting every
time you press this button.
• In indoor unit quiet operation,
operation sound becomes weak.
(The airflow rate also decreases.)
• In DRY operation, the airflow rate
setting is not available.
OFF button
• Press this button to stop the
operation.
Display (LCD)
• Displays the current settings.
(In this illustration, each section is
shown with all its displays on for the
purpose of explanation.)
• Adjusts the ON TIMER setting.
• The timer can be set 1 ~ 12hours.
OFF TIMER button
(NIGHT SET mode)
To Next Page
