SiUS091601EA Control Specification
Part 4 Functions and Control 82

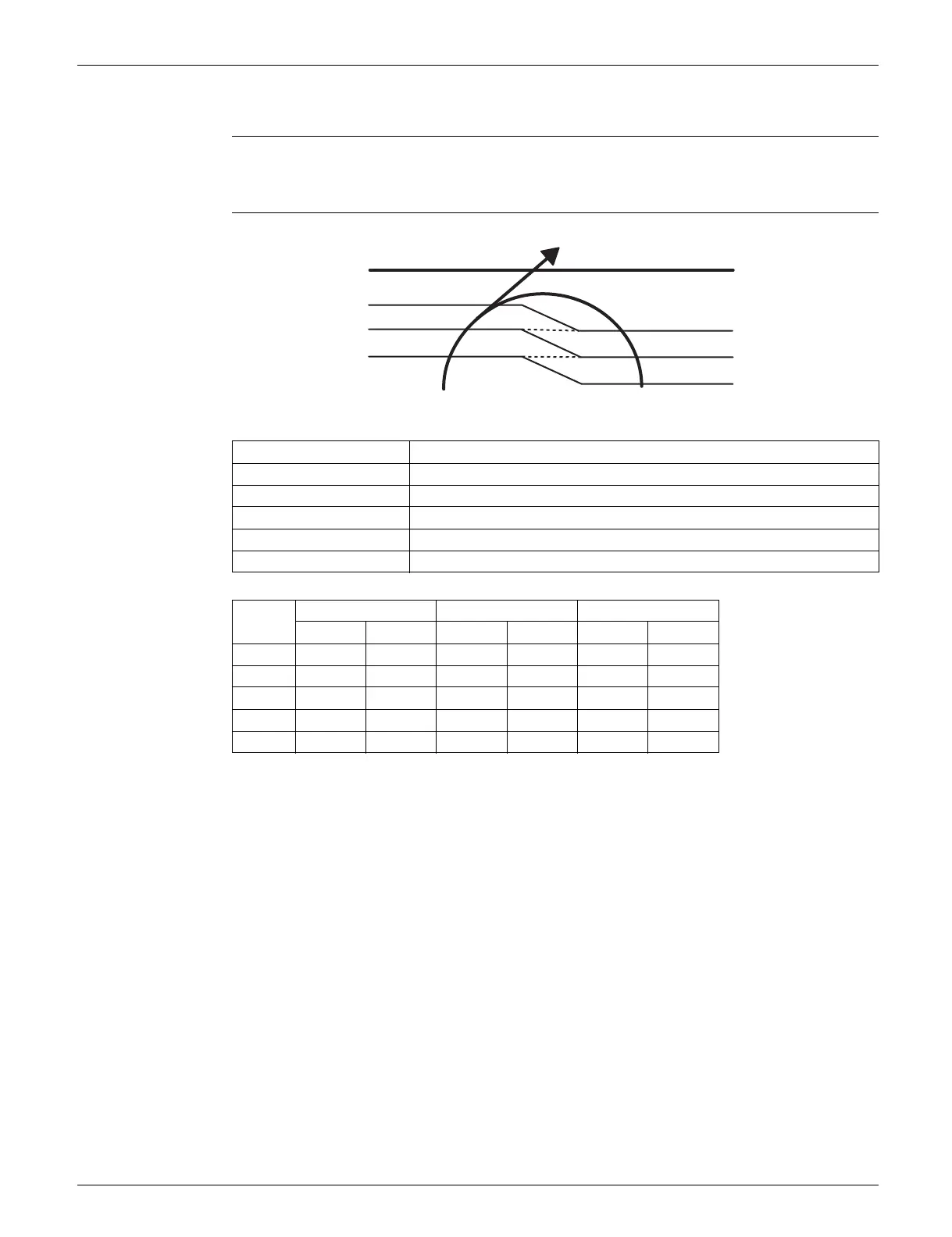

5.4 Discharge Pipe Temperature Control
Outline The discharge pipe temperature is used as the internal temperature of the compressor. If the
discharge pipe temperature rises above a certain level, the upper limit of frequency is set to keep
the discharge pipe temperature from rising further.
Details
Zone Control
Stop zone When the temperature reaches the stop zone, the compressor stops.
Dropping zone The upper limit of frequency decreases.
Keep zone The upper limit of frequency is kept.
Up zone The upper limit of frequency increases.
Reset zone The upper limit of frequency is canceled.
09 class 12/18/24 class 15 class
(°C) (°F) (°C) (°F) (°C) (°F)
A 110 230.0 120 248.0 110 230.0
B 103 217.4 111 231.8 103 217.4
C 98 208.4 109 228.2 101.5 214.7
D 93 199.4 107 224.6 100 212.0
E 88 190.4 107 224.6 95 203.0
(R25005)
Discharge pipe
temperature
Stop zone
Dropping zone
Keep zone
Up zone
Reset zone
E
A
B
C
D
To Next Page
