Service Diagnosis SiUS091601EA
111 Part 6 Service Diagnosis
3. Service Diagnosis
3.1 ARC480 Series
3.1.1 Method 1
1. When TIMER CANCEL button is held down for 5 seconds, 00 is displayed on the temperature
display screen.
2. Press TIMER CANCEL button repeatedly until a long beep sounds.
R6000690
1. A short beep or two consecutive beeps indicate non-corresponding codes.
2. To return to the normal mode, hold TIMER CANCEL button down for 5 seconds. When the
remote controller is left untouched for 60 seconds, it also returns to the normal mode.
3. Not all the error codes are displayed. When you cannot find the error code, try method 2.
Refer to page 112.
The code indication changes in the sequence shown below.

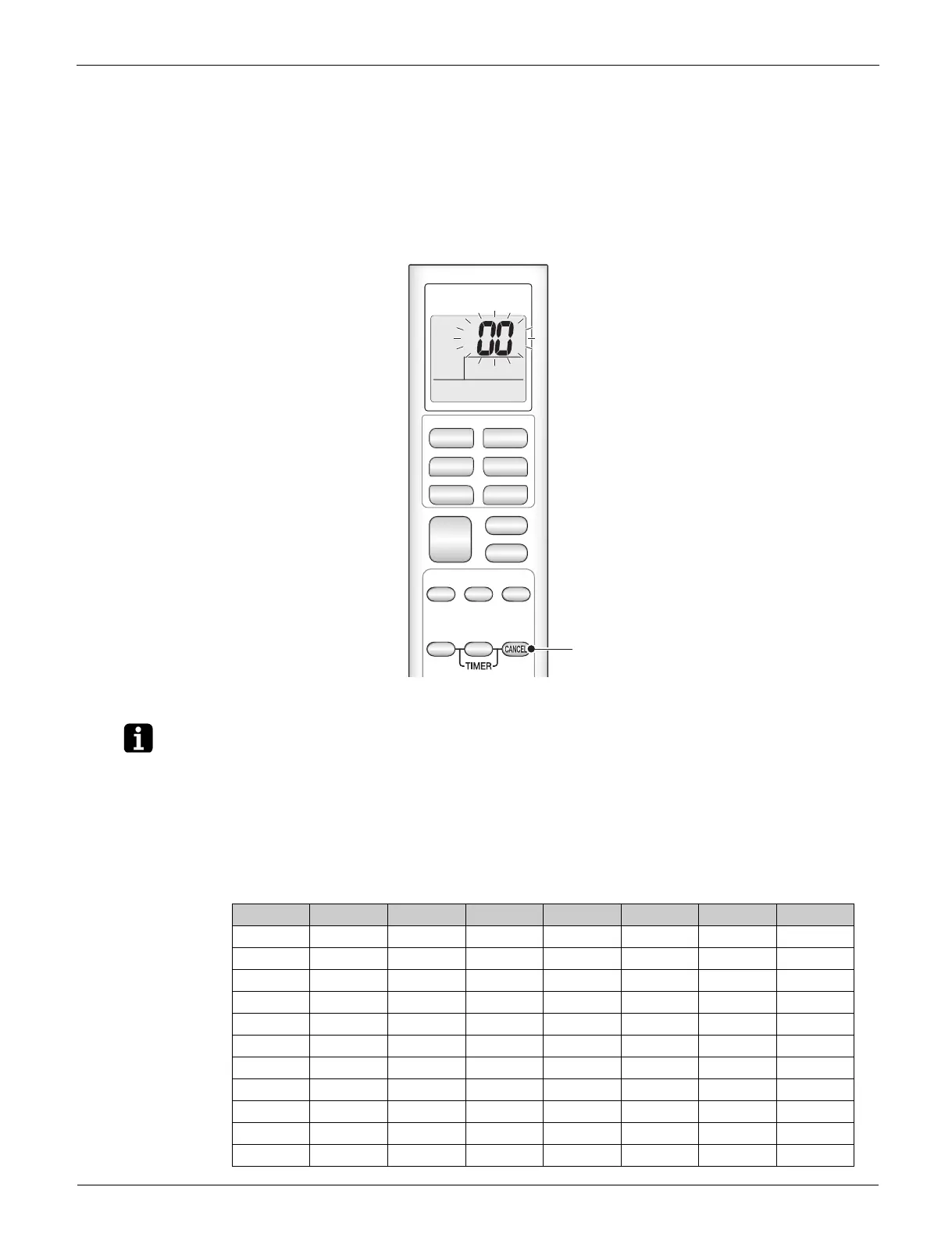

ARC480A8
<ARC480 Series>
TIMER CANCEL button
No. Code No. Code No. Code No. Code
1 00 12 H0 23 J3 34 H7
2 A5 13 A6 24 J6 35 U2
3 E7 14 U0 25 J8 36 EA
4 F3 15 C7 26 E5 37 AH
5 F6 16 A3 27 A1 38 FA
6 L3 17 H8 28 E1 39 E8
7 L4 18 H9 29 UA 40 CH
8 L5 19 C9 30 U3 41 J9
9 U4 20 CC 31 UF 42 E3
10 E6 21 C4 32 UH 43 H3
11 H6 22 C5 33 P4
To Next Page
