2. ARC466A21
Refer to the following pages for details.

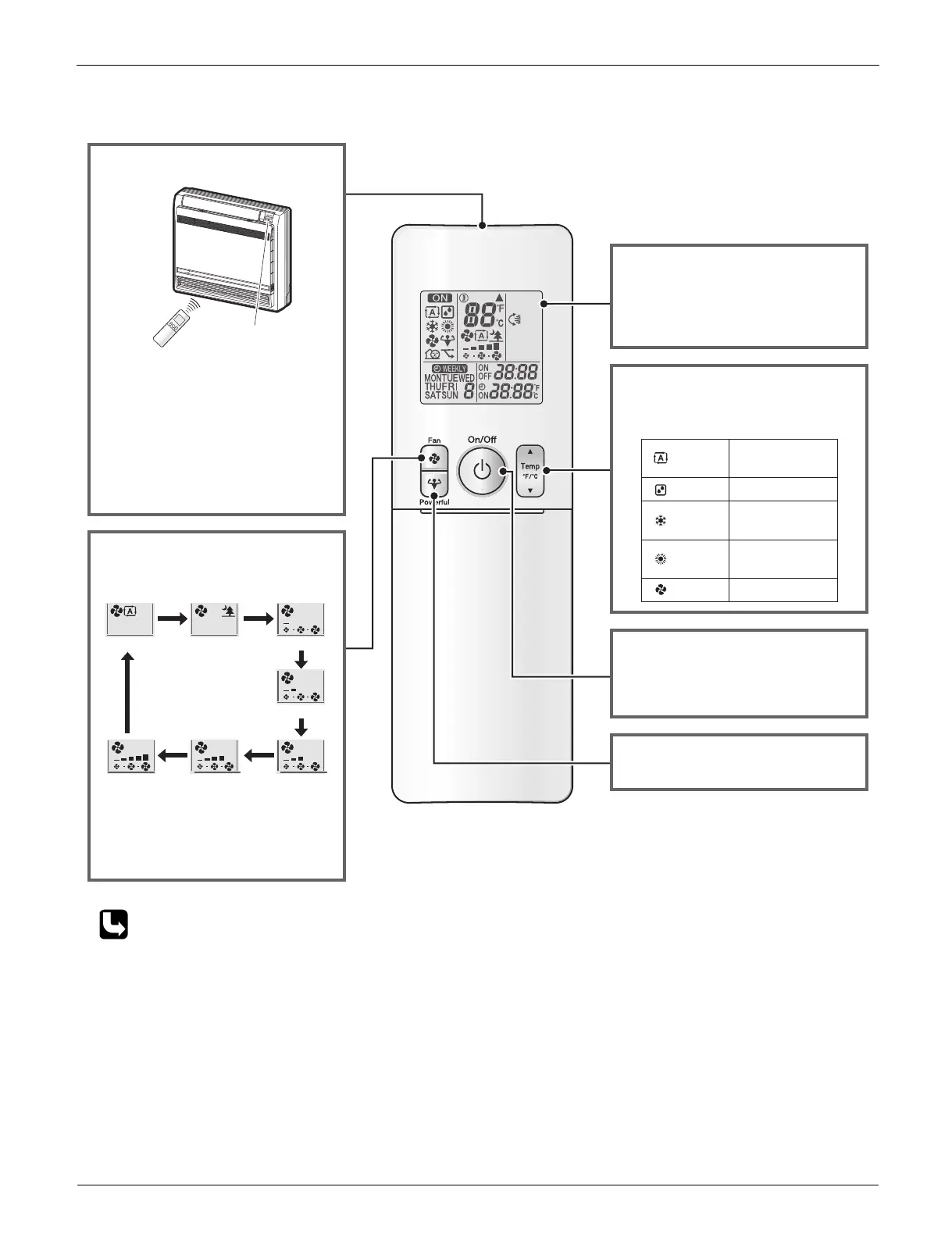

< ARC466A21 >
(R24597)
Signal transmitter
• To use the remote controller, aim the
transmitter at the indoor unit. If there
is anything blocking the signals
between the unit and the remote
controller, such as a curtain, the unit
may not operate.
• The maximum transmission distance
is about 23 ft (7 m).
Receiver
Auto Indoor unit quiet Low
Middle low
MiddleMiddle highHigh
Fan setting button
• In indoor unit quiet operation,
operation sound becomes weak.
(The airflow rate also decreases.)
• In DRY operation, the airflow rate
setting is not available.
• Selects the airflow rate setting
every time you press this button.
Display (LCD)
• Displays the current settings.
(In this illustration, each section is
shown with all its displays on for the
purpose of explanation.)
• Changes the temperature setting.
Temperature
adjustment buttons
: AUTO
: DRY
: COOL
: HEAT
: FAN
64 ~ 86 °F
(18 ~ 30 °C)
64 ~ 90 °F
(18 ~ 32 °C)
50 ~ 86 °F
(10 ~ 30 °C)
Not available
Not available
On/Off button
• Press this button once to start
operation.
Press once again to stop it.
Powerful
1
button
• Starts POWERFUL operation.
1 POWERFUL operation P.57
