Daikin FDMQ-R Series Service Manual

Piping Diagrams SiUS091601EA
221 Part 8 Appendix

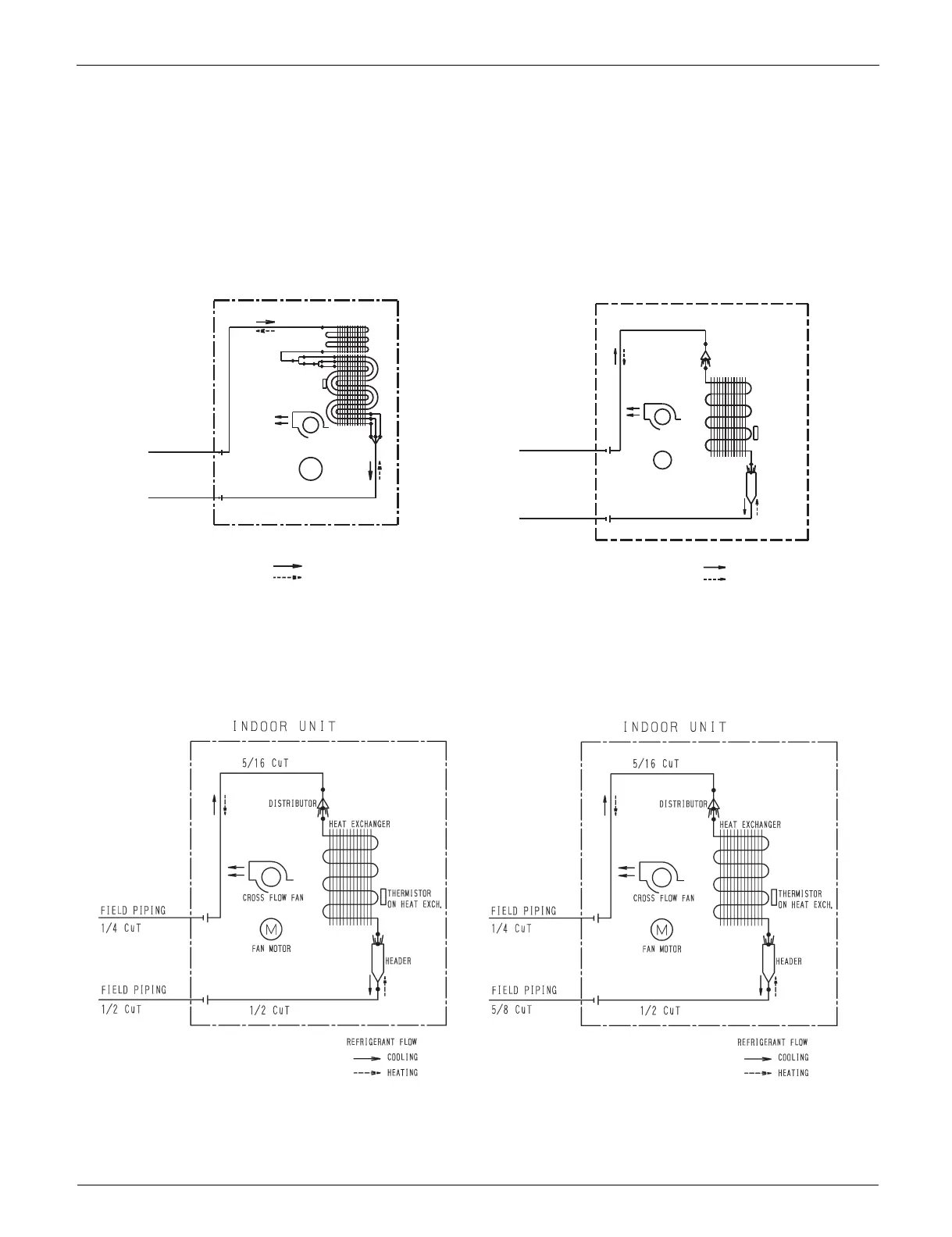

1. Piping Diagrams
1.1 Indoor Unit
FTX09/12NMVJU FTX15NMVJU
FTX18UVJU FTX24UVJU
4D091708A
INDOOR UNIT
HEAT EXCHANGER
1/4 CuT
CROSS FLOW FAN
M
FAN MOTOR
3/8 CuT
REFRIGERANT FLOW
COOLING
HEATING
THERMISTOR
ON HEAT EXCH.
SINGLE UNION
JOINT
SINGLE UNION
JOINT
FIELD PIPING
(
1/4 CuT
)
FIELD PIPING
(
3/8 CuT
)
4D091769C
DISTRIBUTOR
M
HEADER
COOLING
HEATING
INDOOR UNIT
1/4 CuT
HEAT EXCHANGER
CROSS FLOW FAN
FAN MOTOR
THERMISTOR
ON HEAT EXCH.
FIELD PIPING
1/4 CuT
FIELD PIPING
1/2 CuT
1/2 CuT
REFRIGERANT FLOW
4D074609A
4D074608A
