SiUS091601EA Wireless Remote Controller Receiver

Part 3 Printed Circuit Board Connector Wiring Diagram 32

2. Wireless Remote Controller Receiver

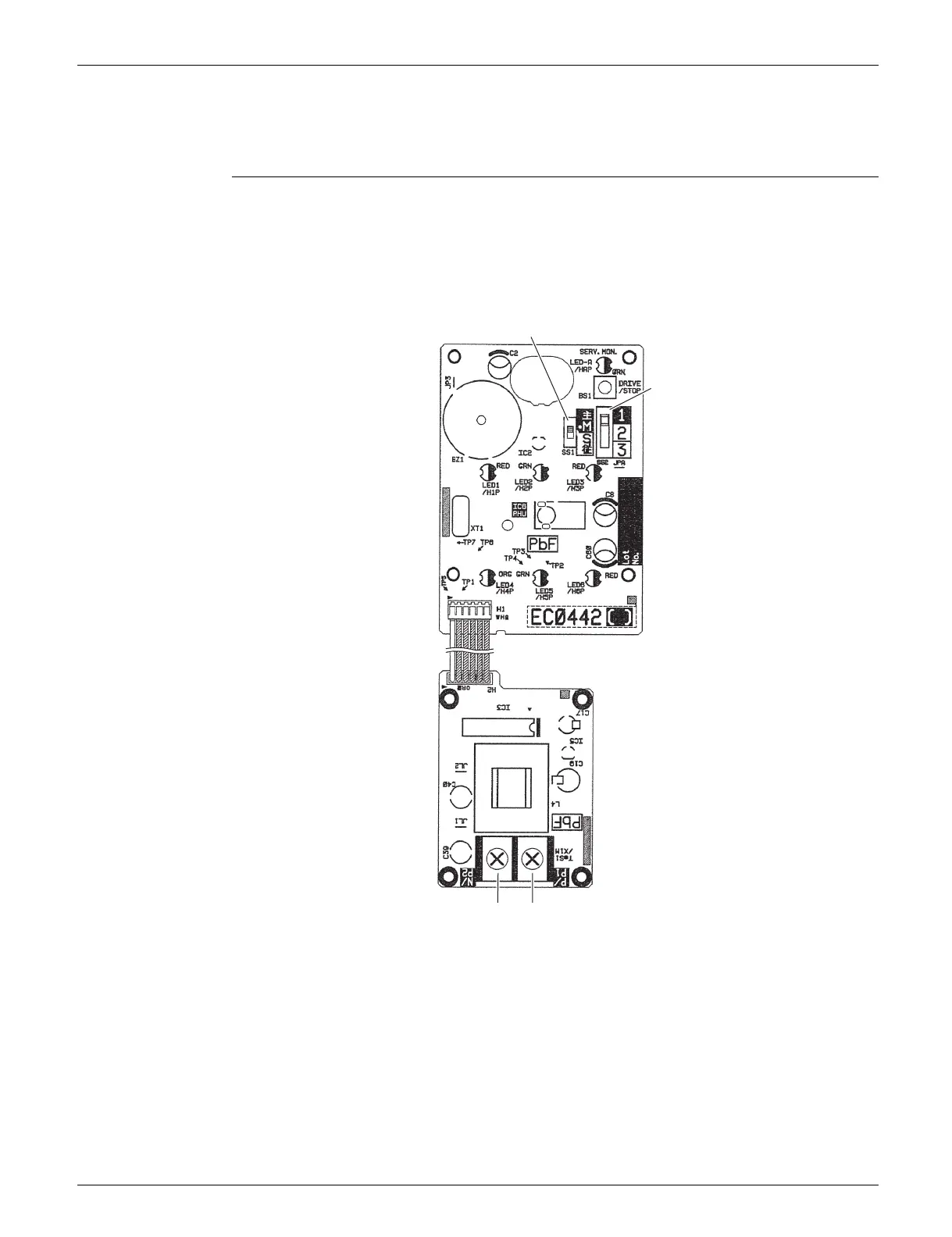

2.1 BRC082A43

Wired Remote

Controller PCB

1) SS1 MAIN/SUB setting switch

Refer to page 214 for details.

2) SS2 Address setting switch

Refer to page 214 for details.

3) P1, P2 Terminal for indoor unit control PCB (A1P)

SS1

P2 P1

3P156152-1

SS2
