SiUS091601EA Field Settings for Outdoor Unit
Part 7 Trial Operation and Field Settings 218
6.2 Drain Pan Heater
When attaching the drain pan heater
1. Attach the drain pan heater in accordance with the installation manual included with the drain
pan heater.
2. Turn on SW6-1 on the PCB.

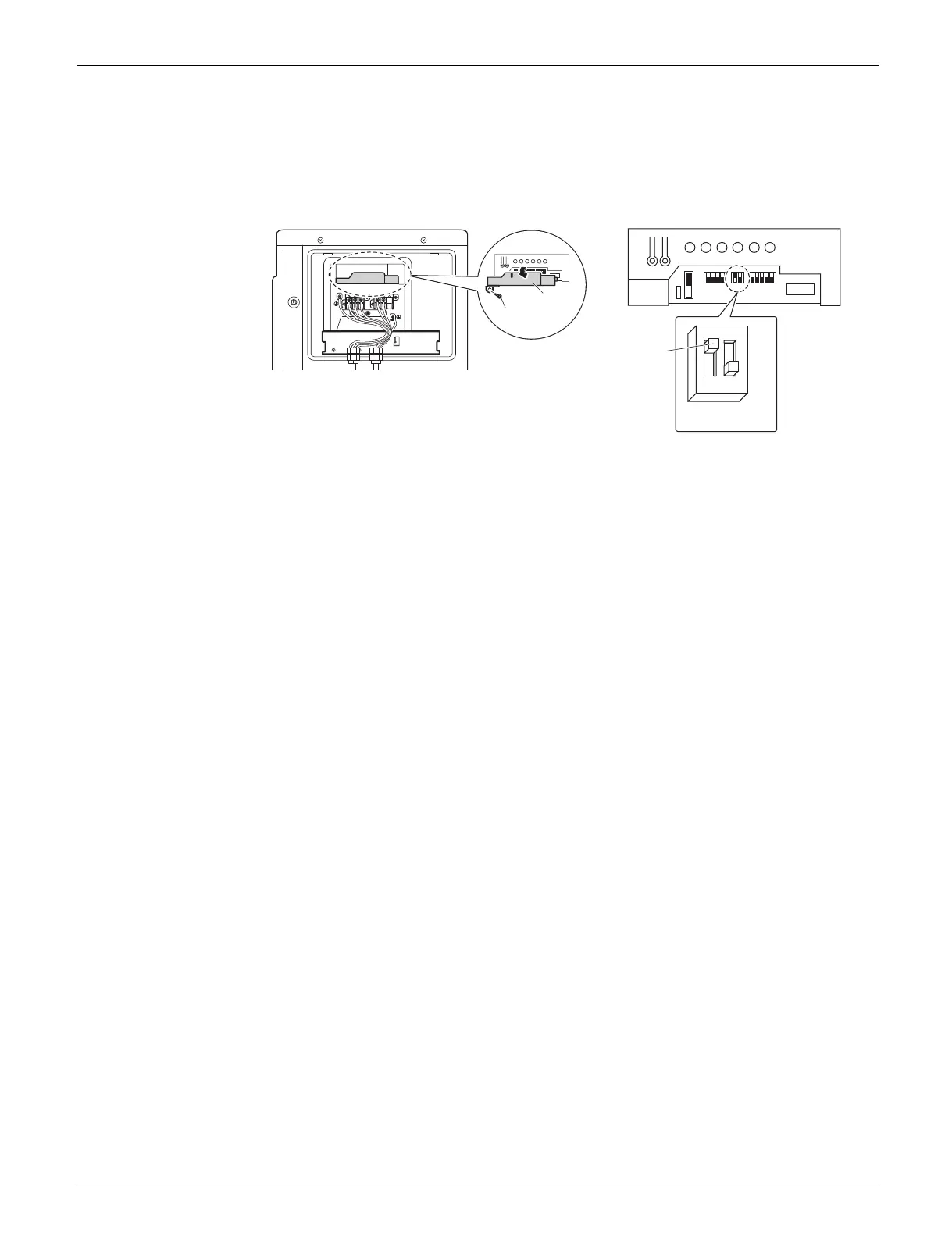

R7000288
PCB
HEAT
COOL
4
3
2
1
6
5
E
D
C
B
A
ON
OFF
6
5
SW6
12
Turn on switch 1
Screw
Remove
the switch
cover
