Daikin FDMQ-R Series Service Manual

SiUS091601EA Indoor Unit
Part 3 Printed Circuit Board Connector Wiring Diagram 22
1. Indoor Unit
1.1 FTX09/12NMVJU

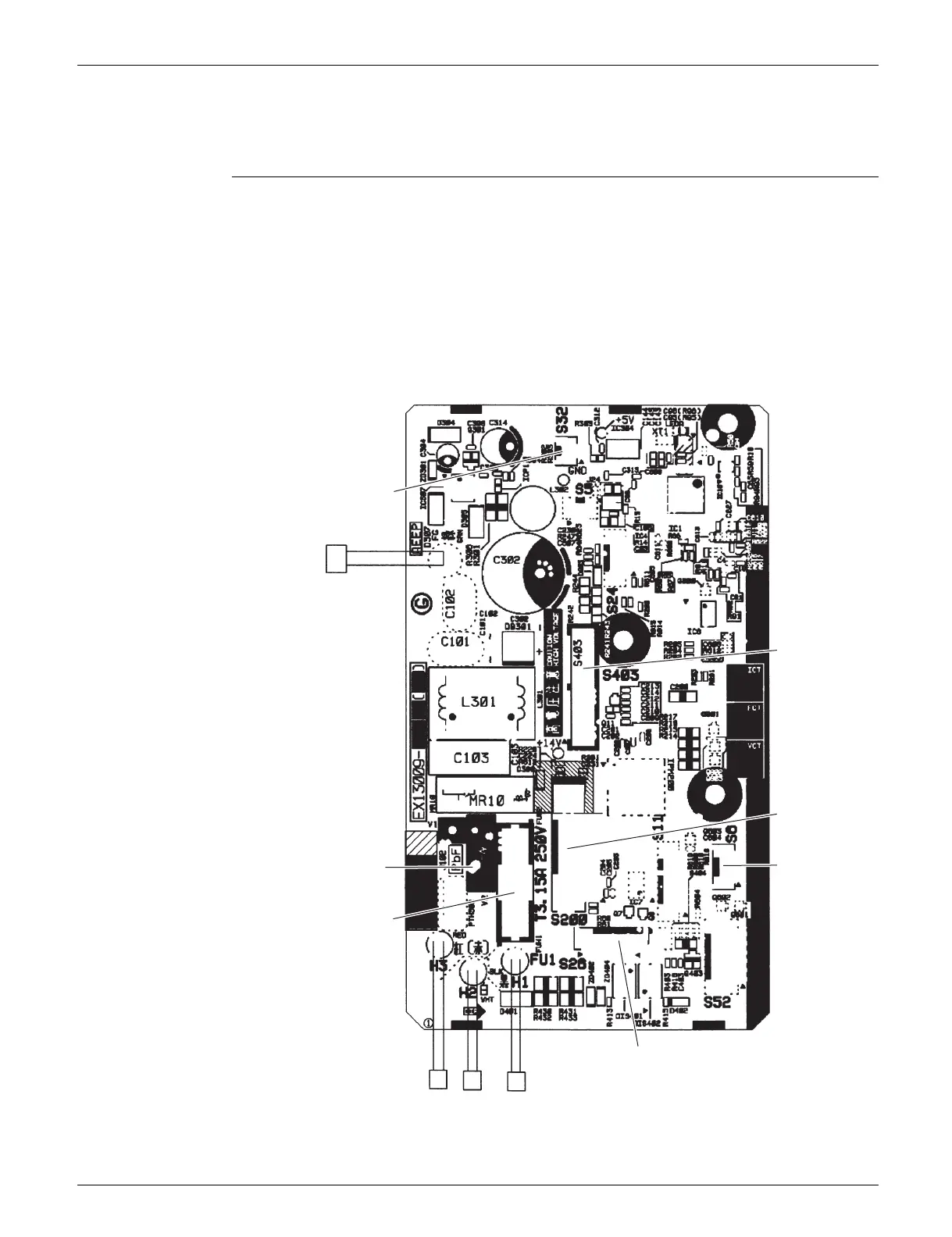

Control PCB
(PCB1)
1) S6 Connector for swing motor (horizontal blade)
2) S26 Connector for display/signal receiver PCB (PCB2)
3) S32 Connector for indoor heat exchanger thermistor (R2T)
4) S200 Connector for DC fan motor
5) S403 Connector for adaptor PCB (option)
6) H1, H2, H3, FG Connector for terminal strip
7) FU1 Fuse (3.15 A, 250 V)
8) V2 Varistor
FG
S32
S26
H3 H2 H1
S6
S200
2P399175-9
FU1
V2
S403
