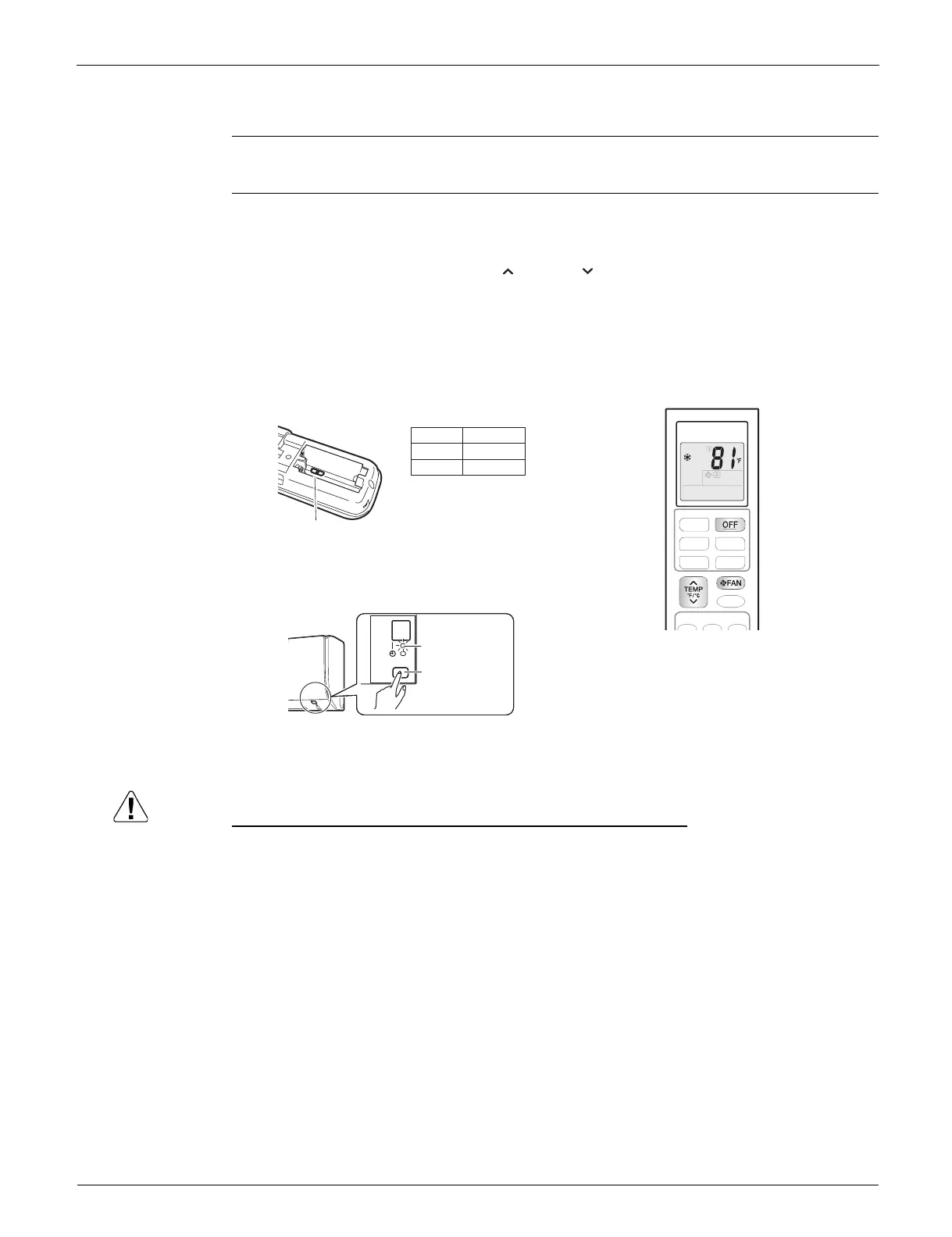

4.2 When 2 Units are Installed in 1 Room
Outline When 2 indoor units are installed in 1 room, 1 of the 2 indoor units and the corresponding wireless
remote controller can be set for different address.
FTX09/12/15NMV
JU
1. Remove the battery cover of the remote controller.
2. Cut the address jumper.
3. Press the center of TEMP button and OFF switch on the remote controller at the same time.
4. Select A (address setting) with TEMP or TEMP button.
5. Press FAN button to enter the address setting mode.
The indoor unit operation lamp blinks for 1 minute.
6. Press indoor unit ON/OFF switch while the operation lamp is blinking.
7. Press FAN button on the remote controller for 5 seconds to return to the normal mode.
Replace the remote controller if you cut a jumper unintentionally
.
Jumpers are necessary for electronic circuit. Improper operation may occur if you cut any of them.
Wireless Remote Controller
R7000282
R7000281
Indoor Unit
R7000283
Address
EXIST
Jumper
CUT
1
2
Jumper
ON/OFF
OPERATION lamp
Indoor unit
ON/OFF switch
