Daikin FDMQ-R Series Service Manual

SiUS091601EA Control Specification
Part 4 Functions and Control 86

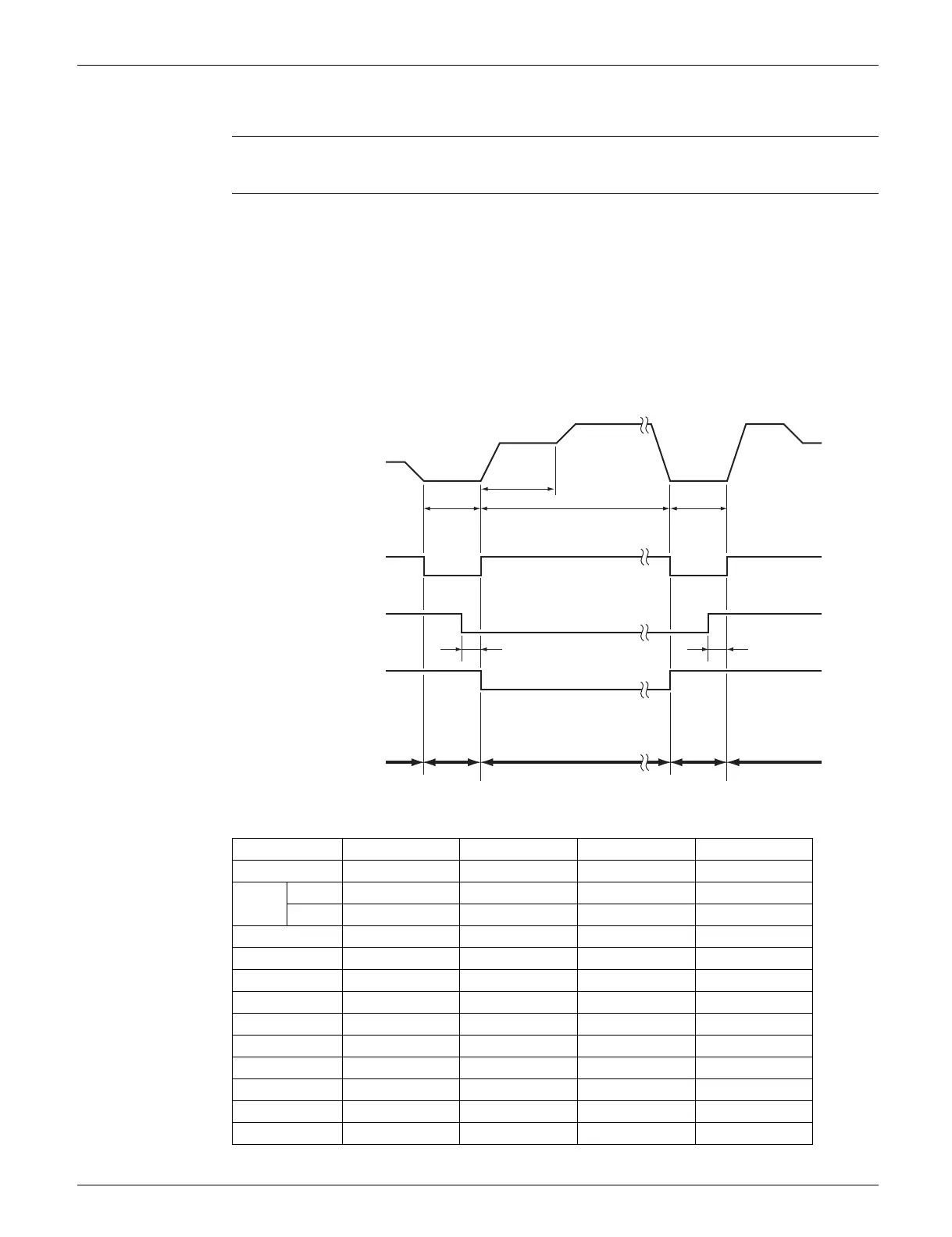

5.10 Defrost Control
Outline Defrosting is carried out by the cooling cycle (reverse cycle). The defrosting time or outdoor heat
exchanger temperature must be more than a certain value to finish defrosting.
Details Conditions for Starting Defrost
 The starting conditions are determined with the outdoor temperature and the outdoor heat
exchanger temperature.
 The system is in heating operation.
 The compressor operates for 6 minutes.
 More than A minutes (depending on the duration of the previous defrost control) of accumulated
time have passed since the start of the operation, or ending the previous defrosting.
Conditions for Canceling Defrost
The judgment is made with the outdoor heat exchanger temperature (B).
09 class 12 class 15 class 18/24 class
A (minute) 20 ~ 25 20 ~ 25 44 15 ~ 25
B (°C) 2 ~ 20 2 ~ 20 6 ~ 12 4 ~ 12
(°F) 35.6 ~ 68.0 35.6 ~ 68.0 42.8 ~ 86.0 42.8 ~ 86.0
C (Hz) 64404848
D (Hz) 64407054
E (seconds) 40 40 60 60
F (seconds) 60 60 60 120
G (seconds) 510 510 340 340
H (seconds) 50 50 90 60
J (seconds) 8 8 5 8
K (pulse) 400 400 450 450
L (pulse) 300 300 300 ~ 450 400
M (pulse) 350 350 200 450
Frequency
Compressor
Four way valve
Fan
ON
OFF
ON
OFF
ON
OFF
0 Hz 0 Hz
C Hz
D Hz
J sec.
PI control
8 sec.
H sec.
(R21661)
E sec.
F sec.
G sec.
L pulse zone
Electronic
expansion valve
opening
Normal
control
K pulse
zone
M pulse
zone
Starting
control
