Danfoss VLT AutomationDrive FC 302 Service Guide

3.6 Product Views

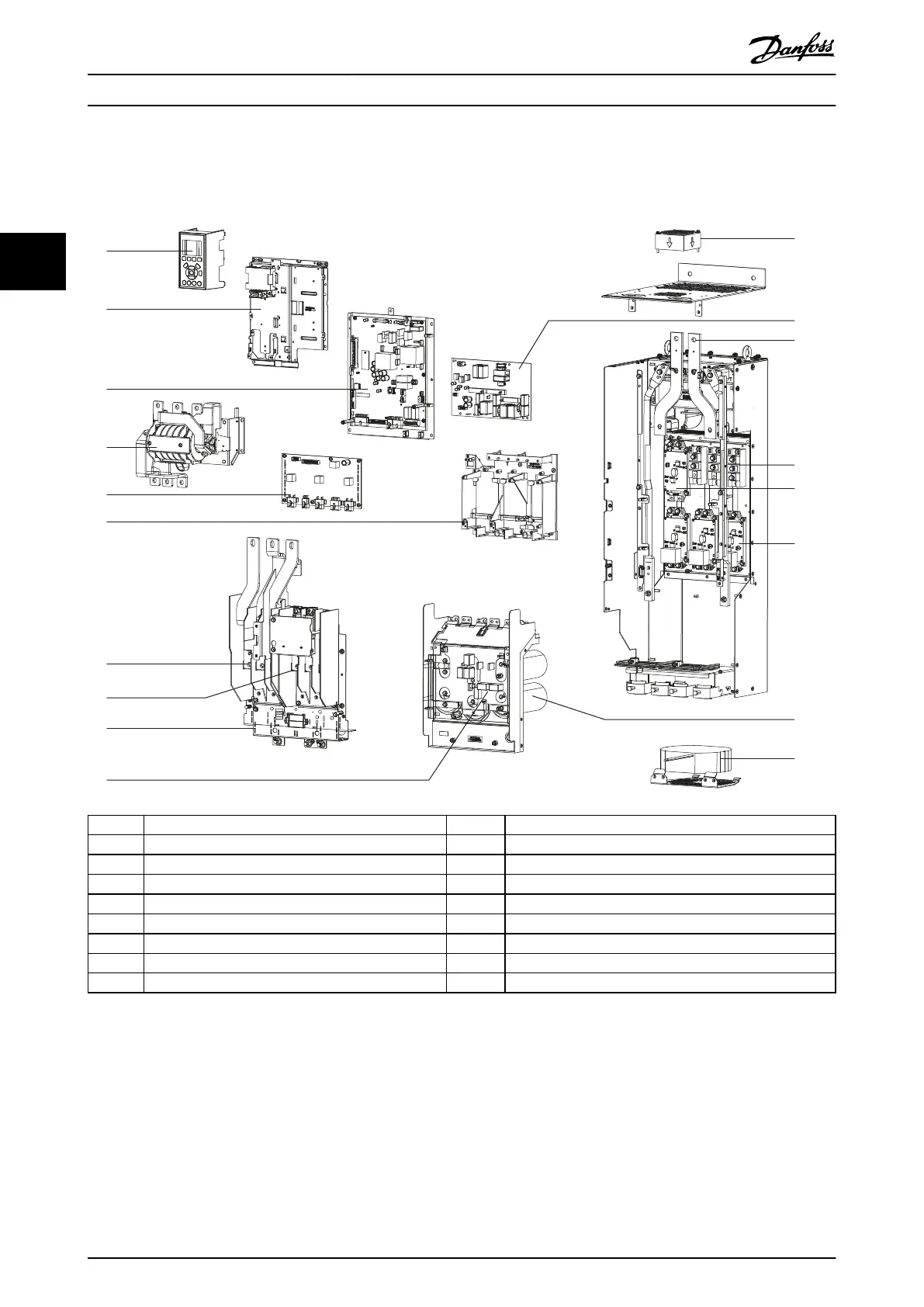

3.6.1 Exploded View of D1h/D3h/D5h/D6h/J8 Drive
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
e30bf866.11
1 Local control panel (LCP) and bracket 10 Balance/high frequency card
2 Control card and mounting plate 11 Top fan (IP20 only)
3 Power card and mounting plate 12 Inrush card
4 RFI lter (optional) 13 Regen/load share terminals (optional)
5 Gate drive card 14 SCR/diode modules
6 Gate drive card support bracket 15 Brake IGBT module (optional)
7 Mains input terminals 16 IGBT modules
8 Motor output terminals 17 Capacitor bank
9 Power terminal mounting plate 18 Heat sink fan
Illustration 3.2 Exploded View D3h Drive (D1h/D5h/D6h/J8 Drives are Similar).
Product Overview
VLT
®
FC Series, D1h–D8h, Da2/Db2/Da4/Db4, E1h–E4h, J8/J9
22 Danfoss A/S © 02/2019 All rights reserved. MG94A502
33

Danfoss VLT AutomationDrive FC 302 Specifications

General

Category	DC Drives
Control Method	Flux Vector Control
Communication Options	CANopen, PROFIBUS
Cooling	Forced convection
Enclosure	IP20, IP21, IP55, IP66
Protection Class/Rating	IP20
Protection Features	Overvoltage, Undervoltage, Overcurrent, Overtemperature, Short Circuit
Approvals	CE, UL, cUL
Ambient Temperature	-10°C to +50°C
Storage Temperature	-40°C to +70°C
Relative Humidity	5% to 95% (non-condensing)
Output Voltage	0 V to Input Voltage
