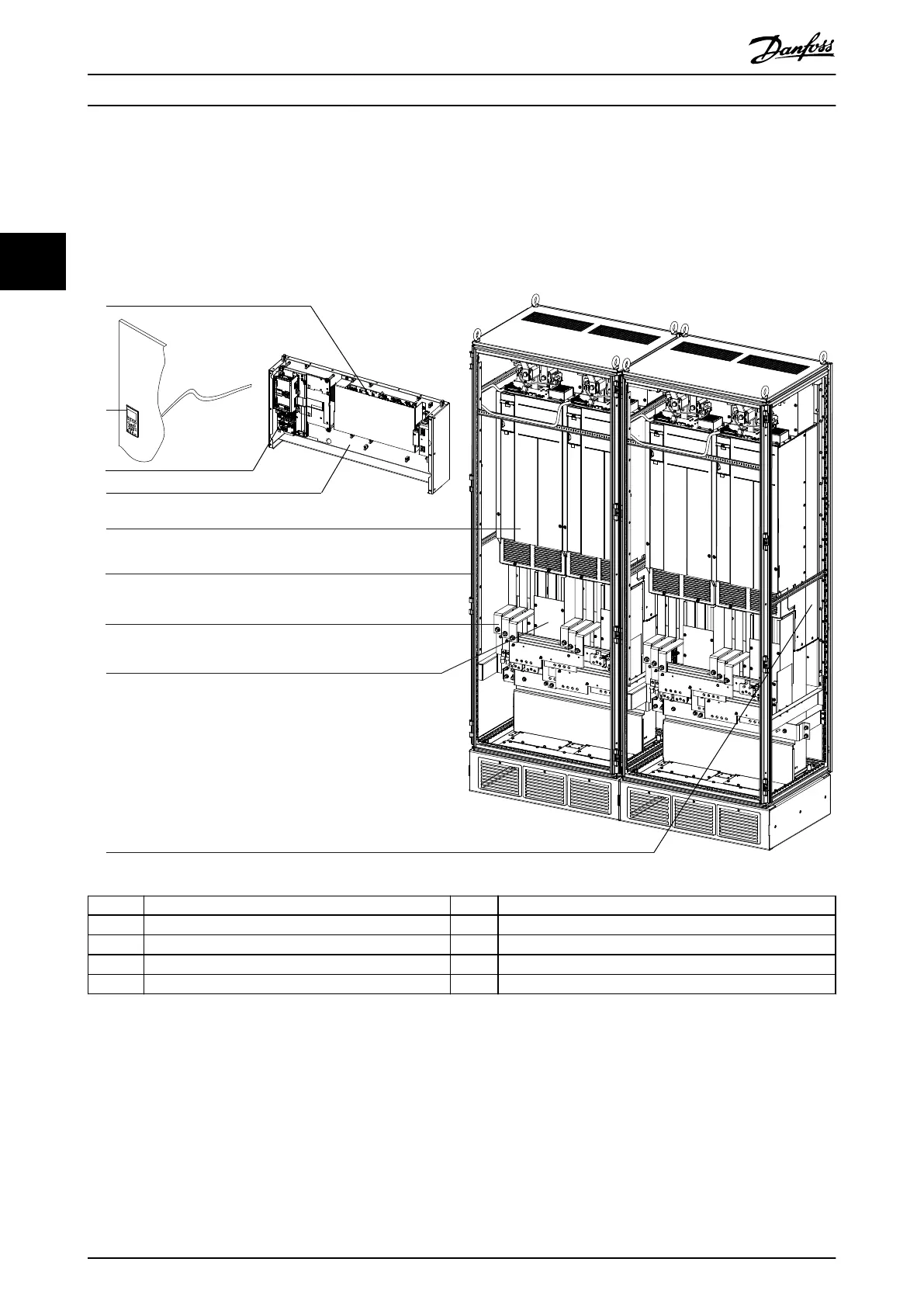

3.6.3 Exploded View of Multi-Drive System
This example of a 4-module system is composed of a control shelf and 4 VLT
®
Parallel Drive Modules in 2 side-by-side
enclosures. The control shelf attaches to the enclosure and holds the LCP and control card, as well as the MDCIC and control
terminals. Each module connects to the control shelf via a 44-pin ribbon cable. This example also includes an optional
busbar kit and optional cooling duct kits.
130BF896.10
2
3
5
4
6
1
7
9
8
1 MDCIC (behind cover plate) 6 Enclosure
2 LCP and cable 7 Busbar kit (optional)
3 Control card 8 EMC Shield
4 Control shelf 9 Cooling kit (optional)
5 Drive module
Illustration 3.4 Exploded View of 4-module System
Product Overview
VLT
®
FC Series, D1h–D8h, Da2/Db2/Da4/Db4, E1h–E4h, J8/J9
24 Danfoss A/S © 02/2019 All rights reserved. MG94A502
